MIDDLE DRIVE GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

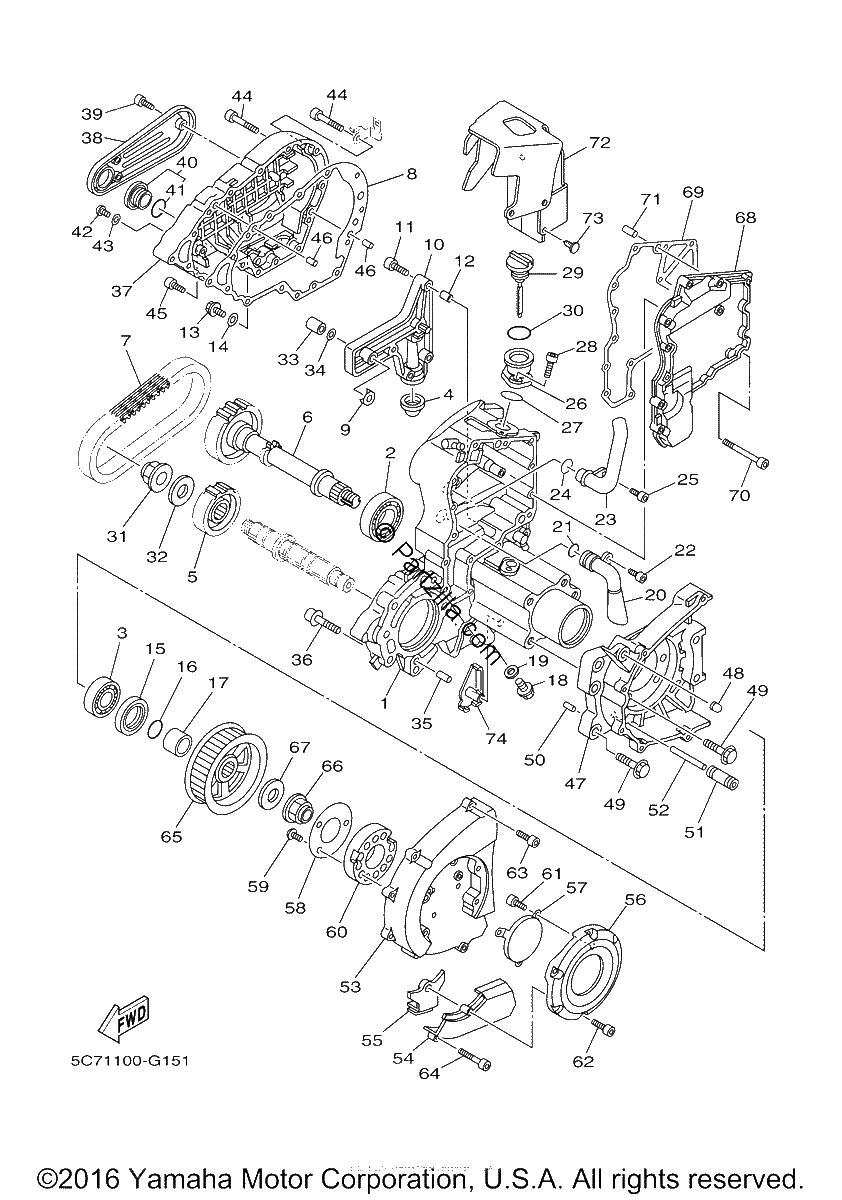

Diagrama de MIDDLE DRIVE GEAR

Repuestos

#1
1D7-17541-00-00
CASE, TRANSFER 1
$897.49¢448 744
1
#2
93306-20801-00
BEARING
$72.88¢36 438
1
#3
93306-28204-00
BEARING
$86.90¢43 450
1
#4
4WM-13286-00-00
CLEANER
$17.27¢8 638
1
#5
1D7-17682-00-00
SPROCKET, CHAIN DRIVE
$99.89¢49 944
1
#6
1D7-1755A-00-00
MIDDLE DRIVEN SHAFT ASSY
$603.26¢301 631
1
#7
4WM-16139-00-00
CHAIN, PRIMARY
$296.95¢148 475
1
#8
1D7-17929-00-00
GASKET 1
$35.88¢17 938
1
#9
1D7-17931-00-00
GASKET 2
$8.58¢4 288
1
#10
1D7-13100-00-00
OIL PUMP ASSY
$168.31¢84 156
1
#11
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#12
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#13
90149-08031-00
SCREW
$7.56¢3 781
1
#14
90430-08119-00
GASKET
$6.91¢3 456
1
#15
93102-42008-00
OIL SEAL
$23.61¢11 806
1
#16
93210-32001-00
O-RING
$6.45¢3 225
1
#17
90387-32005-00
COLLAR
$36.88¢18 438
1
#18
90340-14132-00
PLUG, STRAIGHT SCREW
$3.15¢1 575
1
#19
214-11198-01-00
GASKET
$3.23¢1 613
1
#20
1D7-13421-00-00
STRAINER 2
$96.58¢48 288
1
#21
93210-21631-00
O-RING
$7.65¢3 825
1
#22
91317-06016-00
BOLT
$1.46¢731
1
#23
1D7-13582-00-00
PIPE
$33.09¢16 544
1
#24
93210-21631-00
O-RING
$7.65¢3 825
1
#25
91317-06016-00
BOLT
$1.46¢731
1
#26
1D7-13132-00-00
JOINT
$69.45¢34 725
1
#27
93210-40745-00
O-RING
$13.03¢6 513
1
#28
90110-06179-00
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
1
#29
5PX-15362-10-00
PLUG, OIL LEVEL
$32.13¢16 063
1
#30
93210-35512-00
O-RING
$13.25¢6 625
1
#31
90179-22016-00
NUT
$26.02¢13 013
1
#32
90208-22004-00
WASHER, CONICAL SPRING
$24.28¢12 138
1
#33
90179-10013-00
NUT
$10.08¢5 038
1
#34
90430-10004-00
GASKET
$7.08¢3 538
1
#35
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#36
90110-10013-00
BOLT, HEXAGON SOCKET HEAD
$6.25¢3 125
1
#37
1D7-15779-10-00
COVER
$371.11¢185 556
1
#38
1D7-17821-10-00
COVER, HOUSING
$52.09¢26 044
1
#39
1D7-17076-10-00
COVER
$268.23¢134 113
1
#39
91314-05010-00
BOLT, HEXAGON SOCKET HEAD
$2.80¢1 400
1
#40
90340-20005-00
PLUG, STRAIGHT SCREW
$29.82¢14 913
1
#41
1D7-176F4-09-00
O-RING
$7.95¢3 975
1
#42
92014-06010-00
BOLT, BUTTON HEAD
$6.29¢3 144
1
#43
90430-06016-00
GASKET
$7.35¢3 675
1
#44
91314-06050-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#45
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#46
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#47
1D7-17613-00-00
STAY
$207.47¢103 738
1
#48
5PX-17654-00-00
SPACER 1
$8.92¢4 462
1
#49
95814-12050-00
BOLT, FLANGE
$5.99¢2 994
1
#50
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#51
4WM-17653-00-00
SLIDER
$8.16¢4 081
1
#52
93606-76002-00
PIN, DOWEL
$5.15¢2 575
1
#54
1D7-17662-10-00
PLATE, STAY
$125.56¢62 781
1
#55
1D7-15486-00-00
GROMMET
$14.09¢7 044
1
#56
1D7-17665-10-00
PLATE 1
$150.66¢75 331
1
#57
1D7-17675-10-00
PLATE 2
$19.19¢9 594
1
#58
1D7-17672-00-00
PLATE, STAY
$14.28¢7 138
1
#59
90149-06081-00
SCREW
$7.34¢3 669
1
#60
1D7-17655-00-00
DAMPER, SLIDER
$36.95¢18 475
1
#61
91314-05010-00
BOLT, HEXAGON SOCKET HEAD
$2.80¢1 400
1
#62
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#63
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#64
91314-06050-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#65
1D7-17651-00-00
PULLEY, BELT
$610.41¢305 206
1
#66
90179-22016-00
NUT
$26.02¢13 013
1
#67
90208-22004-00
WASHER, CONICAL SPRING
$24.28¢12 138
1
#68
1D7-17538-00-00
CAP, HOUSING
$127.67¢63 838
1
#69
1D7-17933-00-00
GASKET,4
$29.93¢14 963
1
#70
91317-06025-00
BOLT
$2.44¢1 219
1
#71
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#72
5C7-1763A-00-00
PLATE, CAP
$111.15¢55 575
1
#73
90269-07005-00
RIVET
$7.84¢3 919
1
#74
5PX-17446-00-00
PLATE
$14.51¢7 256
1
