ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

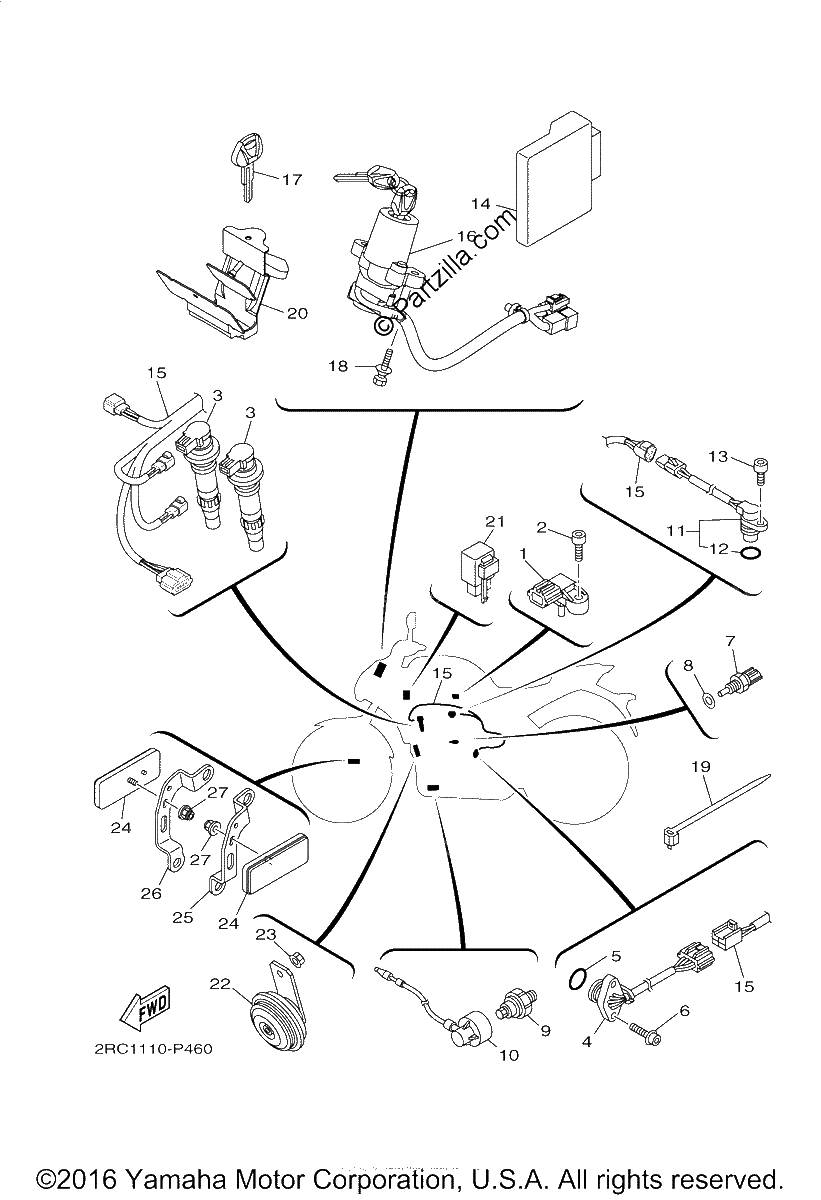

Diagrama de ELECTRICAL 2

Repuestos

#1
1WS-82380-00-00
Sensor, Pressure
$187.39¢93 696
1
#2
91317-05020-00
bolt
$2.71¢1 357
1
#3
1WS-82310-00-00
IGNITION COIL ASSY
$104.40¢52 198
1
#4
1WS-82540-00-00
NEUTRAL SWITCH ASS
$70.46¢35 230
1
#5
93210-21001-00
O-RING
$5.23¢2 616
1
#6
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#7
4P9-83591-00-00
THERMO UNIT
$31.65¢15 824
1
#8
90430-10004-00
GASKET
$6.51¢3 254
1
#9
1WS-82504-00-00
OIL PRESSURE SWITC
$66.99¢33 494
1
#10
1WS-81315-00-00
LEAD WIRE ASSY
$18.24¢9 119
1
#11
1WS-83755-00-00
SENSOR, SPEED
$120.96¢60 479
1
#12
4D9-81168-00-00
O-RING
$4.74¢2 369
1
#13
91312-06016-00
BOLT
$5.37¢2 685
1
#14
2RC-8591A-00-00
ENGINE CONTROL UNIT ASSY
$745.19¢372 594
1
#15
1WS-82309-00-00
WIRE, SUB LEAD
$147.27¢73 634
1
#16
2RC-82501-00-00
MAIN SWITCH STEERI
$177.78¢88 889
1
#17
4BH-82511-09-00
BLANK KEY | AP
$26.78¢13 392
1
#18
90109-08196-00
BOLT
$6.76¢3 381
1
#19
437-83936-11-00
BAND, SWITCH CORD
$3.92¢1 961
1
#20
2RC-81662-00-00
COVER, CONNECTER
$27.82¢13 909
1
#21
5C4-83350-00-00
FLASHER RELAY ASSY
$67.48¢33 741
1
#22
1WS-83371-00-00
HORN
$59.50¢29 751
1
#23
95707-06500-00
NUT, FLANGE
$0.86¢431
1
#24
11H-85110-01-00
REFLECTOR ASSY
$22.93¢11 466
1
#25
1WS-85112-00-00
BRACKET, REFLECTOR
$34.63¢17 313
1
#26
1WS-85122-00-00
BRACKET, REFLECTOR
$28.95¢14 473
1
#27
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
