ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

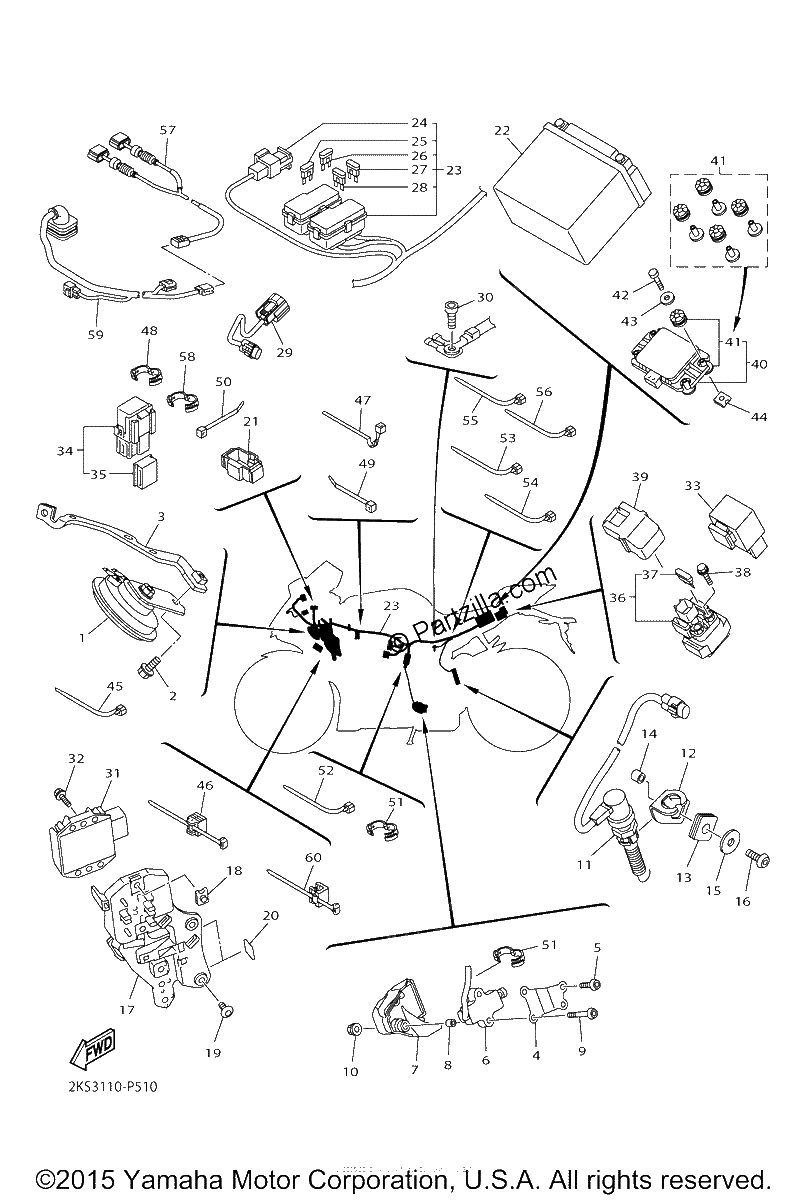

Diagrama de ELECTRICAL 2

Repuestos

#1
2CR-83371-00-00
HORN
$28.17¢14 087
1
#2
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#3
2CR-23377-00-00
BRACKET, HORN
$13.96¢6 981
1
#4
14B-27961-00-00
BRACKET, SENSOR 1
$10.89¢5 444
1
#5
92012-05016-00
BOLT, BUTTON HEAD
$7.34¢3 669
1
#6
2CR-82566-00-00
SWITCH, SIDE STAND
$95.36¢47 681
1
#7
2CR-27406-00-00
COVER ASSY
$26.76¢13 381
1
#8
90387-05025-00
COLLAR
$6.15¢3 075
1
#9
92012-05030-00
BOLT, BUTTON HEAD
$6.19¢3 094
1
#10
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#11
2CR-82530-00-00
STOP SWITCH ASSY
$48.01¢24 006
1
#12
2CR-2144G-00-00
STAY, STOP SWITCH
$5.96¢2 981
1
#13
90480-12607-00
GROMMET
$10.18¢5 088
1
#14
90387-06023-00
COLLAR
$9.13¢4 563
1
#15
90201-06380-00
WASHER PLAIN
$0.69¢344
1
#16
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
1
#17
2CR-2836H-00-00
BRACKET 5
$22.31¢11 156
1
#18
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#19
90111-06095-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#20
13S-21649-00-00
DAMPER
$7.86¢3 931
1
#21
1RC-82544-00-00
CLAMP
$7.64¢3 819
1
#22
YTZ-7SHE0-00-00
YTZ7S HE YUASA BATT
No Disponible
1
#23
2KS-82590-10-00
WIRE HARNESS ASSY
$1408.74¢704 369
1
#24
5JW-82151-10-00
FUSE (50A)
$17.01¢8 506
1
#25
5JJ-82151-80-00
FUSE (2A-BL)
$8.43¢4 213
1
#26
5JJ-82151-00-00
FUSE (7.5A-BL)
$7.08¢3 538
1
#27
67F-82151-50-00
FUSE (15A)
$4.44¢2 219
1
#28
67F-82151-40-00
FUSE (10A)
$7.75¢3 875
1
#29
2CR-82509-00-00
WIRE, SUB LEAD
$23.03¢11 513
1
#30
91317-06012-00
BOLT
$7.34¢3 669
1
#31
2CR-81960-00-00
RECTIFIER REGULATOR ASSY
$178.46¢89 231
1
#32
90105-06148-00
Bolt, Flange
$7.41¢3 706
1
#33
5VK-81950-30-00
RELAY ASSY (5VK-30)
$63.94¢31 969
1
#34
1ST-81950-00-00
RELAY ASSY (1ST-00)
$17.80¢8 900
1
#35
5JJ-81952-00-00
HOLDER, RELAY
$9.46¢4 731
1
#36
2CR-81940-00-00
STARTER RELAY ASSY
$63.35¢31 675
1
#37
1AE-82151-00-00
FUSE (30A-BL)
$7.41¢3 706
1
#38
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#39
5SL-82119-10-00
COVER, LEAD WIRE
$4.84¢2 419
1
#39
90464-13077-00
CLAMP
$7.94¢3 969
1
#40
2CR-8593A-00-00
INERTIAL MEASURE, UNIT ASSY
$1106.24¢553 119
1
#41
2CR-W8A8D-00-00
GROMMET AND COLLAR SET
$67.76¢33 881
1
#42
91312-04025-00
BOLT
$1.84¢919
1
#43
2CR-81162-00-00
WASHER, PLAIN
$1.55¢775
1
#44
90183-04039-00
NUT, SPRING
$7.03¢3 513
1
#45
25G-83936-01-00
BAND, SWITCH CORD
$4.91¢2 456
1
#46
90464-45003-00
CLAMP
$8.49¢4 244
1
#47
90464-07M40-00
CLAMP
$16.57¢8 288
1
#48
90464-16003-00
CLAMP
$7.46¢3 731
1
#49
1UA-82591-00-00
BAND
$4.91¢2 456
1
#50
1UA-82591-00-00
BAND
$4.91¢2 456
1
#51
90464-13227-00
Clamp
$7.88¢3 938
1
#52
90464-15195-00
CLAMP
$3.30¢1 650
1
#54
90464-13077-00
CLAMP
$7.94¢3 969
1
#55
90464-13077-00
CLAMP
$7.94¢3 969
1
#56
90464-13077-00
CLAMP
$7.94¢3 969
1
#57
2KS-82509-00-00
WIRE, SUB LEAD
$81.33¢40 663
1
#58
90464-16003-00
CLAMP
$7.46¢3 731
1
#59
2KS-82509-10-00
WIRE, SUB LEAD
$238.24¢119 119
1
#60
90464-45006-00
CLAMP
$7.69¢3 844
1
