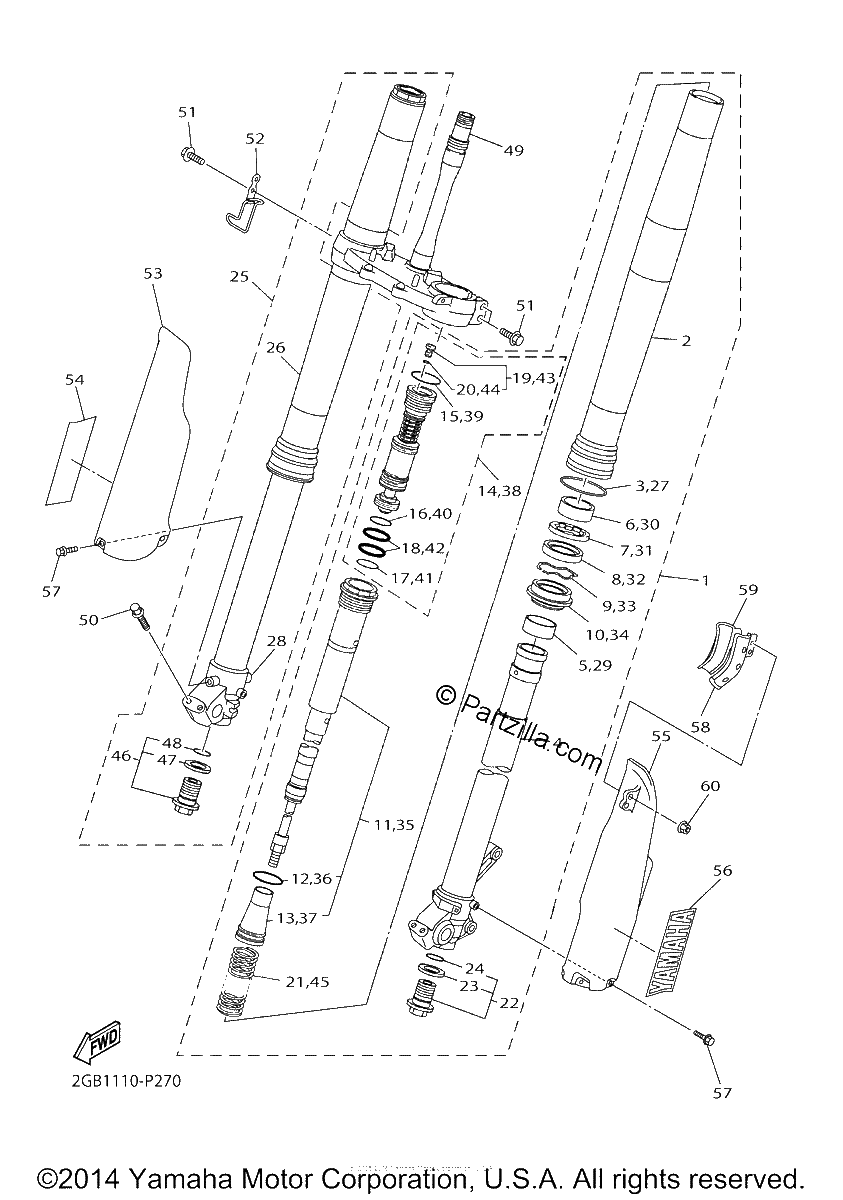

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1323.64¢661 819
#2
TUBE, OUTER
$822.24¢411 119
#3
RING, SNAP
$4.58¢2 289
#4
INNER TUBE COMP. 2
$558.49¢279 243
#5
PISTON, FRONT FORK
$22.67¢11 333
#6
METAL, SLIDE 1
$23.02¢11 511
#7
WASHER, OIL SEAL
$11.60¢5 802
#8
OIL SEAL
$24.97¢12 483
#9
RING, SNAP
$7.04¢3 519
#10
SEAL, DUST
$21.11¢10 557
#11
CYLINDER COMP., FRONT FORK
$693.44¢346 719
#12
O-RING
$3.51¢1 754
#13
SEAT, SPRING UPPER
$77.73¢38 864
#14
VALVE COMP.
$323.45¢161 724
#15
O-RING
$3.00¢1 501
#16
O-RING
$7.04¢3 519
#17
O-RING
$6.51¢3 254
#18
GASKET
$8.14¢4 071
#19
AIR VALVE COMP.
$21.98¢10 988
#20
O-RING
$3.00¢1 501
#21
SPRING, FRONT FORK
$107.02¢53 509
#22
BOLT, CAP
$75.81¢37 904
#23
GASKET
$10.43¢5 215
#24
GASKET
$4.25¢2 128
#25
FRONT FORK ASSY (R.H)
$1323.64¢661 819
#26
TUBE, OUTER
$822.24¢411 119
#27
RING, SNAP
$4.58¢2 289
#28
INNER TUBE COMP. 1
$402.59¢201 296
#29
PISTON, FRONT FORK
$22.67¢11 333
#30
METAL, SLIDE 1
$23.02¢11 511
#31
WASHER, OIL SEAL
$11.60¢5 802
#32
OIL SEAL
$24.97¢12 483
#33
RING, SNAP
$7.04¢3 519
#34
SEAL, DUST
$21.11¢10 557
#35
CYLINDER COMP., FRONT FORK
$693.44¢346 719
#36
O-RING
$3.51¢1 754
#37
SEAT, SPRING UPPER
$77.73¢38 864
#38
VALVE COMP.
$323.45¢161 724
#39
O-RING
$3.00¢1 501
#39
PROTECTOR 2
$15.21¢7 607
#40
O-RING
$7.04¢3 519
#41
O-RING
$6.51¢3 254
#42
GASKET
$8.14¢4 071
#43
AIR VALVE COMP.
$21.98¢10 988
#44
O-RING
$3.00¢1 501
#45
SPRING, FRONT FORK
$107.02¢53 509
#46
BOLT, CAP
$75.81¢37 904
#47
GASKET
$10.43¢5 215
#48
GASKET
$4.25¢2 128
#49
UNDER BRACKET COMP.
$557.74¢278 869
#50
BOLT, FLANGE
$6.43¢3 214
#51
BOLT, FLANGE
$6.32¢3 162
#52
GUIDE
$25.63¢12 817
#54
EMBLEM, YAMAHA
$9.04¢4 520
#55
PROTECTOR 1
$18.55¢9 275
#56
EMBLEM, YAMAHA
$9.04¢4 520
#57
BOLT 2
$5.84¢2 921
#58
CLAMP
$5.21¢2 605
#59
CLAMP
$11.97¢5 986
#60
NUT, FLANGE
$2.24¢1 121
