ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

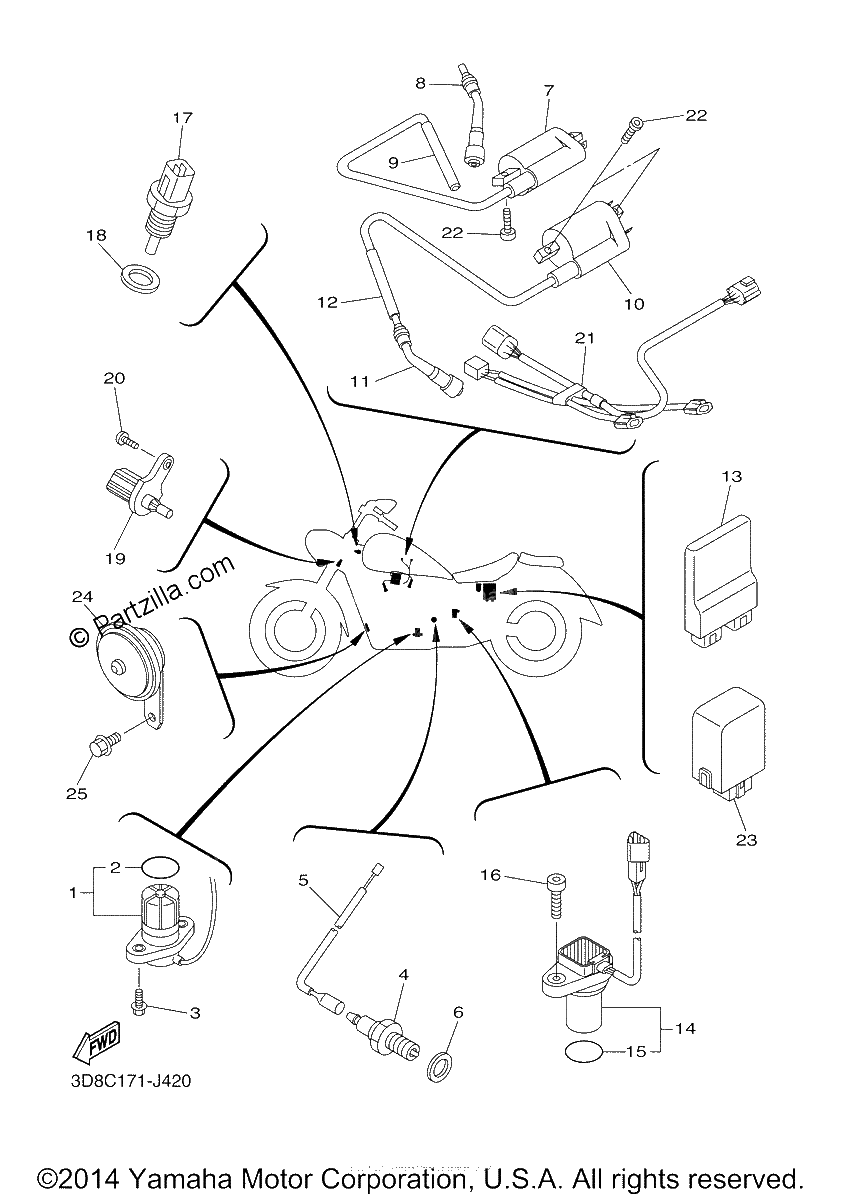

Diagrama de ELECTRICAL 1

Repuestos

#1
3D8-85720-00-00
OIL LEVEL GAUGE ASSY
$119.98¢59 990
1
#2
5VY-8A8E0-00-00
O-RING
$11.99¢5 997
1
#3
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#4
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$57.82¢28 911
1
#5
3D8-82509-00-00
WIRE, SUB LEAD
$5.78¢2 892
1
#6
90430-10148-00
Gasket
$5.21¢2 605
1
#7
3D8-82310-00-00
IGNITION COIL ASSY
$59.67¢29 837
1
#8
3D8-82370-00-00
PLUG CAP ASSY
$113.84¢56 919
1
#9
5RU-82353-00-00
HOSE
$5.17¢2 588
1
#10
3D8-82310-10-00
IGNITION COIL ASSY
$56.56¢28 278
1
#11
3D8-82370-00-00
PLUG CAP ASSY
$113.84¢56 919
1
#12
5RU-82353-00-00
HOSE
$5.17¢2 588
1
#13
3D8-8591A-20-00
ENGINE CONTROL UNIT ASSY
$1052.09¢526 045
1
#14
3D8-83755-00-00
SENSOR, SPEED
$142.53¢71 265
1
#15
4D9-81168-00-00
O-RING
$4.74¢2 369
1
#16
91314-06016-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#17
8CC-85790-01-00
THERMOSENSOR ASSY
$97.93¢48 967
1
#18
90201-12790-00
WASHER, PLATE
$7.51¢3 755
1
#19
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$32.97¢16 485
1
#20
98517-05012-00
SCREW, PAN HEAD
$4.28¢2 139
1
#21
3D8-82509-20-00
WIRE, SUB LEAD
$85.44¢42 723
1
#22
91380-06016-00
BOLT
$5.69¢2 846
1
#23
3D8-83350-00-00
FLASHER RELAY ASSY
$116.02¢58 012
1
#24
3D8-83371-00-00
HORN
$71.50¢35 748
1
#25
90105-082A5-00
BOLT, FLANGE
$2.99¢1 495
1
