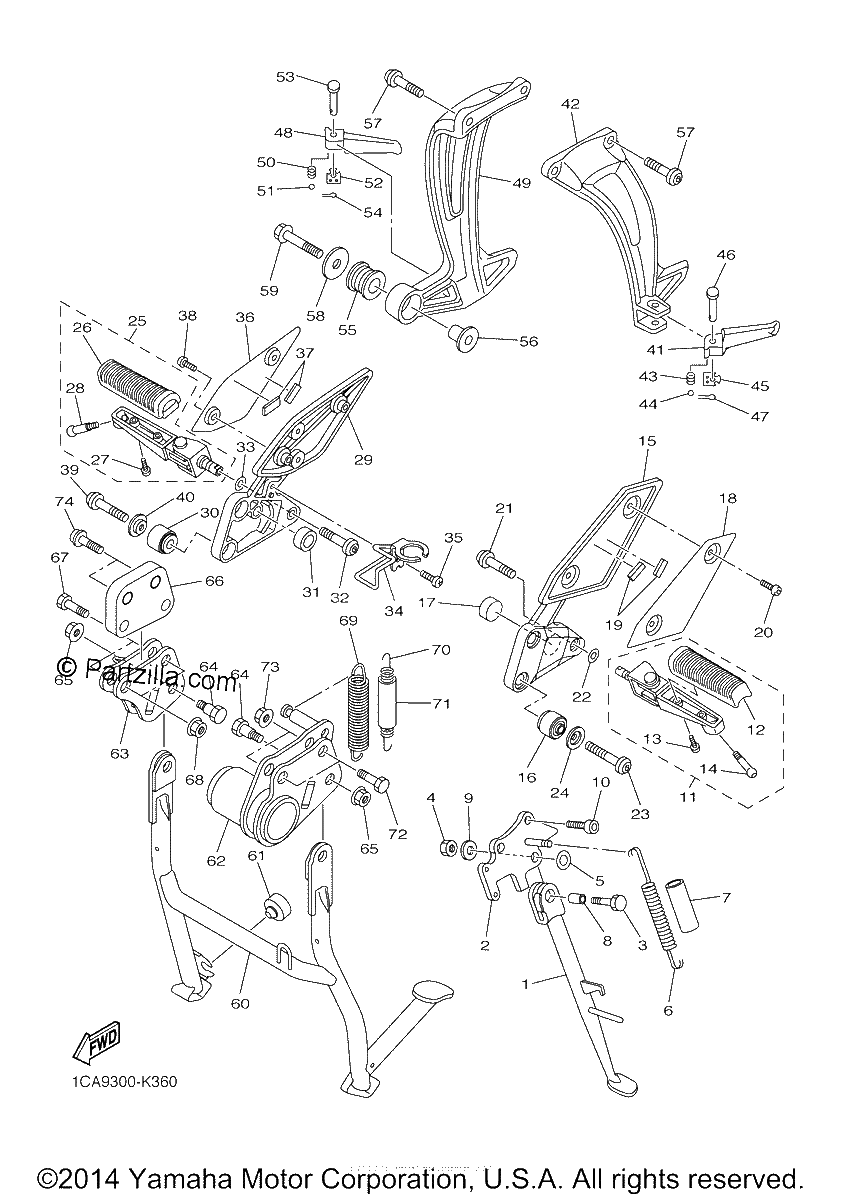

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$165.23¢82 616
#2
BRACKET, SIDE STAND
$82.96¢41 481
#3
bolt
$8.50¢4 249
#4
NUT, SELF-LOCKING
$6.16¢3 082
#5
WASHER, PLATE
$8.03¢4 013
#6
SPRING, TENSION
$13.02¢6 509
#7
HOSE (L60)
$5.61¢2 806
#8
COLLAR
$22.08¢11 040
#9
WASHER, plate
$3.91¢1 955
#10
BOLT
$3.10¢1 553
#11
FRONT FOOTREST ASSY (LEFT)
$77.76¢38 882
#12
COVER, FOOTREST
$29.52¢14 760
#13
SCREW, PAN HEAD
$8.04¢4 019
#14
BOLT
$6.52¢3 260
#15
BRACKET 2
$187.45¢93 725
#16
DAMPER, FOOTREST 2
$33.92¢16 963
#17
STOPPER, MAIN STAND
$7.23¢3 617
#18
COVER 1
$45.62¢22 810
#19
PLATE, DAMPER
$7.23¢3 617
#20
BOLT, BUTTON HEAD
$3.83¢1 915
#21
BOLT,HEX. SOCKET BUT
$3.27¢1 633
#22
WASHER, WAVE
$10.29¢5 146
#23
BOLT, HEXAGON SOCKET HEAD
$7.67¢3 835
#24
WASHER
$7.30¢3 651
#25
FRONT FOOTREST ASSY (RIGHT)
$75.68¢37 841
#26
COVER, FOOTREST
$29.52¢14 760
#27
SCREW, PAN HEAD
$8.04¢4 019
#28
BOLT
$6.52¢3 260
#29
BRACKET 3
$212.40¢106 202
#30
DAMPER, FOOTREST 2
$33.92¢16 963
#31
STOPPER, MAIN STAND
$7.23¢3 617
#32
BOLT,HEX. SOCKET BUT
$3.27¢1 633
#33
WASHER, WAVE
$10.29¢5 146
#34
STAY, STOP SWITCH
$20.90¢10 448
#35
BOLT, FLANGE
$5.30¢2 651
#36
COVER 2
$26.12¢13 058
#37
PLATE, DAMPER
$7.23¢3 617
#38
BOLT, BUTTON HEAD
$3.83¢1 915
#39
BOLT, HEXAGON SOCKET HEAD
$7.67¢3 835
#39
PIN, CLEVIS
$4.45¢2 225
#40
WASHER
$7.30¢3 651
#41
FOOTREST, REAR 1
$27.22¢13 610
#42
BRACKET 4
$269.36¢134 682
#43
SPRING, COMPRESSION
$3.51¢1 754
#44
BALL
$6.87¢3 433
#45
WASHER, SPECIAL
$7.35¢3 674
#46
PIN, CLEVIS
$4.45¢2 225
#47
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#48
FOOTREST, REAR 2
$27.29¢13 645
#49
BRACKET 5
$167.06¢83 530
#50
SPRING, COMPRESSION
$3.51¢1 754
#51
BALL
$6.87¢3 433
#52
WASHER, SPECIAL
$7.35¢3 674
#54
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#55
DAMPER, FOOTREST 2
$17.19¢8 596
#56
COLLAR
$12.81¢6 406
#57
BOLT
$2.08¢1 041
#58
WASHER, PLATE
$6.87¢3 433
#59
BOLT, FLANGE
$4.02¢2 012
#60
STAND, MAIN
$237.27¢118 634
#61
STOPPER, MAIN STAND
$6.36¢3 180
#62
BRACKET, MAIN STAND
$234.81¢117 404
#63
BRACKET, MAIN STAND 2
$81.34¢40 670
#64
BOLT
$9.12¢4 560
#65
NUT, U FLANGE
$2.51¢1 254
#66
BRACKET, ADAPTER 1
$49.78¢24 892
#67
BOLT
$3.76¢1 880
#68
NUT, U FLANGE
$2.51¢1 254
#69
SPRING, TENSION
$24.35¢12 173
#70
SPRING, TENSION
$11.83¢5 917
#71
HOSE
$5.96¢2 978
#72
BOLT
$3.76¢1 880
#73
NUT, U FLANGE
$2.51¢1 254
#74
BOLT, HEXAGON SOCKET
$10.61¢5 307
