SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

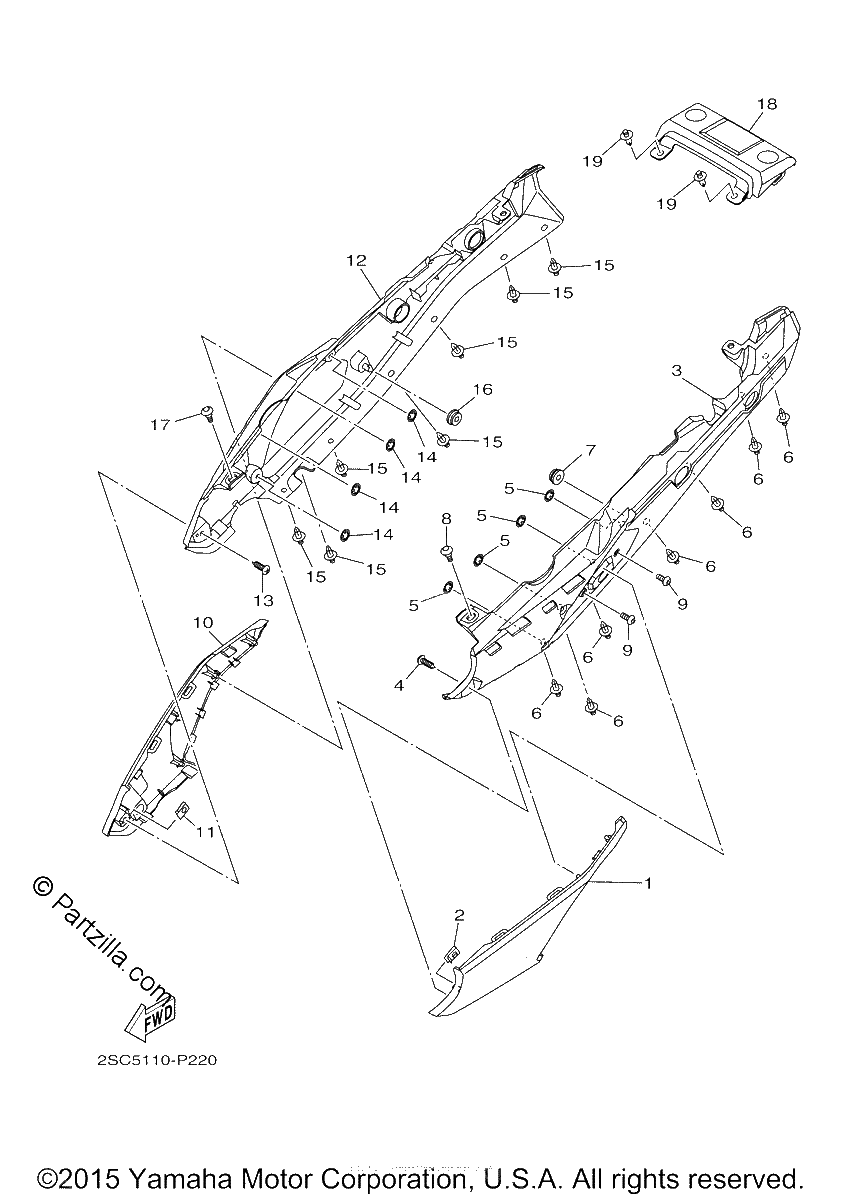

Diagrama de SIDE COVER

Repuestos

#0
2PP-21711-00-P1
COVER, SIDE 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$92.90¢46 450
1
#0
2PP-21721-00-P1
COVER, SIDE 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$92.90¢46 450
1
#1
2PP-21711-00-P0
COVER, SIDE 1 | UR FOR MNM3
$96.31¢48 156
1
#2
90183-05042-00
NUT, SPRING
$1.25¢625
1
#3
2PP-21731-00-00
COVER, SIDE 3
$91.42¢45 713
1
#4
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
1
#5
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#6
90269-07007-00
RIVET
$4.00¢2 000
1
#7
90480-13014-00
GROMMET
$8.16¢4 081
1
#8
90111-05045-00
BOLT,HEX. SOCKET BUT
$7.48¢3 738
1
#9
90149-06308-00
SCREW
$8.22¢4 113
1
#10
2PP-21721-00-P0
COVER, SIDE 2 | UR FOR MNM3
$92.90¢46 450
1
#11
90183-05042-00
NUT, SPRING
$1.25¢625
1
#12
2PP-21741-00-00
COVER, SIDE 4
$91.42¢45 713
1
#13
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
1
#14
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#15
90269-07007-00
RIVET
$4.00¢2 000
1
#16
90480-13014-00
GROMMET
$8.16¢4 081
1
#17
90111-05045-00
BOLT,HEX. SOCKET BUT
$7.48¢3 738
1
#18
2PP-2171A-00-00
COVER, TOP
$10.77¢5 387
1
#19
90269-07007-00
RIVET
$4.00¢2 000
1
