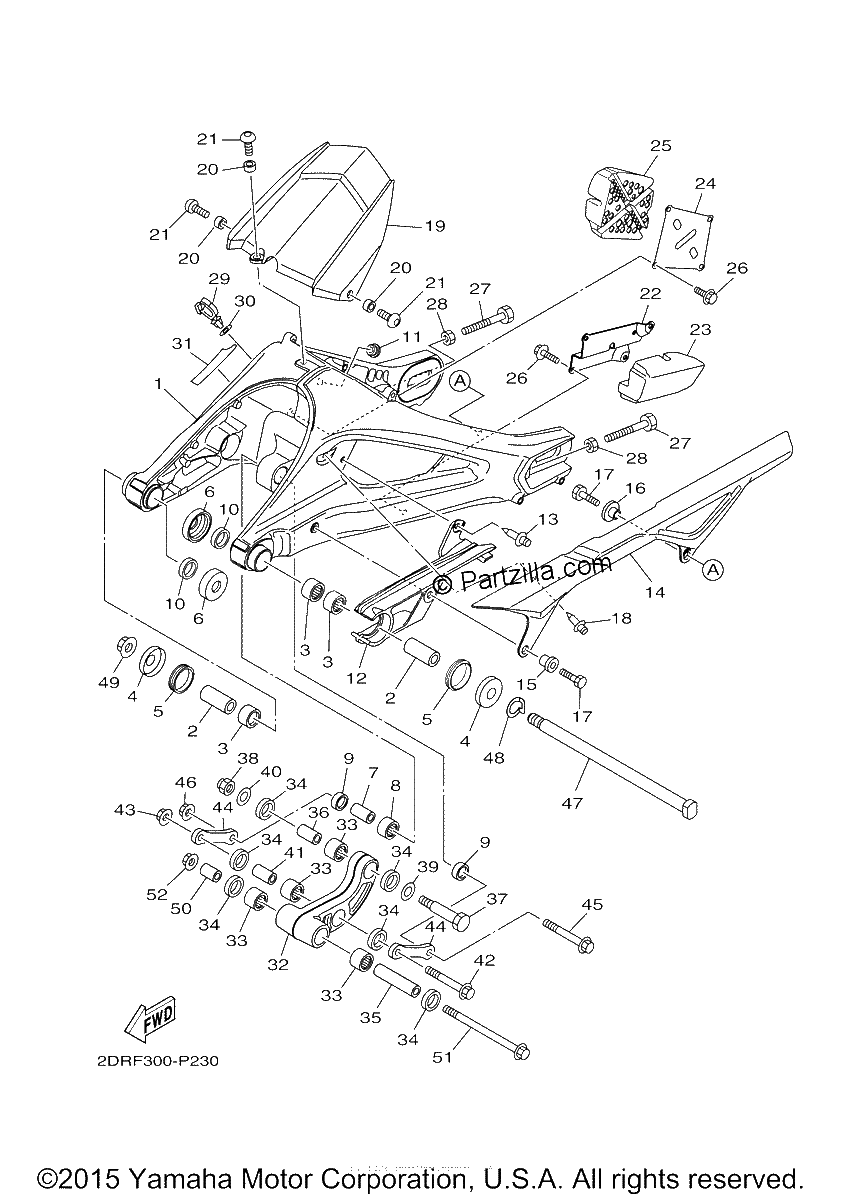

REAR ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP.
$979.79¢489 894
#2
BUSH, SOLID
$24.78¢12 391
#3
BEARING
$37.40¢18 699
#4
COVER
$15.65¢7 826
#5
OIL SEAL (35-41-8)
$13.78¢6 889
#6
COVER, THRUST 1
$14.34¢7 170
#7
COLLAR
$14.33¢7 165
#8
BEARING
$38.04¢19 021
#9
OIL SEAL
$7.38¢3 691
#10
OIL SEAL
$10.21¢5 106
#11
GROMMET
$6.76¢3 381
#12
SEAL, GUARD
$21.91¢10 954
#13
RIVET
$3.68¢1 840
#14
CASE, CHAIN
$22.61¢11 305
#15
COLLAR
$18.85¢9 424
#16
Collar
$5.86¢2 932
#17
BOLT
$2.08¢1 041
#18
RIVET
$3.68¢1 840
#19
REAR FENDER COMP.
$51.47¢25 737
#20
COLLAR
$5.93¢2 967
#21
BOLT, HEX. SOCKET BUTTON
$2.92¢1 461
#22
BRACKET 1
$15.12¢7 561
#23
DAMPER 1
$25.33¢12 667
#24
BRACKET 2
$11.83¢5 917
#25
DAMPER 2
$29.16¢14 582
#26
BOLT, FLANGE
$5.97¢2 984
#27
BOLT
$3.29¢1 644
#28
NUT
$3.51¢1 754
#29
CLAMP
$7.59¢3 795
#30
WASHER, PLATE
$5.22¢2 610
#31
SEAL 1
$8.66¢4 330
#32
ARM, RELAY
$131.78¢65 889
#33
BEARING
$38.04¢19 021
#34
OIL SEAL
$7.38¢3 691
#35
SPACER
$27.34¢13 668
#36
COLLAR
$12.21¢6 106
#37
BOLT
$8.07¢4 036
#38
NUT, U
$6.76¢3 381
#39
WASHER, PLATE
$3.68¢1 840
#40
WASHER, plate
$3.91¢1 955
#41
COLLAR
$14.33¢7 165
#42
BOLT, FLANGE
$5.03¢2 513
#43
NUT, U FLANGE
$2.51¢1 254
#44
ARM 1
$10.30¢5 152
#45
BOLT, FLANGE
$5.03¢2 513
#46
NUT, U FLANGE
$2.51¢1 254
#47
SHAFT, PIVOT
$92.21¢46 104
#48
WASHER, SPRING LOWER
$2.13¢1 064
#49
NUT, SELF-LOCKING
$11.14¢5 572
#50
COLLAR
$6.66¢3 329
#51
BOLT, FLANGE
$10.21¢5 106
#52
NUT, U FLANGE
$2.51¢1 254
