COWLING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

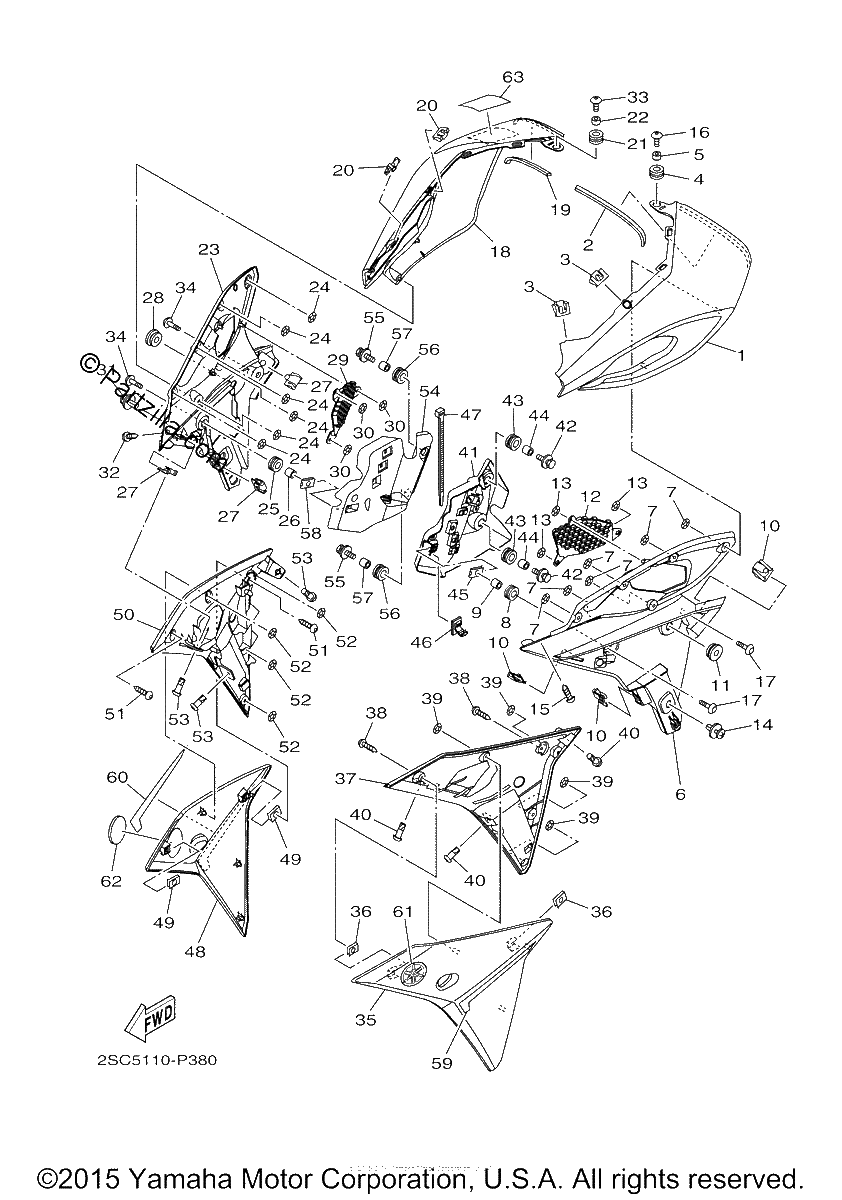

Diagrama de COWLING

Repuestos

#0
2PP-28219-00-P1
COVER 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$126.24¢63 118
1
#0
2SC-28392-10-00
GRAPHIC 2 | Use for Color Black Metallic X ( SMX / 0903 )
$16.55¢8 274
1
#0
2SC-28391-10-00
GRAPHIC 1 | Use for Color Black Metallic X ( SMX / 0903 )
$18.81¢9 407
1
#0
2PP-28229-00-P1
COVER 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$111.37¢55 683
1
#1
2PP-28219-00-P0
COVER 1 | UR FOR MNM3
$111.37¢55 683
1
#2
2C0-2174X-00-00
DAMPER
$1.83¢914
1
#3
5PW-2177L-01-00
PLATE, SPRING
$6.82¢3 410
1
#4
90480-13018-00
GROMMET
$6.83¢3 415
1
#5
90387-0611W-00
COLLAR
$3.48¢1 742
1
#6
2PP-2836K-00-00
PANEL, INNER 1
$247.72¢123 861
1
#7
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#8
90480-13018-00
GROMMET
$6.83¢3 415
1
#9
90387-0611W-00
COLLAR
$3.48¢1 742
1
#10
5PW-2177L-01-00
PLATE, SPRING
$6.82¢3 410
1
#11
90480-13014-00
GROMMET
$7.51¢3 755
1
#12
2PP-2837N-00-00
GRILL, AIR INTAKE 1
$10.29¢5 146
1
#13
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#14
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#15
90167-05079-00
SCREW, TAPPING
$3.33¢1 667
1
#16
90111-05007-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#17
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
1
#18
2PP-28229-00-P0
COVER 2 | UR FOR MNM3
$125.86¢62 928
1
#19
2C0-2174X-00-00
DAMPER
$1.83¢914
1
#20
5PW-2177L-01-00
PLATE, SPRING
$6.82¢3 410
1
#21
90480-13018-00
GROMMET
$6.83¢3 415
1
#22
90387-0611W-00
COLLAR
$3.48¢1 742
1
#23
2PP-2836L-00-00
PANEL, INNER 2
$247.72¢123 861
1
#24
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#25
90480-13018-00
GROMMET
$6.83¢3 415
1
#26
90387-0611W-00
COLLAR
$3.48¢1 742
1
#27
5PW-2177L-01-00
PLATE, SPRING
$6.82¢3 410
1
#28
90480-13014-00
GROMMET
$7.51¢3 755
1
#29
2PP-2837R-00-00
GRILL, AIR INTAKE 2
$10.29¢5 146
1
#30
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#31
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#32
90167-05079-00
SCREW, TAPPING
$3.33¢1 667
1
#33
90111-05007-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#34
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
1
#35
2PP-2835U-00-P0
PANEL 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$137.55¢68 776
1
#36
90183-05042-00
NUT, SPRING
$1.15¢575
1
#37
2PP-2837L-00-00
PANEL, CONSOLE 1
$147.41¢73 703
1
#38
90167-05079-00
SCREW, TAPPING
$3.33¢1 667
1
#39
14B-28386-00-00
HEAD
$10.43¢5 215
1
#39
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#40
14B-28386-00-00
HEAD
$10.43¢5 215
1
#41
2PP-2836H-00-00
BRACKET 5
$14.10¢7 049
1
#42
90119-06267-00
BOLT, WITH WASHER
$6.75¢3 375
1
#43
90480-14003-00
GROMMET
$6.83¢3 415
1
#44
90387-06057-00
COLLAR
$6.75¢3 375
1
#45
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#46
90464-25160-00
CLAMP
$11.02¢5 509
1
#47
90465-15011-00
Clamp
$2.14¢1 070
1
#48
2PP-2835V-00-P0
PANEL 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$139.32¢69 661
1
#49
90183-05042-00
NUT, SPRING
$1.15¢575
1
#50
2PP-2837M-00-00
PANEL, CONSOLE 2
$125.26¢62 629
1
#51
90167-05079-00
SCREW, TAPPING
$3.33¢1 667
1
#52
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#54
2PP-2836J-00-00
BRACKET 6
$14.17¢7 084
1
#55
90119-06267-00
BOLT, WITH WASHER
$6.75¢3 375
1
#56
90480-14003-00
GROMMET
$6.83¢3 415
1
#57
90387-06057-00
COLLAR
$6.75¢3 375
1
#58
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#59
2SC-28391-00-00
GRAPHIC 1 | UR FOR MNM3
No Disponible
1
#60
2SC-28392-00-00
GRAPHIC 2 | UR FOR MNM3
$22.40¢11 201
1
#61
1RC-2413B-00-00
EMBLEM
$21.98¢10 988
1
#62
1RC-2413B-00-00
EMBLEM
$21.98¢10 988
1
#63
29P-2816R-00-00
LABEL, WARNING GENERAL INFO.
$3.40¢1 702
1
