REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

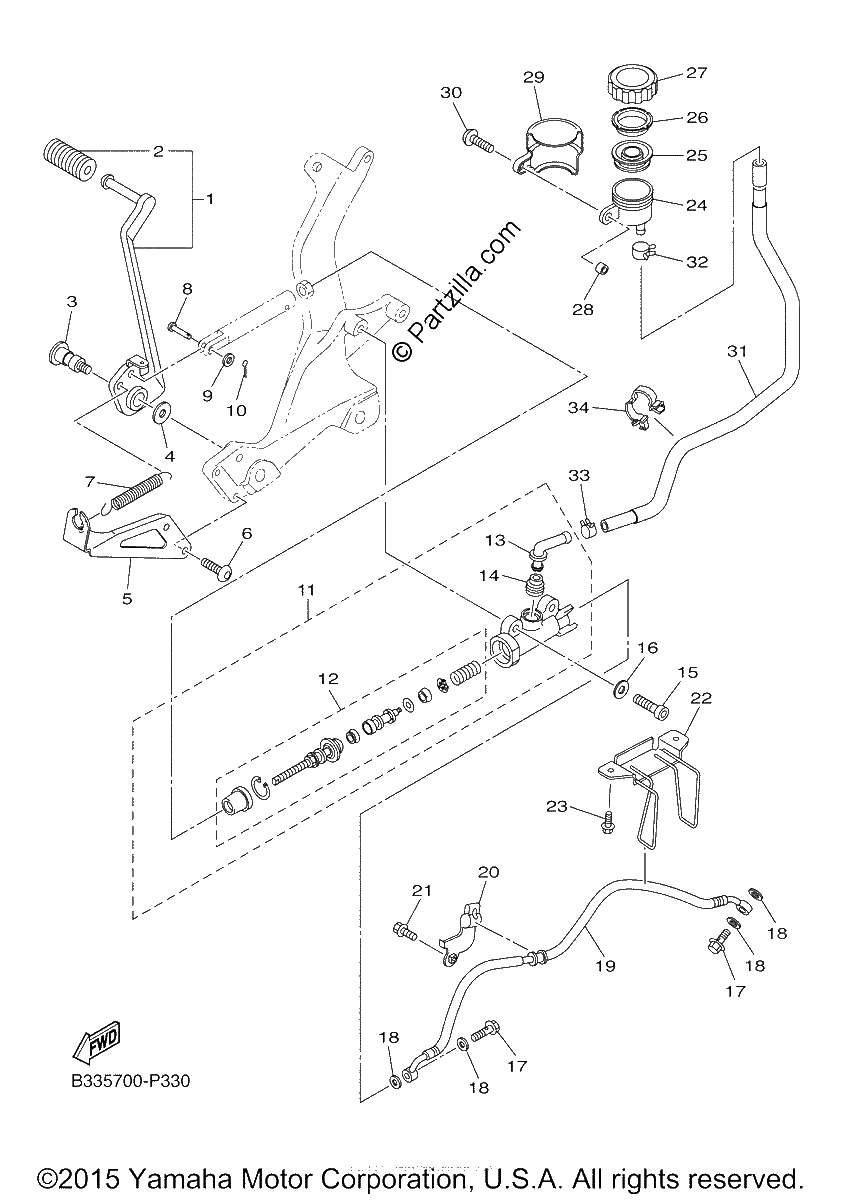

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
B33-27200-00-00
PEDAL, BRAKE
$57.90¢28 951
1
#2
5EB-18113-00-00
COVER, SHIFT PEDAL
$7.82¢3 910
1
#3
5XT-27434-10-00
BOLT (replaces 5XT-27434-00-00)
$12.56¢6 279
1
#4
90201-094G1-00
WASHER, PLATE
$7.65¢3 824
1
#5
B33-27263-00-00
BRACKET 1
$14.88¢7 440
1
#6
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#7
90506-16009-00
Spring, Tension
$4.40¢2 202
1
#8
91701-06018-00
PIN,CLEVIS (replaces 91702-06018-00)
$4.91¢2 455
1
#9
92990-06200-00
WASHER, PLAIN
$0.89¢443
1
#10
91490-20015-00
PIN. COTTER
$2.02¢1 012
1
#11
B33-2583V-00-00
RR. MASTER CYLINDE
$102.82¢51 411
1
#12
1TP-25808-00-00
CYLINDER KIT, MASTER
$55.67¢27 836
1
#13
B33-2582A-00-00
JOINT
$9.83¢4 916
1
#14
4BP-2585F-01-00
O-RING
$10.48¢5 238
1
#15
91317-08025-00
BOLT
$6.83¢3 415
1
#16
90201-082H0-00
WASHER, plate
$0.67¢333
1
#17
90401-10020-00
BOLT, UNION
$9.07¢4 537
1
#18
90430-10005-00
GASKET
$7.72¢3 858
1
#19
1TP-2581J-01-00
HOSE, BRAKE 4
$72.68¢36 340
1
#20
1TP-2588F-00-00
HOLDER, BRAKE HOSE 5
$11.15¢5 577
1
#21
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#22
1TP-2587A-00-00
HOLDER, BRAKE HOSE
$28.72¢14 358
1
#23
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#24
31A-25894-10-00
TANK, RESERVOIR
$45.23¢22 615
1
#25
360-25854-01-00
DIAPHRAGM, RESERVOIR
$22.87¢11 437
1
#26
2GU-25855-00-00
BUSH, DIAPHRAGM
$27.95¢13 973
1
#27
2KF-25852-50-00
CAP, RESERVOIR
$46.98¢23 489
1
#28
90387-06072-00
COLLAR
$6.90¢3 450
1
#29
4NK-25888-00-00
COVER, RESERVOIR TANK
$85.43¢42 717
1
#30
92014-06020-00
BOLT, BUTTON HEAD
$7.58¢3 789
1
#31
B33-25895-00-00
Hose, Reservoir
$50.94¢25 472
1
#32
90467-14057-00
CLIP
$8.26¢4 129
1
#33
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
1
#34
90464-23239-00
CLAMP
$1.94¢972
1
