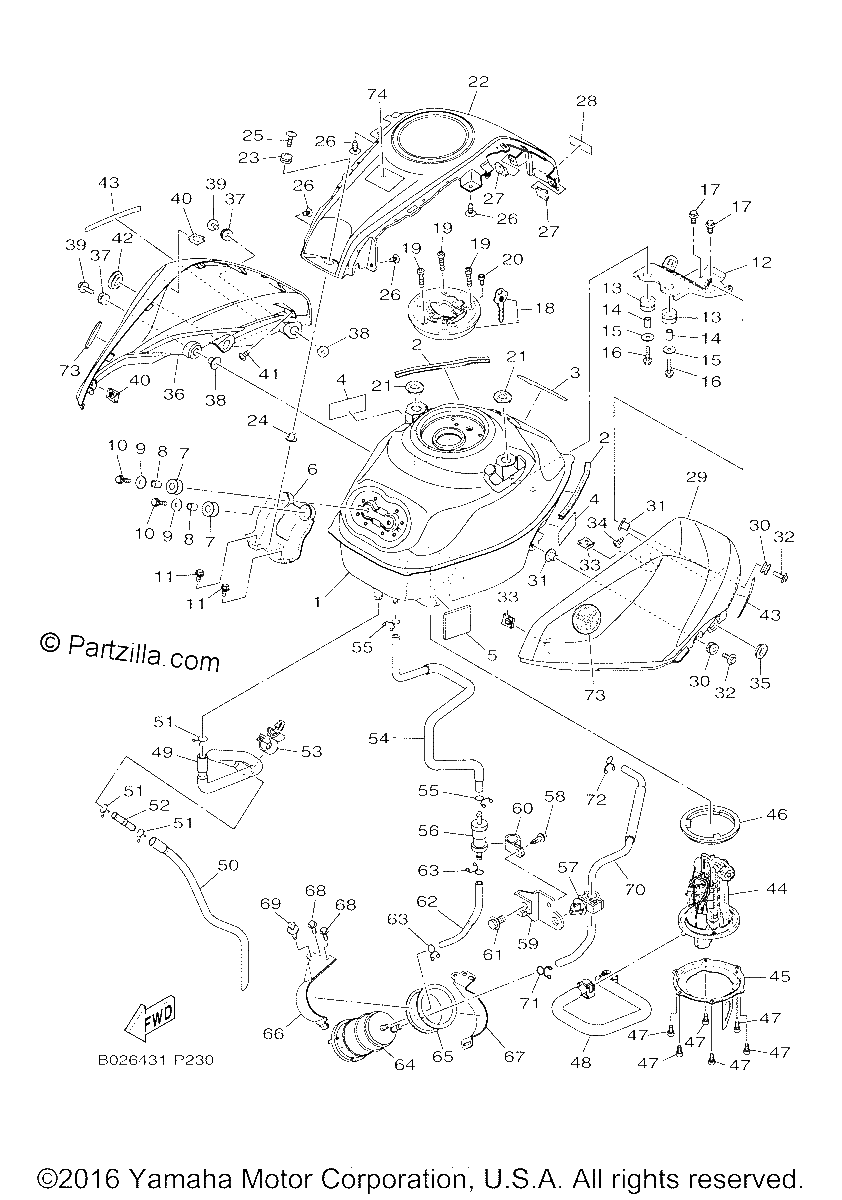

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
COVER, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$66.16¢33 080
#0
COVER, SIDE 1 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$56.61¢28 307
#0
COVER, SIDE 2 | Use for Color Black Metallic X ( SMX / 0903 )
$66.16¢33 080
#0
COVER, SIDE 2 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$54.18¢27 088
#0
COVER, TANK | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$34.73¢17 365
#1
FUEL TANK COMP.
$357.32¢178 658
#2
MOLD, FUEL TANK
$5.55¢2 777
#3
DAMPER, PLATE
$1.53¢765
#4
SEAL
$1.95¢977
#5
DAMPER, PLATE 1
No Disponible
#6
BRACKET, TANK FITTING
$14.27¢7 136
#7
GROMMET
No Disponible
#8
COLLAR
$5.30¢2 651
#9
WASHER PLAIN
$0.63¢316
#10
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
#11
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
#12
BRACKET, FUEL TANK 1
No Disponible
#13
GROMMET
$1.25¢627
#14
COLLAR
$5.30¢2 651
#15
WASHER PLAIN
$0.63¢316
#16
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
#17
BOLT, FLANGE
$6.83¢3 415
#18
CAP ASSY
$144.46¢72 232
#19
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#20
BOLT
$5.39¢2 697
#21
Grommet
$4.31¢2 156
#22
COVER, TANK | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$28.70¢14 352
#23
GROMMET
$2.71¢1 357
#24
COLLAR
$2.70¢1 351
#25
BOLT, HEX. SOCKET BUTTON
$1.61¢805
#26
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#27
NUT, SPRING
$1.15¢575
#28
SEAL
$1.94¢972
#29
COVER, SIDE 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$66.16¢33 080
#30
GROMMET
$2.71¢1 357
#31
COLLAR
$2.70¢1 351
#32
BOLT, WITH WASHER
$5.86¢2 932
#33
NUT, SPRING
$1.15¢575
#34
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#35
Grommet
$5.27¢2 633
#36
COVER, SIDE 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$44.65¢22 327
#37
GROMMET
$2.71¢1 357
#38
COLLAR
$2.70¢1 351
#39
Clamp
$5.93¢2 967
#39
BOLT, WITH WASHER
$5.86¢2 932
#40
NUT, SPRING
$1.15¢575
#41
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#42
Grommet
$5.27¢2 633
#43
SEAL 2
$2.71¢1 357
#44
FUEL PUMP COMP.
$249.22¢124 608
#45
BRACKET, FUEL PUMP
$11.22¢5 612
#46
O-RING
$41.00¢20 499
#47
BOLT
$5.39¢2 697
#48
PIPE, FUEL 1
$71.97¢35 984
#49
PIPE 2
$13.05¢6 526
#50
PIPE 4
$14.72¢7 360
#51
CLIP,SCISSOR
$5.16¢2 582
#52
PIPE, JOINT 1
$15.32¢7 659
#54
PIPE 4
$29.66¢14 829
#55
Clip
$2.74¢1 368
#56
ROLL OVER VALVE ASSY
$82.40¢41 199
#57
CLAMP
$2.90¢1 449
#58
RIVET
$2.05¢1 023
#59
BRACKET, CANISTOR
No Disponible
#60
Clamp
$2.16¢1 081
#61
BOLT, SMALL FLANGE (replaces 9502M-08012-00)
$7.56¢3 778
#62
PIPE 5
$8.82¢4 410
#63
Clip
$2.74¢1 368
#64
CANISTER ASSY
$143.20¢71 599
#65
BAND
$3.42¢1 708
#66
BRACKET, CANISTER
$13.42¢6 710
#67
BRACKET, CANISTER
$12.58¢6 290
#68
BOLT, FLANGE
$6.88¢3 439
#69
RIVET
$6.23¢3 117
#70
PIPE 6
$24.53¢12 265
#71
CLIP
$8.28¢4 140
#72
Clip
$2.74¢1 368
#73
EMBLEM
$9.72¢4 859
#74
LABEL, CAUTION
$6.59¢3 295
