HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

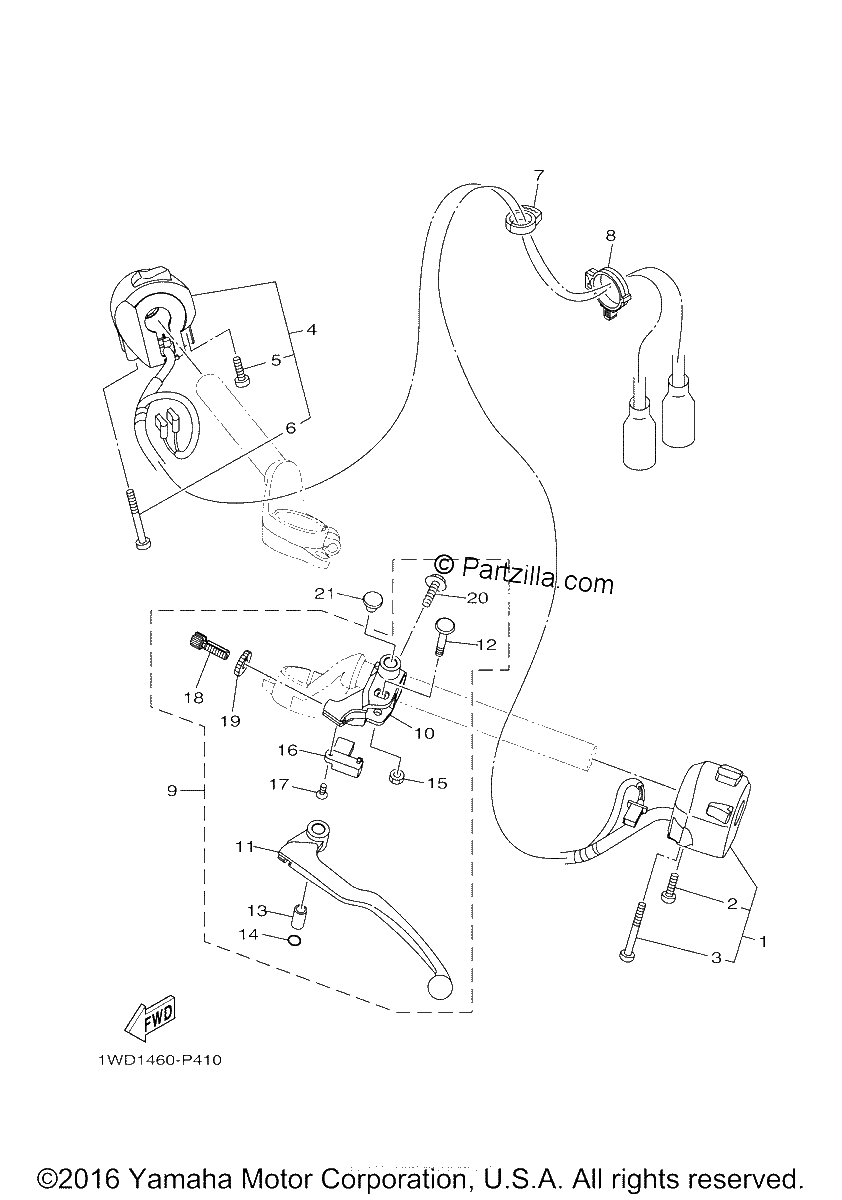

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
1WD-H3972-00-00
SWITCH, HANDLE 4
$142.43¢71 213
1
#2
1WD-H2133-00-00
SCREW, FITTING
$1.04¢519
1
#3
1WD-H395W-00-00
SCREW, SWITCH FITTING
$1.98¢988
1
#4
1WD-H3975-00-00
SWITCH, HANDLE 2
$86.05¢43 025
1
#5
45P-H2133-00-00
SCREW, FITTING
$0.93¢463
1
#6
45P-H395W-00-00
SCREW, SWITCH FITTING
$0.60¢300
1
#7
90464-16003-00
CLAMP
$7.46¢3 731
1
#8
90464-30001-00
Clamp
$7.65¢3 825
1
#9
1WD-H2910-00-00
LEVER HOLDER ASSY (LEFT)
$103.07¢51 537
1
#10
1WD-H2911-00-00
HOLDER, LEVER 1
$18.43¢9 213
1
#11
1WD-H3912-00-00
LEVER 1
$13.22¢6 613
1
#12
31A-83945-00-00
BOLT, LEVER
$5.58¢2 788
1
#13
31A-83913-00-00
COLLAR, LEVER 1
$23.20¢11 600
1
#14
93210-10118-00
O-RING
$6.99¢3 494
1
#15
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#16
5BP-H2917-00-00
SWITCH
$16.54¢8 269
1
#17
90151-03005-00
SCREW, COUNTERSUNK
$6.91¢3 456
1
#18
90123-08046-00
BOLT
$10.94¢5 469
1
#19
90179-08148-00
NUT
$4.64¢2 319
1
#20
97507-06525-00
BOLT, WITH WASHER
$1.27¢638
1
#21
90338-09012-00
PLUG
$8.64¢4 319
1
