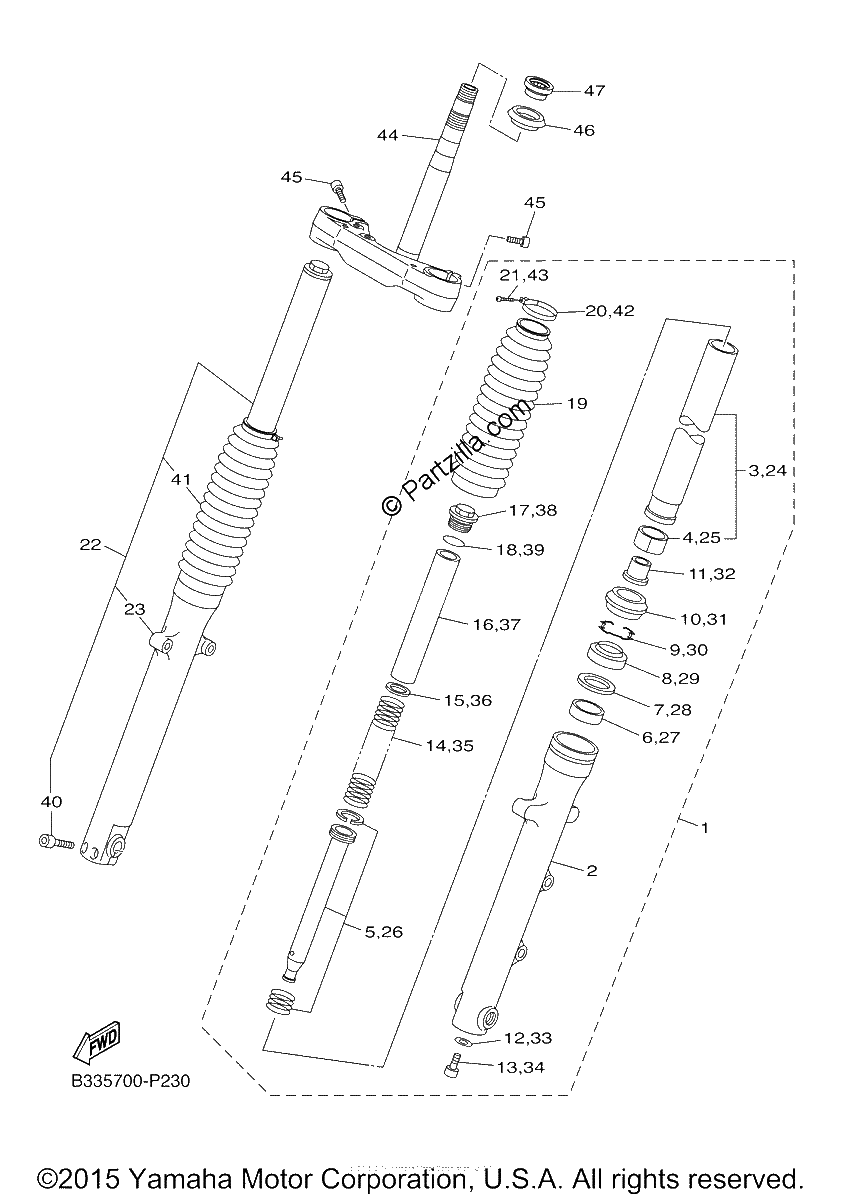

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L
$538.19¢269 094
#2
TUBE, OUTER (L.H)
$354.14¢177 071
#3
INNER TUBE COMP.1
$333.60¢166 802
#4
METAL, SLIDE
$22.33¢11 167
#5
CYLINDER COMP., FR
$59.83¢29 917
#6
METAL,SLIDE 1
$32.08¢16 042
#7
WASHER, OIL SEAL
$24.18¢12 092
#8
OIL SEAL
$26.59¢13 294
#9
RING, SNAP
$7.24¢3 622
#10
SEAL, DUST
$21.36¢10 678
#11
SPINDLE, TAPER
$36.17¢18 084
#12
GASKET | (KYB)
$15.72¢7 860
#13
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#14
SPRING, FRONT FORK
$37.10¢18 550
#15
WASHER, SPRING UPPER
$7.28¢3 640
#16
SPACER
$17.35¢8 677
#17
BOLT, cap
$46.98¢23 489
#18
O-RING
$5.40¢2 702
#19
Boot
$58.98¢29 492
#20
BAND
$21.08¢10 540
#21
SCREW, PAN HEAD
$6.76¢3 381
#22
FRONT FORK ASSY (R
$538.19¢269 094
#23
TUBE, OUTER
$354.43¢177 215
#24
INNER TUBE COMP.1
$333.60¢166 802
#25
METAL, SLIDE
$22.33¢11 167
#26
CYLINDER COMP., FR
$59.83¢29 917
#27
METAL,SLIDE 1
$32.08¢16 042
#28
WASHER, OIL SEAL
$24.18¢12 092
#29
OIL SEAL
$26.59¢13 294
#30
RING, SNAP
$7.24¢3 622
#31
SEAL, DUST
$21.36¢10 678
#32
SPINDLE, TAPER
$36.17¢18 084
#33
GASKET | (KYB)
$15.72¢7 860
#34
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#35
SPRING, FRONT FORK
$37.10¢18 550
#36
WASHER, SPRING UPPER
$7.28¢3 640
#37
SPACER
$17.35¢8 677
#38
BOLT, cap
$46.98¢23 489
#39
O-RING
$5.40¢2 702
#40
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
#41
Boot
$58.98¢29 492
#42
BAND
$21.08¢10 540
#43
SCREW, PAN HEAD
$6.76¢3 381
#44
UNDER BRACKET COMP.
$486.90¢243 449
#45
BOLT, HEXAGON SOCKET HEAD
$7.57¢3 783
#46
SEAL, STEERING
$23.48¢11 742
#47
BEARING
$60.89¢30 446
