STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

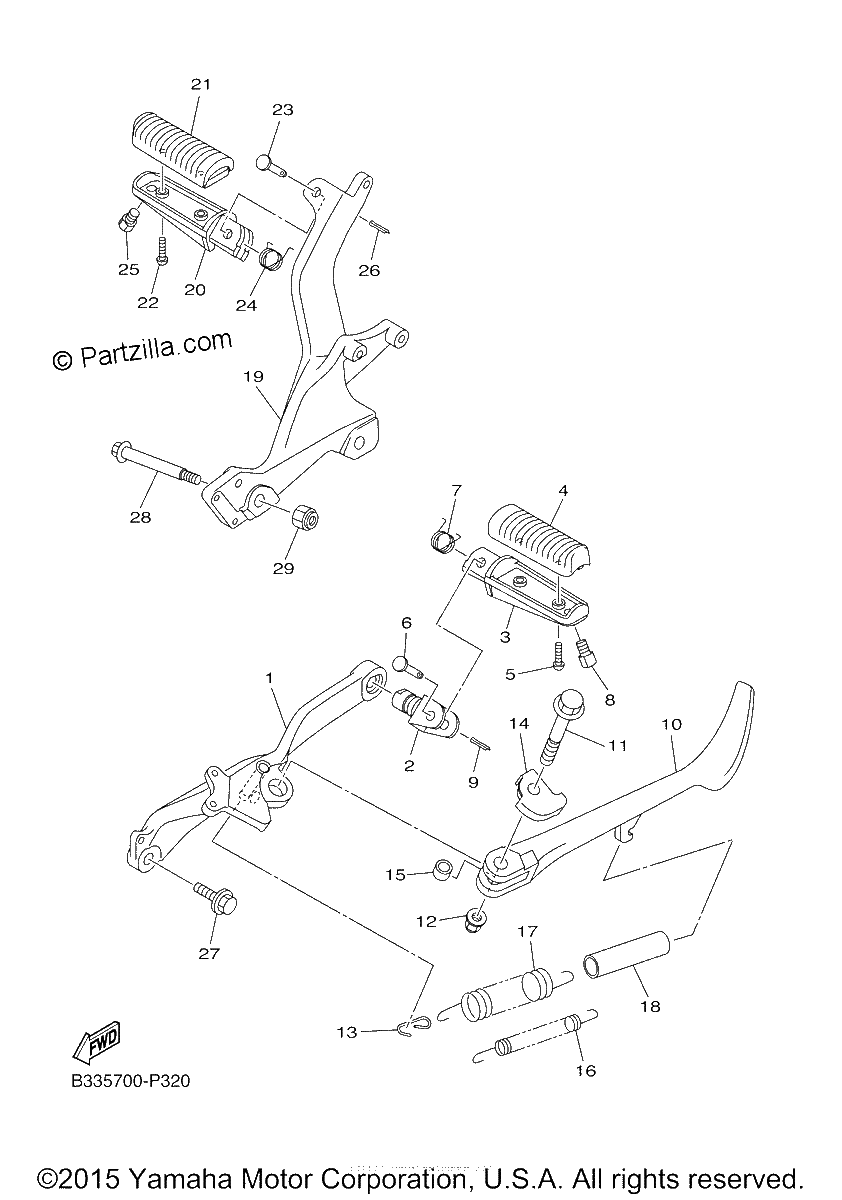

Diagrama de STAND FOOTREST

Repuestos

#1
B33-27411-00-00
FOOTREST 1
$302.58¢151 288
1
#2
46X-27411-10-00
FOOTREST 1
$32.65¢16 324
1
#3
4BH-27451-01-00
FOOTREST
$55.67¢27 836
1
#4
4BP-27413-00-00
COVER, FOOTREST
$29.52¢14 760
1
#5
98580-05014-00
SCREW, PAN HEAD
$8.04¢4 019
1
#6
91701-08035-00
PIN
$6.43¢3 214
1
#7
90508-20572-00
SPRING, TORSION
$7.30¢3 651
1
#8
1D7-27435-09-00
BOLT (replaces 1D7-27435-00-00)
$16.27¢8 136
1
#9
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#10
1TP-27311-00-00
STAND, SIDE
$180.24¢90 120
1
#11
90105-10426-00
BOLT, FLANGE
$8.07¢4 036
1
#12
90185-10008-00
NUT, SELF-LOCKING
$6.27¢3 134
1
#13
1TP-27315-00-00
LINK, SIDE STAND
$7.60¢3 801
1
#14
5S7-27322-00-00
WASHER
$15.12¢7 561
1
#15
90387-10020-00
COLLAR
$17.96¢8 981
1
#16
90506-23015-00
SPRING, TENSION
$9.81¢4 905
1
#17
90506-29006-00
SPRING, TENSION
$14.11¢7 055
1
#18
90445-16641-00
HOSE (L60)
$6.69¢3 347
1
#19
B33-27421-00-00
FOOTREST 2
$277.15¢138 575
1
#20
4BH-27461-01-00
FOOTREST
$55.48¢27 738
1
#21
4BP-27413-00-00
COVER, FOOTREST
$29.52¢14 760
1
#22
98580-05014-00
SCREW, PAN HEAD
$8.04¢4 019
1
#23
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#24
90508-20572-00
SPRING, TORSION
$7.30¢3 651
1
#25
1D7-27435-09-00
BOLT (replaces 1D7-27435-00-00)
$16.27¢8 136
1
#26
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#27
90105-10424-00
BOLT, FLANGE
$7.53¢3 766
1
#28
90105-10323-00
BOLT, FLANGE
$4.55¢2 277
1
#29
90185-10008-00
NUT, SELF-LOCKING
$6.27¢3 134
1
