REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

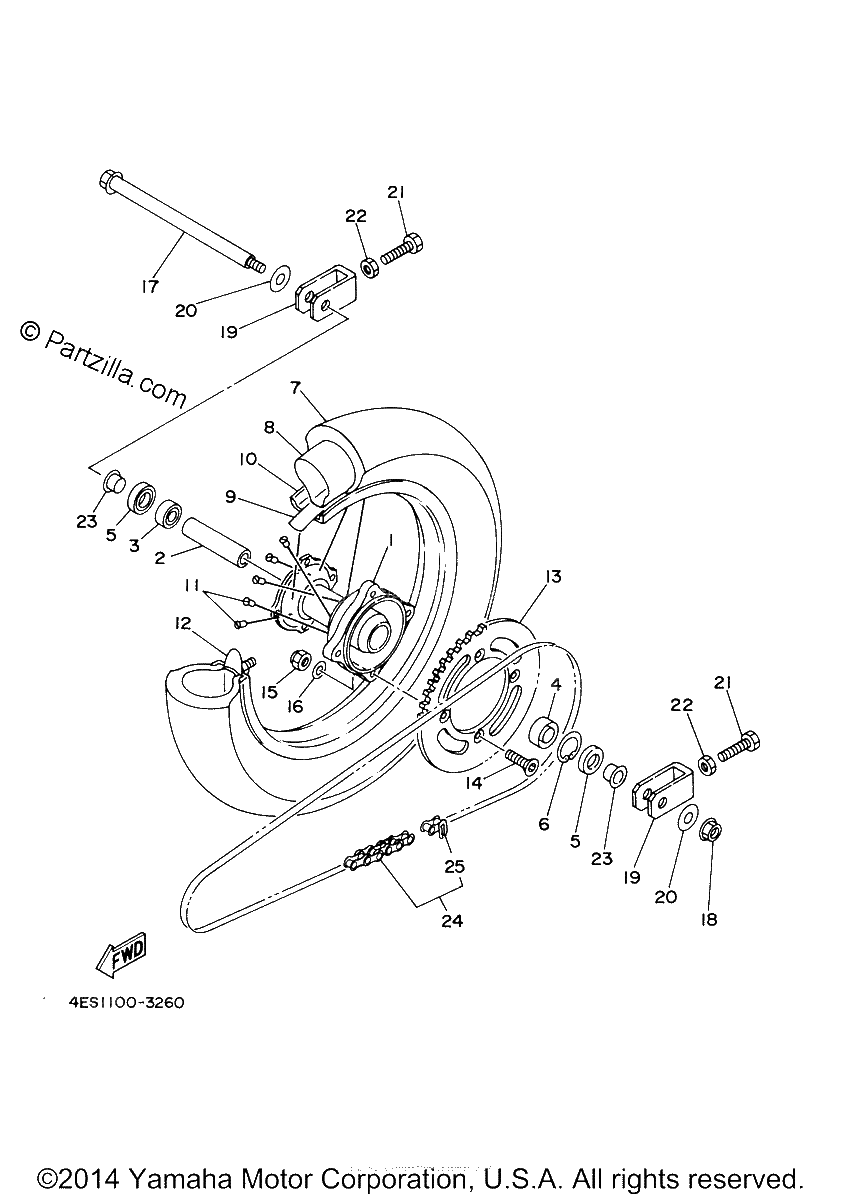

Diagrama de REAR WHEEL

Repuestos

#0
4ES-25447-20-00
SPROCKET, DRIVEN (47T) | STD AFAM
$110.81¢55 407
1
#0
5PA-25446-00-00
SPROCKET, DRIVEN (46T) | AP
$74.66¢37 329
1
#0
5PA-25449-00-00
SPROCKET, DRIVEN (49T) | AP
$108.91¢54 453
1
#1
4ES-25311-00-00
HUB, REAR
$339.63¢169 815
1
#2
4ES-25383-00-00
COLLAR, WHEEL
$23.99¢11 994
1
#3
93306-00201-00
BEARING
$36.59¢18 297
1
#4
93306-20203-00
BEARING
$25.44¢12 719
1
#5
93102-20009-00
OIL SEAL
$9.99¢4 997
1
#6
99009-35500-00
CIRCLIP
$6.75¢3 375
1
#7
94109-14019-00
TIRE (90/100-14 49M MX51) | DUNLOP
No Disponible
1
#8
94208-14285-00
TUBE (80-90/100-14M/C TR4) | DUNLOP
$24.76¢12 380
1
#9
94327-14076-00
BAND, RIM (1.60-14) | CHENG SHIN
$8.13¢4 065
1
#10
94416-14529-00
RIM (1.60-14)
$502.39¢251 194
1
#11
4ES-25304-20-00
SPOKE SET, REAR
$97.99¢48 996
1
#12
5X2-25394-00-00
SPACER, BEAD
$48.27¢24 133
1
#13
5PA-25448-00-00
SPROCKET, DRIVEN (48T) | AP
$78.54¢39 272
1
#14
90152-08001-00
SCREW, COUNTERSUNK
$3.28¢1 639
1
#15
90185-08008-00
NUT, SELF-LOCKING
$6.59¢3 295
1
#16
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#17
4ES-25381-01-00
AXLE, WHEEL
$68.19¢34 098
1
#18
90185-14012-00
NUT, SELF-LOCKING
$22.39¢11 195
1
#19
5PA-25388-00-00
PULLER, CHAIN 1
$58.72¢29 360
1
#20
90201-15027-00
WASHER, PLATE
$6.53¢3 266
1
#21
90101-08060-00
BOLT
$5.39¢2 697
1
#22
95302-08700-00
NUT, HEXAGON
$3.58¢1 788
1
#23
4ES-25383-10-00
COLLAR, WHEEL
$24.55¢12 276
1
#24
9Y582-00117-00
CHAIN (DID 428DS 118L)
$65.25¢32 625
1
#25
94682-00001-00
JOINT, CHAIN (DID 428DS-RJ)
$4.83¢2 415
1
