FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

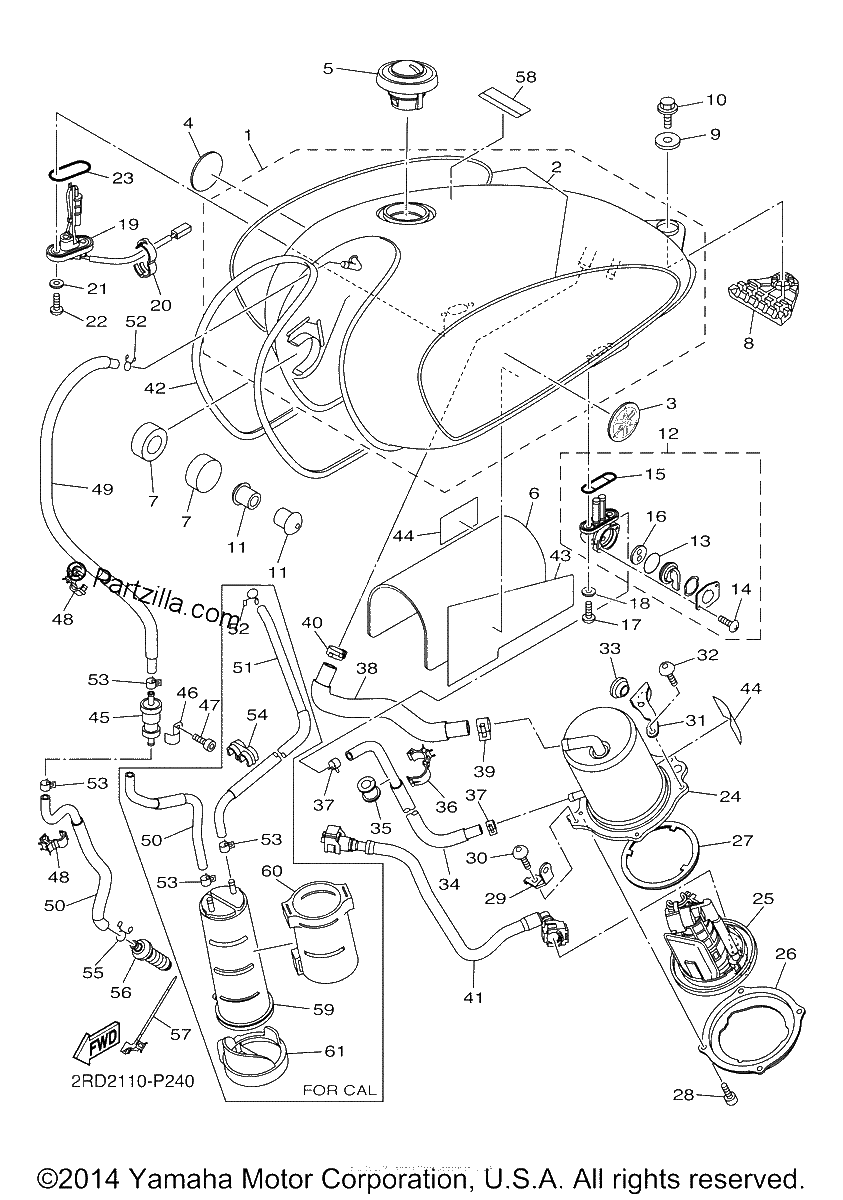

Diagrama de FUEL TANK

Repuestos

#0
4NK-24602-20-00
CAP ASSY
$125.82¢62 911
1
#0
3HT-24314-00-00
PIPE 4 | FOR U49
$10.90¢5 451
1
#1
3HT-Y2410-10-07
FUEL TANK COMP. | DNMN
$1001.64¢500 819
1
#2
2RD-24240-30-00
GRAPHIC SET
No Disponible
1
#3
1JN-24161-10-00
EMBLEM
$20.23¢10 114
1
#4
1JN-24162-10-00
EMBLEM
$20.23¢10 114
1
#5
5BN-24602-10-00
CAP ASSY
$199.88¢99 941
1
#6
90520-03008-00
DAMPER, PLATE
$33.04¢16 520
1
#7
2J2-24181-00-00
DAMPER, LOCATING 1
$7.54¢3 772
1
#8
1J7-24182-01-00
DAMPER, LOCATING 2
$34.15¢17 077
1
#9
90209-08008-00
WASHER
$5.34¢2 668
1
#10
95817-08012-00
BOLT, FLANGE
$4.35¢2 173
1
#11
2J2-24183-01-00
DAMPER, LOCATING 3
$4.80¢2 398
1
#12
4DP-24500-10-00
FUEL COCK ASSY 1
$90.34¢45 172
1
#13
3AJ-24534-10-00
SEAL, COCK
$7.75¢3 875
1
#14
98517-03008-00
SCREW, PAN HEAD
$3.00¢1 501
1
#15
4X8-24512-10-00
GASKET
$12.02¢6 009
1
#16
3AC-24523-00-00
VALVE PACKING
$12.71¢6 354
1
#17
90149-06108-00
SCREW
$1.05¢523
1
#18
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#19
3HT-85752-01-00
SENDER UNIT ASSY, FUEL METER
$132.59¢66 298
1
#20
90464-16001-00
CLAMP
$1.87¢937
1
#21
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#22
90149-06108-00
SCREW
$1.05¢523
1
#23
42X-85753-00-00
GASKET, SENDER UNIT
$7.38¢3 691
1
#24
3HT-244A0-00-00
PUMP CASE COMP.
$435.54¢217 770
1
#25
3HT-13907-00-00
FUEL PUMP COMP.
$272.79¢136 396
1
#26
35C-24491-00-00
BRACKET, FUEL PUMP
$22.16¢11 080
1
#27
1S4-24486-00-00
O-Ring
$45.47¢22 736
1
#28
91312-05010-00
BOLT
$5.39¢2 697
1
#29
3HT-24425-00-00
BRACKET, FUEL PUMP 1
$8.45¢4 226
1
#30
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#31
3HT-24426-00-00
BRACKET, FUEL PUMP 2
$6.50¢3 249
1
#32
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#33
90480-15004-00
GROMMET
$3.82¢1 909
1
#34
2RD-24311-00-00
PIPE, FUEL 1
$10.35¢5 175
1
#35
90480-20543-00
GROMMET
$7.30¢3 651
1
#36
90464-20191-00
Clamp
$8.06¢4 031
1
#37
90467-10135-00
CLIP
$7.58¢3 789
1
#38
2RD-24312-00-00
PIPE 2
$36.56¢18 279
1
#39
90467-090A1-00
CLIP | FOR U49
$7.07¢3 536
1
#39
90467-160A2-00
CLIP
$4.77¢2 386
1
#40
5PX-2411M-00-00
CLIP
$9.69¢4 847
1
#41
3HT-13971-00-00
PIPE, FUEL 1
$61.47¢30 734
1
#42
3EB-24189-10-00
PLATE, MOLD
$33.00¢16 502
1
#43
3HT-21735-00-00
SEAL 2
$29.96¢14 979
1
#44
1JK-21735-00-00
SEAL 2
$5.99¢2 996
1
#45
5PX-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$57.60¢28 802
1
#46
5PX-24136-00-00
CLAMP 2
$3.47¢1 737
1
#47
91317-05010-00
BOLT,HEX.SOCKET HEAD
$1.84¢920
1
#48
90464-10190-00
CLAMP
$7.95¢3 973
1
#49
3HT-24313-00-00
PIPE 3
$42.68¢21 338
1
#50
2RD-24314-00-00
PIPE 4 | FOR CALIFORNIA
$37.24¢18 619
1
#51
2RD-24315-00-00
PIPE 5 | FOR CALIFORNIA
$53.82¢26 910
1
#52
90467-090A2-00
Clip
$2.74¢1 368
1
#54
90464-12224-00
CLAMP | FOR CALIFORNIA
$3.62¢1 811
1
#55
90467-11106-00
Clip
$2.99¢1 495
1
#56
5UX-24481-00-00
PLUG
$3.47¢1 737
1
#57
90464-15200-00
CLAMP
$4.15¢2 076
1
#58
1TP-2118K-A1-00
LABEL, CAUTION
$6.59¢3 295
1
#59
2RC-24170-00-00
CANISTER ASSY | FOR CAL
$530.62¢265 311
1
#60
2RD-24181-00-00
DAMPER, LOCATING 1 | FOR CALIFORNIA
$168.47¢84 238
1
#61
2RD-2419E-00-00
COVER, CANISTER | FOR CALIFORNIA
$150.67¢75 337
1
