FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

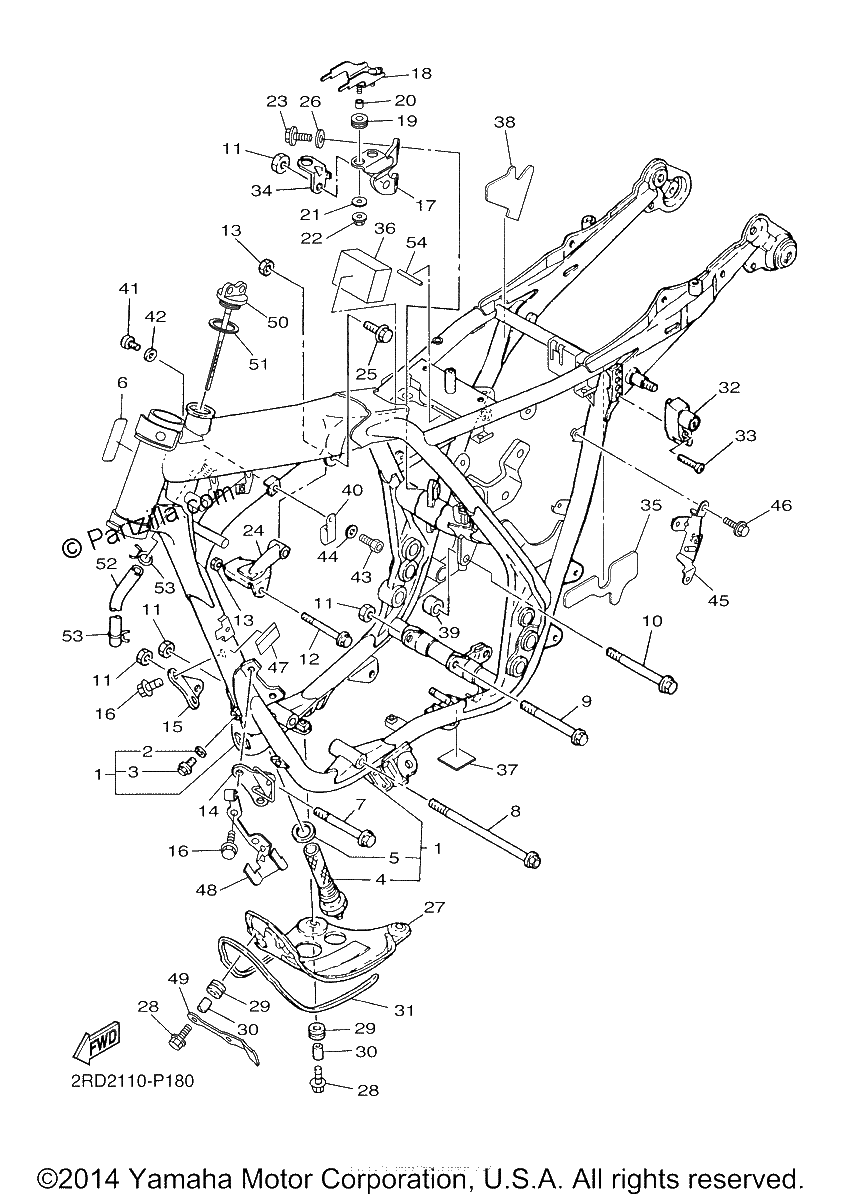

Diagrama de FRAME

Repuestos

#1
2RD-21110-10-00
FRAME COMP.
$2896.24¢1 448 119
1
#2
90430-08119-00
GASKET
$6.91¢3 456
1
#3
90105-08151-00
BOLT, FLANGE
$4.76¢2 381
1
#4
583-21756-00-00
NET, FILTER
$73.76¢36 881
1
#5
90430-22123-00
GASKET
$9.60¢4 800
1
#6
3D8-2117G-00-00
PROTECTOR
$6.65¢3 325
1
#7
90105-10747-00
BOLT, FLANGE
$4.55¢2 275
1
#8
90105-10370-00
BOLT, FLANGE
$11.39¢5 694
1
#9
90105-10105-00
BOLT, FLANGE
$12.89¢6 444
1
#10
90109-101A0-00
BOLT,WASHER BASED
$16.74¢8 369
1
#11
90185-10060-00
NUT, SELF-LOCKING
$7.16¢3 581
1
#12
90105-08118-00
BOLT, FLANGE
$6.95¢3 475
1
#13
90185-08089-00
NUT, SELF-LOCKING
$8.70¢4 350
1
#14
2J2-21315-40-00
STAY, ENGINE 1
$30.65¢15 325
1
#15
2J2-21316-10-00
STAY, ENGINE 2
$8.92¢4 462
1
#16
95817-08016-00
BOLT, FLANGE
$4.91¢2 456
1
#17
3HT-21317-00-00
STAY, ENGINE 3
$19.55¢9 775
1
#18
3HT-2134V-00-00
BRACKET
$10.81¢5 406
1
#19
90480-10289-00
GROMMET
$7.69¢3 844
1
#20
90387-0600V-00
COLLAR
$9.13¢4 563
1
#21
90201-06095-00
WASHER, PLATE (replaces 90201-06063-00)
$7.49¢3 744
1
#22
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#23
90105-08129-00
BOLT, FLANGE
$4.84¢2 419
1
#24
2J2-21318-10-00
STAY, ENGINE 4
$19.05¢9 525
1
#25
95817-08035-00
BOLT,FLANGE (replaces 90105-08108-00)
$7.94¢3 969
1
#26
90201-083P5-00
WASHER, PLATE(3XP)
$6.14¢3 069
1
#27
3GW-21471-00-33
PROTECTOR, ENGINE (0033, YB) | YB
$56.21¢28 106
1
#28
90119-06118-00
BOLT, WITH WASHER
$7.34¢3 669
1
#29
90480-13275-00
GROMMET
$5.29¢2 644
1
#30
90387-060A3-00
COLLAR
$8.60¢4 300
1
#31
52E-28376-00-00
TRIM
No Disponible
1
#32
4R8-21308-01-00
HELMET HANGER ASSY
$87.00¢43 500
1
#33
90151-06077-00
SCREW, COUNTERSUNK
$3.34¢1 669
1
#34
2J2-2144G-00-00
STAY, STOP SWITCH
$9.78¢4 888
1
#35
3HT-2139X-00-00
DAMPER
$2.91¢1 456
1
#36
3HT-2113B-00-00
DAMPER
$4.66¢2 331
1
#37
3KJ-24723-00-00
DAMPER, SEAT
$7.86¢3 931
1
#38
3HT-2117F-10-00
COVER
$6.55¢3 275
1
#39
2J2-21459-01-00
COLLAR, REAR ENGINE STAY
$10.89¢5 444
1
#39
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#40
90461-08113-00
CLAMP
$12.90¢6 450
1
#41
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$4.20¢2 100
1
#42
92907-05600-00
WASHER, PLATE
$0.96¢481
1
#43
97027-05010-00
BOLT
$6.91¢3 456
1
#44
92907-05600-00
WASHER, PLATE
$0.96¢481
1
#45
3HT-2137F-00-00
STAY 1
$30.44¢15 219
1
#46
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#47
32C-21686-00-00
PLATE, ROUTING 2 | FOR CALIFORNIA
$9.07¢4 538
1
#48
2RD-2419F-00-00
BRACKET, CANISTOR | FOR CALIFORNIA
$611.24¢305 619
1
#49
2RD-2413X-00-00
PLATE | FOR CALIFORNIA
$382.69¢191 344
1
#50
2J2-21771-10-00
BODY, CAP
$14.79¢7 394
1
#51
90430-27124-00
GASKET
$7.94¢3 969
1
#52
90445-11289-00
HOSE (L200)
$10.93¢5 463
1
#54
5VN-24188-00-00
MOLD, FUEL TANK
$38.30¢19 150
1
