STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

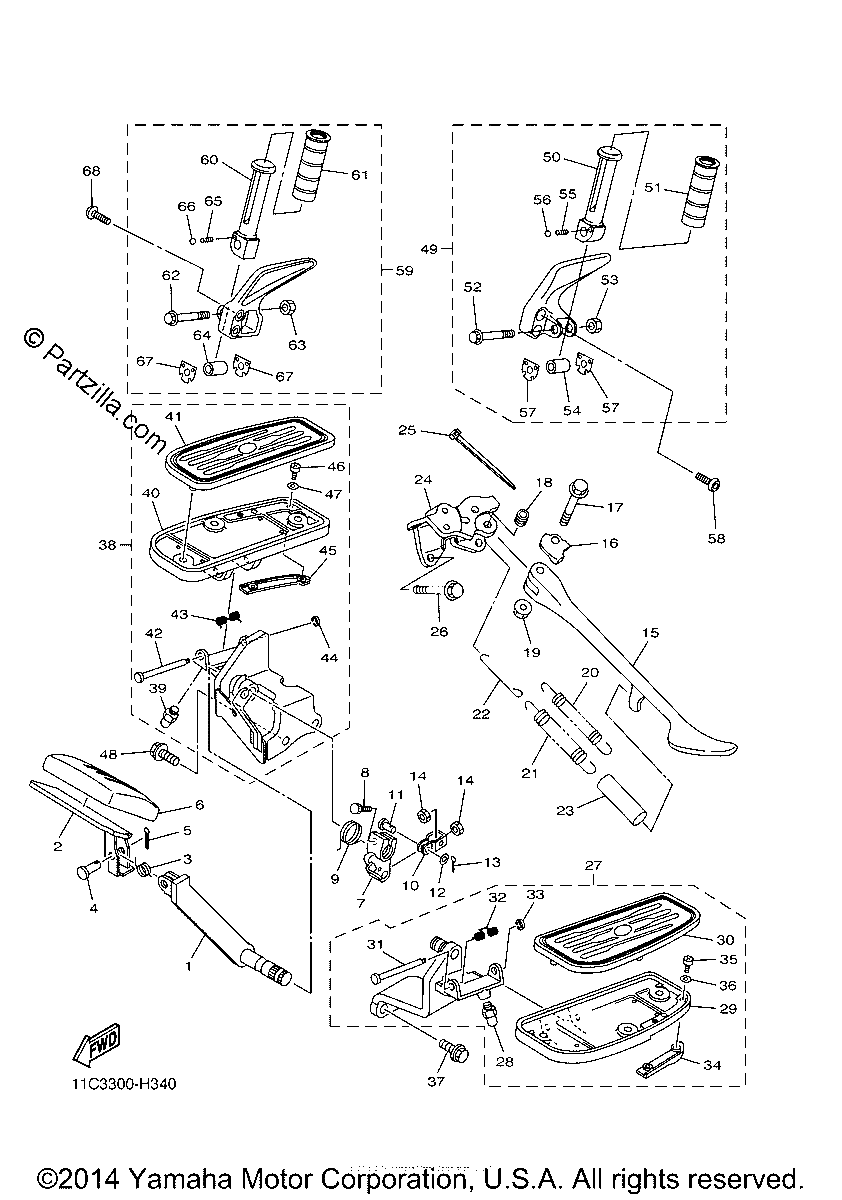

Diagrama de STAND FOOTREST

Repuestos

#0
3D8-27410-10-00
FRONT FOOTREST ASSY (LEFT) | FOR CALIFORNIA
$290.24¢145 118
1
#1
5KS-27211-00-00
PEDAL, BRAKE
$81.96¢40 980
1
#2
4NK-27242-00-00
PEDAL, BRAKE
$39.85¢19 924
1
#3
90508-18023-00
SPRING, TORSION
$6.05¢3 024
1
#4
91701-06022-00
PIN
$1.99¢995
1
#5
91490-20015-00
PIN. COTTER
$2.02¢1 012
1
#6
1D7-27285-00-00
CAP
$27.29¢13 645
1
#7
5EL-27262-01-00
LEVER
$61.21¢30 607
1
#8
97024-06020-00
BOLT
$6.75¢3 375
1
#9
3D8-27216-00-00
SPRING, RETURN
$13.90¢6 952
1
#10
4BP-27222-02-00
JOINT
$29.55¢14 777
1
#11
90240-08124-00
PIN, CLEVIS
$6.22¢3 111
1
#12
90201-08083-00
WASHER, PLATE
$6.88¢3 439
1
#13
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#14
95317-08700-00
NUT
$7.72¢3 858
1
#15
4KU-27311-13-00
STAND, SIDE
$207.99¢103 995
1
#16
3D8-27322-00-00
WASHER
$18.71¢9 355
1
#17
90105-10012-00
BOLT, WASHER BASED
$10.81¢5 405
1
#18
90387-1003G-00
COLLAR
$20.17¢10 085
1
#19
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#20
90506-23015-00
SPRING, TENSION
$9.81¢4 905
1
#21
90506-29006-00
SPRING, TENSION
$14.11¢7 055
1
#22
3D8-27315-00-00
LINK, SIDE STAND
$7.38¢3 691
1
#23
90445-16641-00
HOSE (L60)
$6.69¢3 347
1
#24
3D8-27321-00-00
BRACKET, SIDE STAND
$250.00¢124 999
1
#25
1UA-82591-00-00
BAND
$4.52¢2 260
1
#26
90105-10158-00
BOLT, FLANGE
$8.39¢4 198
1
#27
3D8-27410-00-00
FRONT FOOTREST ASSY (LEFT) | FOR U49
$382.97¢191 486
1
#28
5PX-27435-09-00
BOLT
$18.75¢9 373
1
#29
4NK-27451-10-00
FOOTREST
$65.25¢32 625
1
#30
4XY-27413-01-00
COVER, FOOTREST
$78.33¢39 163
1
#31
3D8-27427-00-00
SHAFT
$6.73¢3 364
1
#32
1D7-27426-00-00
SPRING, RETURN
$4.54¢2 271
1
#33
99002-06600-00
CIRCLIP
$0.94¢471
1
#34
4WM-27496-00-00
MOLE 1
$59.96¢29 981
1
#35
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
1
#36
92990-05200-00
WASHER, PLAIN
$5.04¢2 519
1
#37
90105-102A3-00
BOLT, WASHER BASED
$7.64¢3 818
1
#38
3D8-27420-00-00
FRONT FOOTREST ASSY (RIGHT)
$382.97¢191 486
1
#39
5PX-27435-09-00
BOLT
$18.75¢9 373
1
#39
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#40
4NK-27461-10-00
FOOTREST
$85.62¢42 809
1
#41
4XY-27423-01-00
COVER, FOOTREST
$78.80¢39 399
1
#42
3D8-27427-00-00
SHAFT
$6.73¢3 364
1
#43
1D7-27426-00-00
SPRING, RETURN
$4.54¢2 271
1
#44
99002-06600-00
CIRCLIP
$0.94¢471
1
#45
4WM-27497-00-00
MOLE 2
$59.93¢29 963
1
#46
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
1
#47
92990-05200-00
WASHER, PLAIN
$5.04¢2 519
1
#48
90105-102A3-00
BOLT, WASHER BASED
$7.64¢3 818
1
#49
3D8-27430-10-00
REAR FOOTREST ASSY 1
$106.24¢53 118
1
#50
1D7-27431-00-00
FOOTREST, REAR 1
$20.26¢10 131
1
#51
4WM-27433-00-00
COVER, REAR FOOTREST
$19.39¢9 695
1
#52
90109-06016-00
BOLT
$8.50¢4 249
1
#54
36Y-83913-01-00
COLLAR, LEVER 1
$9.79¢4 893
1
#55
90501-15001-00
SPRING, COMPRESSION
$1.78¢891
1
#56
93501-04011-00
BALL
$6.87¢3 433
1
#57
1D7-27437-00-00
WASHER, SPECIAL
$4.23¢2 116
1
#58
90111-08042-00
BOLT,HEX. SOCKET BUT
$4.11¢2 053
1
#59
3D8-27440-10-00
REAR FOOTREST ASSY 2
$152.95¢76 475
1
#60
1D7-27441-00-00
FOOTREST, REAR 2
$32.07¢16 037
1
#61
4WM-27433-00-00
COVER, REAR FOOTREST
$19.39¢9 695
1
#62
90109-06016-00
BOLT
$8.50¢4 249
1
#63
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#64
36Y-83913-01-00
COLLAR, LEVER 1
$9.79¢4 893
1
#65
90501-15001-00
SPRING, COMPRESSION
$1.78¢891
1
#66
93501-04011-00
BALL
$6.87¢3 433
1
#67
1D7-27437-00-00
WASHER, SPECIAL
$4.23¢2 116
1
#68
90111-08042-00
BOLT,HEX. SOCKET BUT
$4.11¢2 053
1
