EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

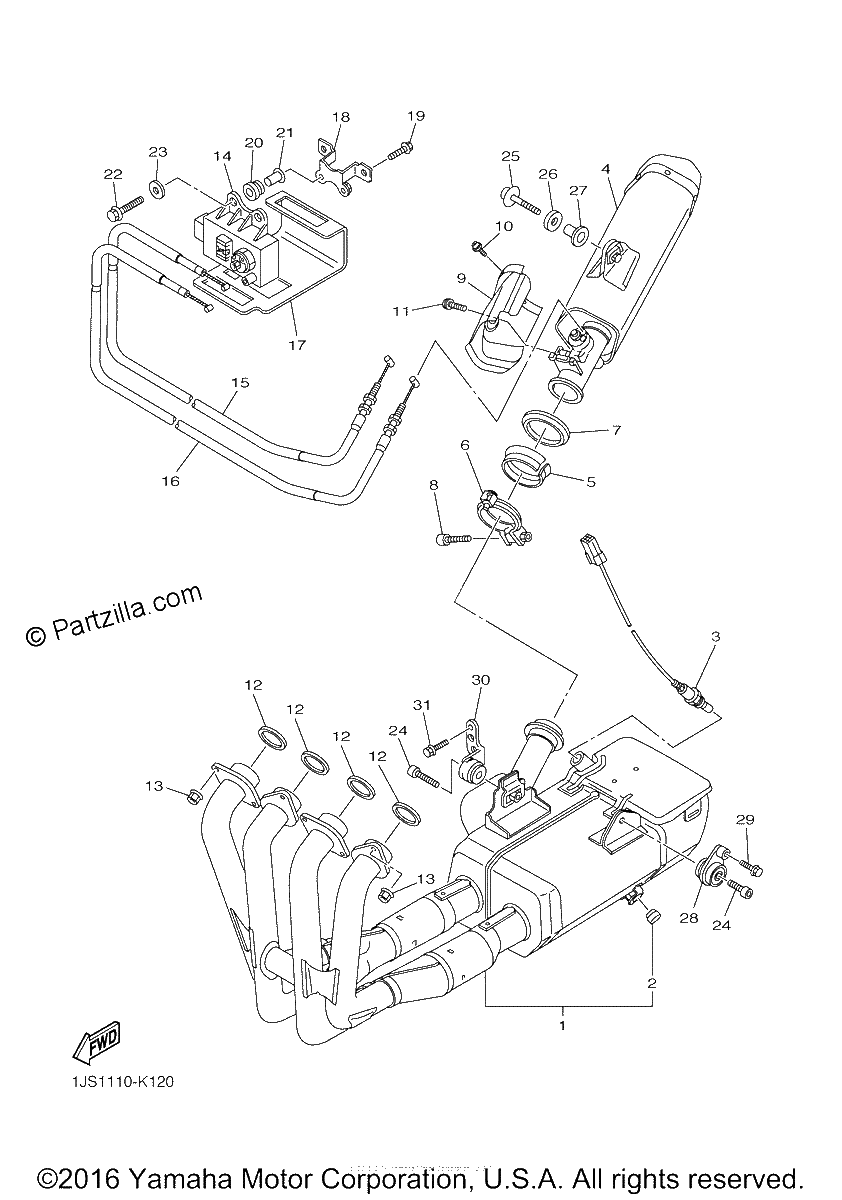

Diagrama de EXHAUST

Repuestos

#1
13S-14610-30-00
EXHAUST PIPE ASSY 1
$2337.94¢1 168 969
1
#2
4FM-24181-00-00
DAMPER,LOCATING 1
$13.63¢6 814
1
#3
13S-8592A-00-00
Sensor, Oxygen
$471.17¢235 583
1
#4
13S-14753-30-00
SILENCER, EXHAUST
$1467.39¢733 694
1
#5
2C0-14618-00-00
RING, STOPPER
$39.85¢19 924
1
#6
2C0-14725-00-00
BAND, MUFFLER
$84.39¢42 193
1
#7
2C0-14623-00-00
Gasket, Exhaust Pipe
$18.80¢9 401
1
#8
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#9
13S-14718-00-00
PROTECTOR, MUFFLER 1
$105.22¢52 613
1
#10
90111-06100-00
BOLT,HEX. SOCKET BUT (replaces 90111-06099-00)
$7.13¢3 565
1
#11
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#12
4FM-14613-00-00
GASKET, EXHAUST PIPE
$11.73¢5 865
1
#13
90179-08410-00
NUT
$5.51¢2 754
1
#14
2C0-85820-00-00
SERVO MOTOR ASSY
$493.25¢246 623
1
#15
13S-1133E-01-00
CABLE, PULLEY 1
$62.19¢31 096
1
#16
13S-1133F-01-00
CABLE, PULLEY 2
$62.61¢31 303
1
#17
2C0-2177F-00-00
Cover
$16.47¢8 234
1
#18
2C0-2116J-00-00
BRACKET 7
$16.84¢8 418
1
#19
95027-06025-00
BOLT,SMALL FLANGE
$3.47¢1 737
1
#20
90480-14005-00
Grommet
$3.68¢1 840
1
#21
90387-06158-00
COLLAR
$6.75¢3 375
1
#22
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
1
#23
90201-06M31-00
WASHER,PLATE
$3.29¢1 644
1
#24
91314-08035-00
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
1
#25
90110-08099-00
BOLT, HEXAGON SOCKET HEAD
$7.37¢3 686
1
#26
90201-087G2-00
WASHER, PLATE
$3.40¢1 702
1
#27
90387-08021-00
COLLAR
$9.33¢4 663
1
#28
13S-21446-00-00
STAY, MUFFLER 2
$84.15¢42 073
1
#29
90105-08054-00
Bolt, Flange
$7.11¢3 553
1
#30
13S-21445-00-00
STAY, MUFFLER 1
$76.79¢38 393
1
#31
95812-08020-00
Bolt, Flange
$1.85¢926
1
