REAR SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

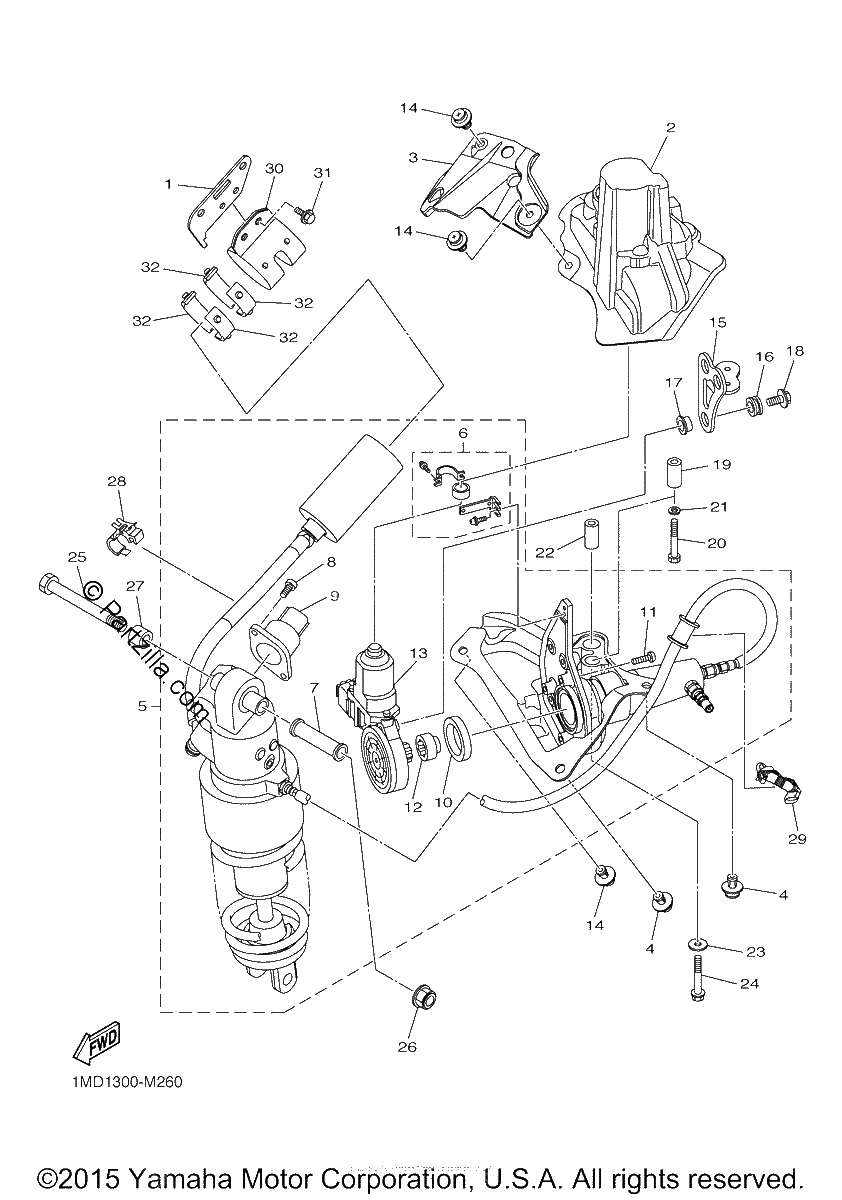

Diagrama de REAR SUSPENSION

Repuestos

#1
1MD-27333-00-00
BRACKET
$41.53¢20 763
1
#2
1MD-2117F-00-00
COVER
$120.52¢60 260
1
#3
1MD-2117N-00-00
COVER 3
$46.14¢23 069
1
#4
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#5
1MD-22210-11-00
SHOCK ABSORBER ASSY, REAR
$4928.89¢2 464 444
1
#6
1MD-2221A-00-00
BOLT STAY SET
$99.37¢49 686
1
#7
1MD-22216-00-00
BUSH, REAR SHOCK ABSORBER
$81.13¢40 566
1
#8
1MD-22242-00-00
BOLT 2
$1.46¢730
1
#9
1MD-85801-00-00
STEPPER MOTOR
$503.00¢251 499
1
#10
1MD-22215-00-00
RING, COVER
$21.30¢10 649
1
#11
1MD-22241-00-00
BOLT 1
$9.17¢4 583
1
#12
1MD-2222A-00-00
COLLAR
$82.96¢41 481
1
#13
1MD-86231-00-00
MOTOR COMP.
$343.72¢171 862
1
#14
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#15
1MD-27332-00-00
BRACKET
$62.65¢31 326
1
#16
90480-14003-00
GROMMET
$6.83¢3 415
1
#17
90387-06125-00
COLLAR
$6.53¢3 266
1
#18
90119-06147-00
BOLT, WITH WASHER
$0.78¢391
1
#19
90387-105G5-00
COLLAR
$8.06¢4 031
1
#20
97017-06045-00
BOLT
$2.86¢1 432
1
#21
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#22
90387-105G5-00
COLLAR
$8.06¢4 031
1
#23
90201-06085-00
WASHER, PLATE
$3.04¢1 518
1
#24
95817-06045-00
BOLT, FLANGE
$6.76¢3 381
1
#25
90101-12044-00
BOLT
$13.17¢6 584
1
#26
95602-12200-00
NUT, SELF-LOCKING
$4.19¢2 093
1
#27
90387-12028-00
COLLAR
$7.06¢3 530
1
#28
90464-15192-00
CLAMP
$6.75¢3 375
1
#29
90464-14012-00
CLAMP
$2.74¢1 368
1
#30
1MD-22262-00-00
HOLDER, SUB TANK
$63.08¢31 539
1
#31
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
1
#32
24X-22261-00-00
DAMPER, SUB TANK
$9.03¢4 514
1
