FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

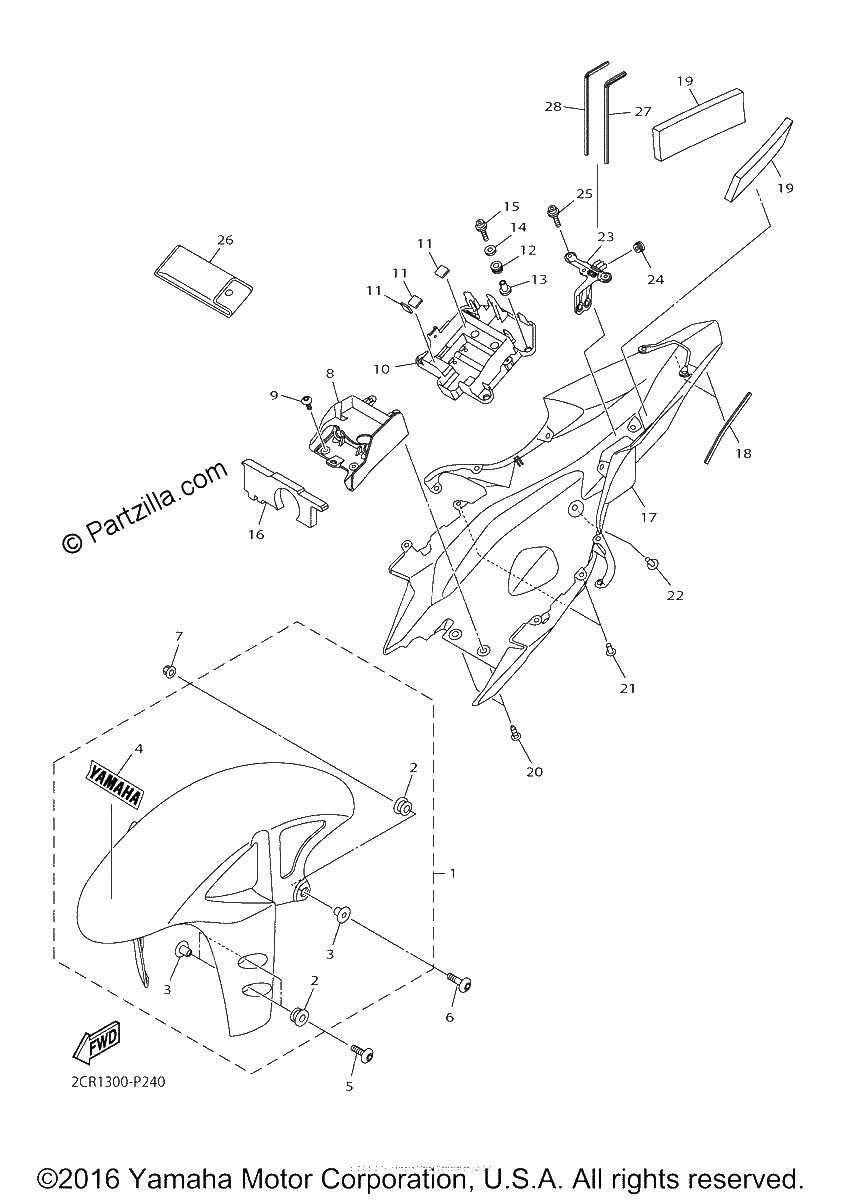

Diagrama de FENDER

Repuestos

#0
99247-00080-00
EMBLEM, YAMAHA
$13.01¢6 503
1
#0
14B-Y2151-30-P6
FRONT FENDER ASSY | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$222.93¢111 464
1
#0
14B-Y2151-40-P0
FRONT FENDER ASSY | Use for Color Black Metallic X ( SMX / 0903 )
$227.30¢113 649
1
#0
99244-00080-00
EMBLEM, YAMAHA
$14.98¢7 492
1
#1
14B-Y2151-20-P2
FRONT FENDER ASSY | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$222.84¢111 418
1
#2
90480-12072-00
GROMMET
$7.30¢3 651
1
#3
90387-06159-00
Collar
$6.99¢3 496
1
#4
99246-00080-00
EMBLEM,YAMAHA(4BP)
$19.41¢9 706
1
#5
90111-06043-00
BOLT, HEX. SOCKET BUTTON
$3.65¢1 823
1
#6
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.66¢1 829
1
#7
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#8
2CR-8212B-00-00
BOX, BATTERY 1
$42.95¢21 476
1
#9
90111-06116-00
BOLT, HEX. SOCKET BUTTON
$6.27¢3 134
1
#10
2CR-8212C-00-00
BOX, BATTERY 2
$25.16¢12 581
1
#11
13S-21649-00-00
DAMPER
$7.23¢3 617
1
#12
90480-13018-00
GROMMET
$6.83¢3 415
1
#13
90387-073M2-00
COLLAR
$8.00¢4 002
1
#14
90201-06088-00
WASHER, PLATE
$6.87¢3 433
1
#15
90110-06172-00
BOLT, HEXAGON SOCKET HEAD
$8.92¢4 462
1
#16
2CR-21638-00-00
DAMPER 1
$9.77¢4 887
1
#17
2CR-21611-00-00
FENDER, REAR
$41.12¢20 562
1
#18
3C5-2414H-00-00
DAMPER, PLATE 1
$5.21¢2 605
1
#19
90520-20003-00
DAMPER, PLATE
$6.87¢3 433
1
#20
90269-06008-00
RIVET
$8.10¢4 048
1
#21
90269-05005-00
RIVET
$3.29¢1 644
1
#22
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#23
2CR-2117E-00-00
BRACKET, TAILLIGHT
$23.72¢11 862
1
#24
90480-10003-00
GROMMET
$6.88¢3 439
1
#25
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#26
2CR-28100-00-00
TOOL KIT
$59.26¢29 630
1
#27
23P-28164-00-00
WRENCH, HEXAGON 8
$2.99¢1 495
1
#28
14B-28164-00-00
WRENCH, HEXAGON 8
$4.13¢2 064
1
