CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

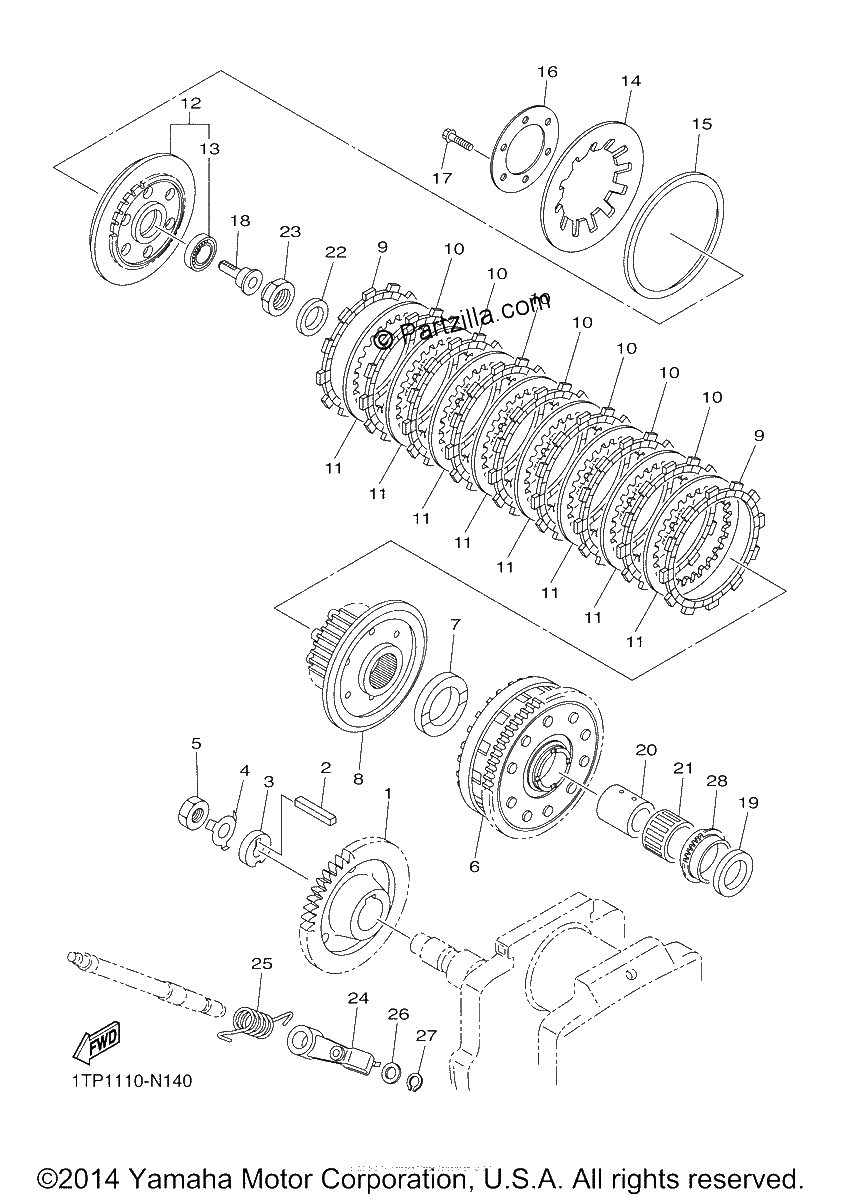

Diagrama de CLUTCH

Repuestos

#1
5S7-16111-00-00
GEAR, PRIMARY DRIVE
$289.57¢144 785
1
#2
4WM-16193-00-00
KEY, FEATHER
$7.64¢3 818
1
#3
3D8-16181-10-00
SPACER 1
$51.66¢25 829
1
#4
90215-18003-00
WASHER, LOCK
$9.58¢4 790
1
#5
90170-18008-00
NUT
$12.96¢6 480
1
#6
1TP-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$545.03¢272 516
1
#7
5YU-16154-00-00
PLATE, THRUST 1
$30.06¢15 031
1
#8
3D8-16371-00-00
BOSS, CLUTCH
$169.45¢84 726
1
#9
341-16321-20-00
PLATE, FRICTION
$15.55¢7 774
1
#10
5JW-16321-10-00
PLATE, FRICTION
$28.88¢14 438
1
#11
2H7-16325-00-00
PLATE, CLUTCH 2
$12.45¢6 227
1
#12
3D8-16350-00-00
PRESSURE PLATE ASSY
$115.10¢57 552
1
#13
93306-00315-00
BEARING
$30.60¢15 301
1
#14
5S7-16334-00-00
SPRING, CLUTCH 2
$78.29¢39 146
1
#15
36Y-16335-00-00
HOUSING, SPRING
$34.79¢17 394
1
#16
1TX-16352-00-00
PLATE, PRESSURE 2
$36.80¢18 400
1
#17
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.27¢1 633
1
#18
4XV-16356-01-00
ROD, PUSH 1
$56.00¢28 002
1
#19
3D8-16164-10-00
PLATE, THRUST 2
$61.87¢30 935
1
#20
90387-26006-00
COLLAR
$40.96¢20 481
1
#21
93310-33560-00
BEARING
$34.79¢17 394
1
#22
90208-20001-00
WASHER, CONICAL SPRING
$16.09¢8 044
1
#23
90179-20007-00
NUT
$13.93¢6 963
1
#24
5S7-16340-00-00
PUSH LEVER ASSY
$28.78¢14 392
1
#25
90508-18040-00
SPRING, TORSION
$4.69¢2 346
1
#26
90201-10029-00
WASHER, PLATE
$6.88¢3 439
1
#27
99009-10400-00
CIRCLIP
$4.28¢2 139
1
#28
3D8-13354-10-00
SPROCKET, DRIVE
$95.92¢47 961
1
