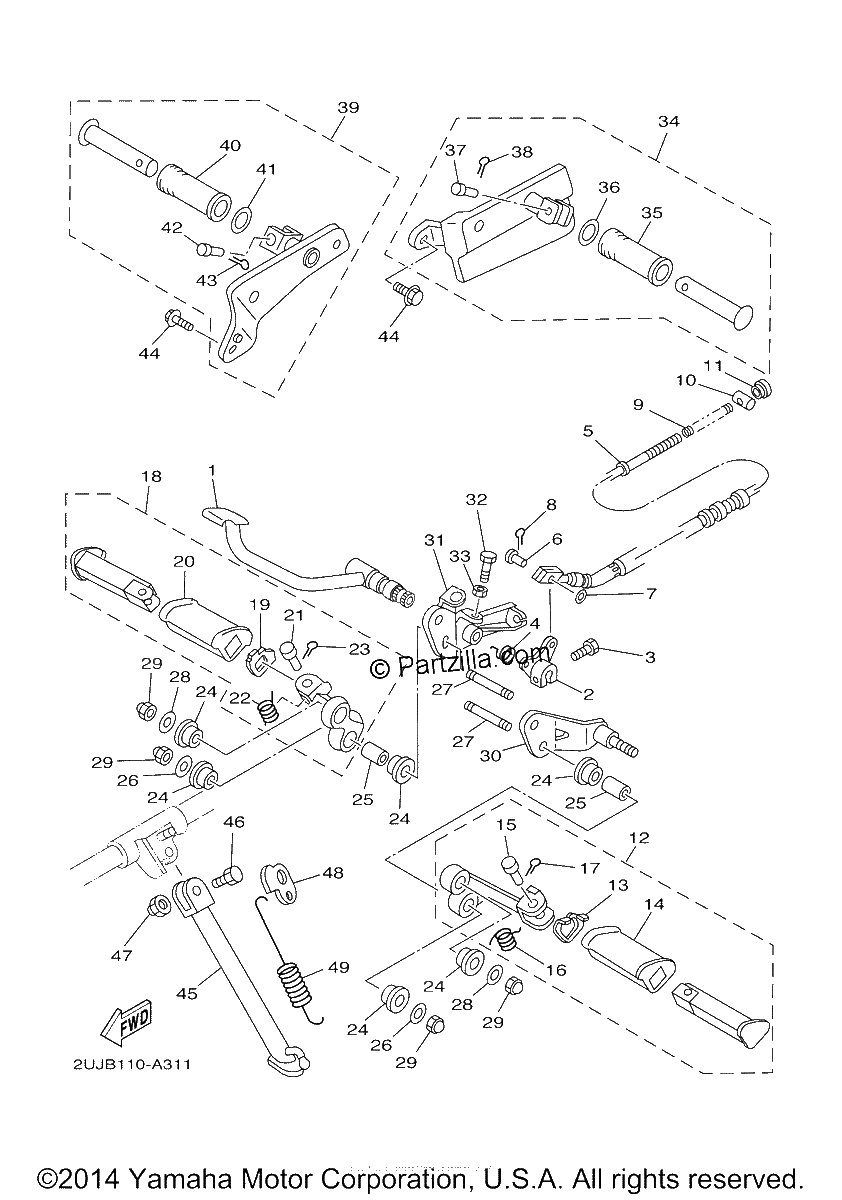

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PEDAL, BRAKE
$116.31¢58 156
#2
LEVER
$17.68¢8 838
#3
BOLT
$7.34¢3 669
#4
SPRING, RETURN
$7.64¢3 819
#5
CABLE, BRAKE
$146.31¢73 156
#6
PIN,CLEVIS (replaces 91702-06018-00)
$5.34¢2 669
#7
WASHER
$7.35¢3 675
#8
PIN, COTTER
$2.20¢1 100
#9
SPRING, COMPRESSION
$7.34¢3 669
#10
PIN
$7.34¢3 669
#11
NUT
$6.25¢3 125
#12
FRONT FOOTREST ASSY (LEFT)
$206.63¢103 313
#13
WASHER, FOOTREST
$4.60¢2 300
#14
COVER, FOOTREST
$30.76¢15 381
#15
PIN
$4.65¢2 325
#16
SPRING, TORSION
$3.89¢1 944
#17
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#18
FRONT FOOTREST ASSY (RIGHT)
$120.38¢60 188
#19
WASHER, FOOTREST
$4.60¢2 300
#20
COVER, FOOTREST
$30.76¢15 381
#21
PIN
$4.65¢2 325
#22
SPRING, TORSION
$3.89¢1 944
#23
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#24
DAMPER, FOOTREST
$10.22¢5 113
#25
COLLAR
$1.95¢975
#26
WASHER, PLATE
$7.99¢3 994
#27
BOLT, STUD
$3.01¢1 506
#28
WASHER, PLATE
$7.99¢3 994
#29
NUT
$17.25¢8 625
#30
BRACKET 4 | YB
$77.16¢38 581
#31
BRACKET 5 | YB
$244.34¢122 169
#32
SCREW, HEXAGON
$7.09¢3 544
#33
NUT(JN5)
$7.95¢3 975
#34
REAR FOOTREST ASSY 1 | SL
$92.71¢46 356
#35
COVER, REAR FOOTREST
$8.97¢4 488
#36
WASHER, PLATE
$8.24¢4 119
#37
PIN
$8.16¢4 081
#38
PIN, COTTER
$2.20¢1 100
#39
REAR FOOTREST ASSY 2 | SL
$91.33¢45 663
#40
COVER, REAR FOOTREST
$8.97¢4 488
#41
WASHER, PLATE
$8.24¢4 119
#42
PIN
$8.16¢4 081
#43
PIN, COTTER
$2.20¢1 100
#44
BOLT,FLANGE (2UJ)
$7.94¢3 969
#45
STAND, SIDE
$98.89¢49 444
#46
BOLT
$10.00¢5 000
#47
NUT,SELF-LOCKING
$7.94¢3 969
#48
LINK, SIDE STAND
$8.80¢4 400
#49
SPRING, SIDE STAND
$28.90¢14 450
