CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

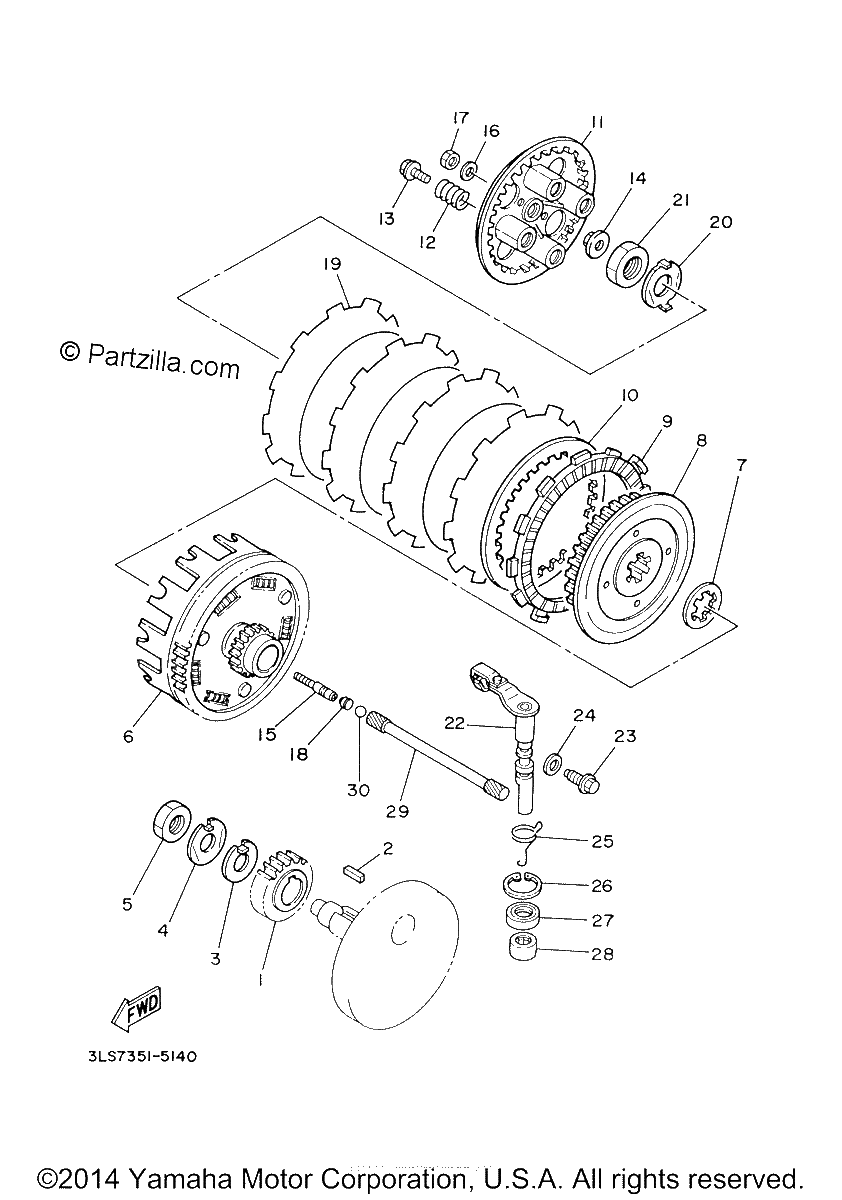

Diagrama de CLUTCH

Repuestos

#1
3Y6-16111-03-00
GEAR, PRIMARY DRIVE (23T)
$31.12¢15 559
1
#2
90282-07023-00
KEY, STRAIGHT
$9.12¢4 560
1
#3
90215-16156-00
WASHER, LOCK
$6.68¢3 341
1
#4
90215-16222-00
WASHER, LOCK
$8.83¢4 416
1
#5
90170-16343-00
NUT
$14.97¢7 486
1
#6
2UJ-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$369.76¢184 880
1
#7
30X-16154-00-00
PLATE, THRUST 1
$25.90¢12 949
1
#8
30X-16371-00-00
BOSS, CLUTCH
$154.77¢77 384
1
#9
5Y1-16331-01-00
PLATE, FRICTION 2
$28.40¢14 202
1
#10
3J2-16324-00-00
PLATE,CLUTCH 1
$11.50¢5 750
1
#11
30X-16351-02-00
PLATE, PRESSURE 1
$84.70¢42 349
1
#12
90501-26148-00
SPRING, COMPRESSION
$4.25¢2 128
1
#13
90159-06016-00
SCREW, WITH WASHER
$3.07¢1 535
1
#14
1W1-16358-01-00
PLATE, PUSH
$21.98¢10 988
1
#15
4DN-16356-00-00
ROD, PUSH 1
$27.76¢13 881
1
#16
92907-06200-00
WASHER
$6.76¢3 381
1
#17
95317-06600-00
NUT
$2.96¢1 478
1
#18
3YX-1635A-00-00
SEAL, ROD PUSH
$16.24¢8 119
1
#19
4H7-16321-02-00
PLATE, FRICTION
$21.98¢10 988
1
#20
90215-16320-00
WASHER, LOCK
$11.73¢5 865
1
#21
90170-16326-00
NUT
$12.06¢6 032
1
#22
2UJ-16380-00-00
PUSH LEVER ASSY
$46.02¢23 012
1
#23
90149-08067-00
SCREW,SPEC'L SHAPE
$4.98¢2 490
1
#24
90430-08119-00
GASKET
$6.36¢3 180
1
#25
90508-14433-00
SPRING, TORSION
$6.36¢3 180
1
#26
93420-28055-00
CIRCLIP,R-TYPE
$7.56¢3 778
1
#27
93102-14209-00
OIL SEAL,SD-TYPE
$10.70¢5 348
1
#28
93315-31428-00
BEARING
$35.59¢17 796
1
#29
2UJ-16357-00-00
ROD, PUSH 2
$19.11¢9 557
1
#30
93511-32027-00
BALL
$6.75¢3 375
1
