FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

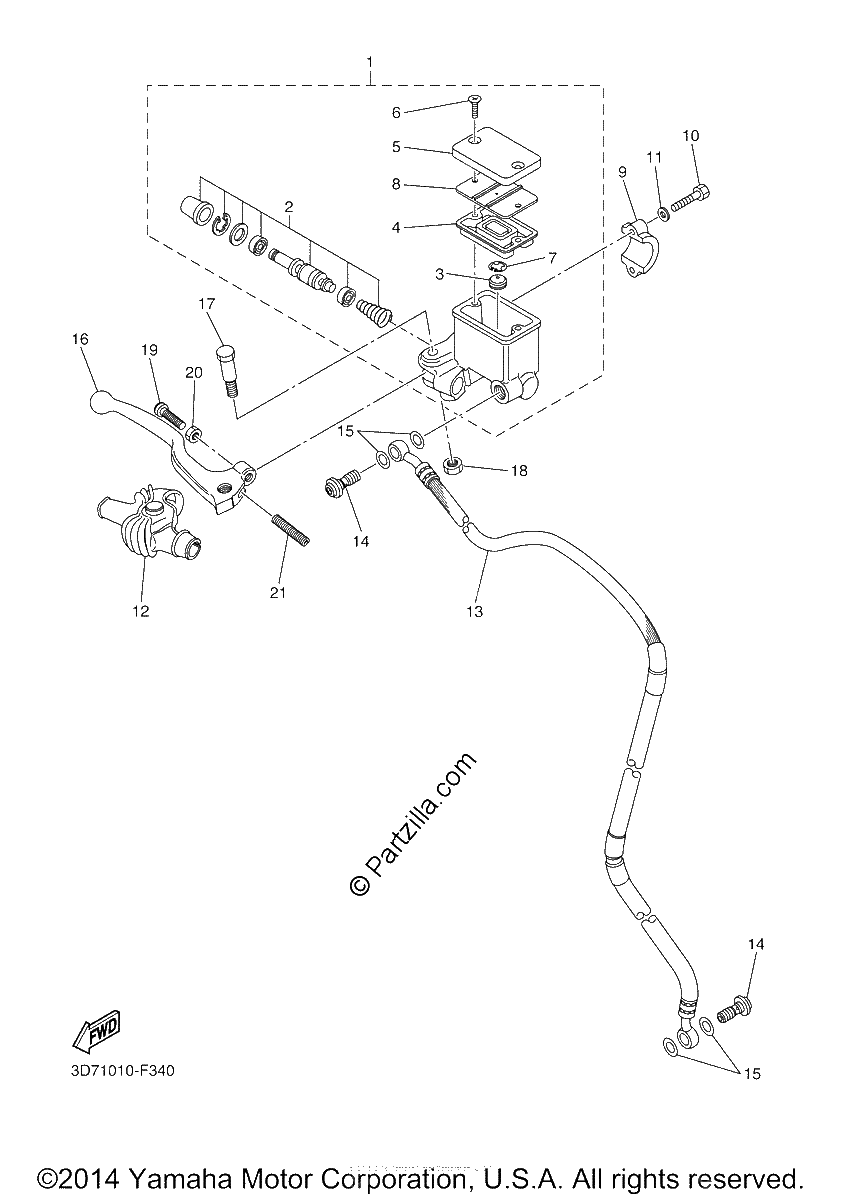

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
3D7-W2587-00-00
MASTER CYLINDER SUB ASSY
$203.52¢101 758
1
#2
5XT-W0041-00-00
CYLINDER KIT, MASTER
$35.67¢17 836
1
#3
5CG-25715-00-00
SEPARATOR ASSY
$11.59¢5 796
1
#4
55U-25854-00-00
DIAPHRAGM, RESERVOIR
$23.76¢11 879
1
#5
3GM-25852-22-00
CAP, RESERVOIR
$60.89¢30 446
1
#6
98707-04012-00
SCREW, FLAT HEAD
$1.58¢788
1
#7
5CG-2585G-00-00
CIRCLIP
$5.40¢2 702
1
#8
3GM-2585B-20-00
PLATE, DIAPHRAGM
$18.24¢9 119
1
#9
56A-25867-00-00
BRACKET, MASTER CYLINDER
$27.01¢13 507
1
#10
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.27¢1 633
1
#11
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#12
1T5-26372-00-00
COVER,HANDLE LEVER
$19.56¢9 781
1
#13
3D7-25872-00-00
HOSE, BRAKE 1
$120.81¢60 404
1
#14
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#15
90430-10005-00
GASKET
$7.72¢3 858
1
#16
55Y-83922-02-00
LEVER 2
$37.97¢18 987
1
#17
90109-06577-00
BOLT
$5.90¢2 950
1
#18
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#19
90149-06131-00
SCREW
$6.75¢3 375
1
#20
90170-06021-00
NUT
$3.21¢1 604
1
#21
90501-10312-00
SPRING,COMPRESSION
$6.75¢3 375
1
