SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

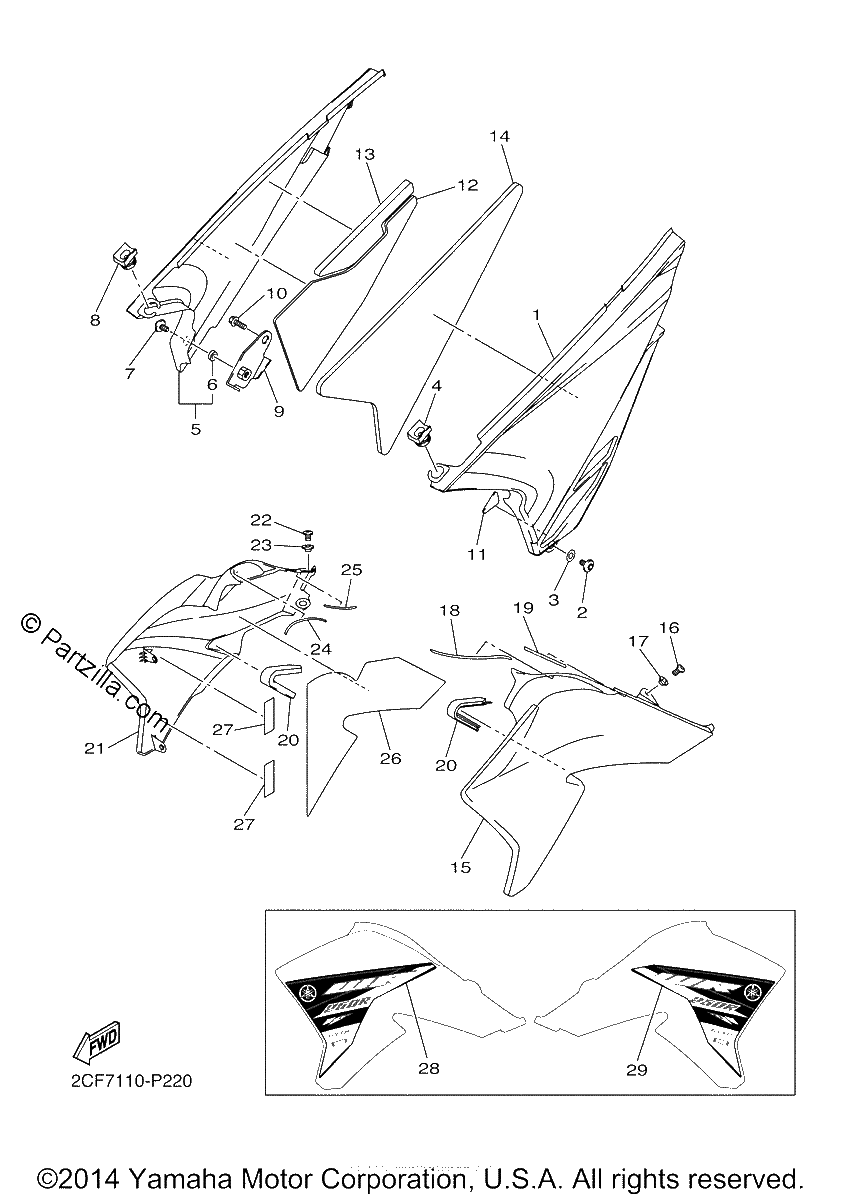

Diagrama de SIDE COVER

Repuestos

#1
3D7-21711-00-00
COVER, SIDE 1
$30.77¢15 387
1
#2
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#3
90201-06020-00
WASHER, PLATE (replaces 90201-06058-00)
$6.88¢3 439
1
#4
3D7-21719-00-00
GROMMET
$5.84¢2 921
1
#5
3D7-21721-00-00
COVER, SIDE 2
$23.48¢11 742
1
#6
90387-07022-00
COLLAR
$5.65¢2 823
1
#7
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#8
3D7-21719-00-00
GROMMET
$5.84¢2 921
1
#9
3D7-2172E-00-00
STAY, SIDE COVER 1
$8.21¢4 105
1
#10
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#11
3D7-2174X-00-00
DAMPER
$5.21¢2 605
1
#12
32C-21746-00-00
DAMPER
$27.43¢13 714
1
#13
32C-21747-00-00
DAMPER
$6.43¢3 214
1
#14
32C-2174Y-00-00
DAMPER
$32.18¢16 089
1
#15
3D7-2137W-00-00
SCOOP, AIR 1
$66.99¢33 494
1
#16
98980-06010-00
SCREW,BIND (replaces 98902-06010-00)
$6.43¢3 214
1
#17
90387-062M9-00
COLLAR
$7.24¢3 622
1
#18
3D7-2414H-00-00
DAMPER, PLATE 1
$5.21¢2 605
1
#19
3D7-2414J-00-00
DAMPER, PLATE 2
$5.21¢2 605
1
#20
3D7-24175-00-00
SPACER 2
$13.48¢6 739
1
#21
3D7-2137X-00-00
SCOOP, AIR 2
$65.25¢32 625
1
#22
98980-06010-00
SCREW,BIND (replaces 98902-06010-00)
$6.43¢3 214
1
#23
90387-062M9-00
COLLAR
$7.24¢3 622
1
#24
3D7-2414H-00-00
DAMPER, PLATE 1
$5.21¢2 605
1
#25
3D7-2414J-00-00
DAMPER, PLATE 2
$5.21¢2 605
1
#26
3D7-2414K-00-00
DAMPER, PLATE 3
$82.90¢41 452
1
#27
3D7-2173T-00-00
TAPE 1
$7.31¢3 657
1
#28
2CF-2137N-00-00
GRAPHIC 1
$85.88¢42 941
1
#29
2CF-2137P-00-00
GRAPHIC 2
$62.95¢31 476
1
