FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

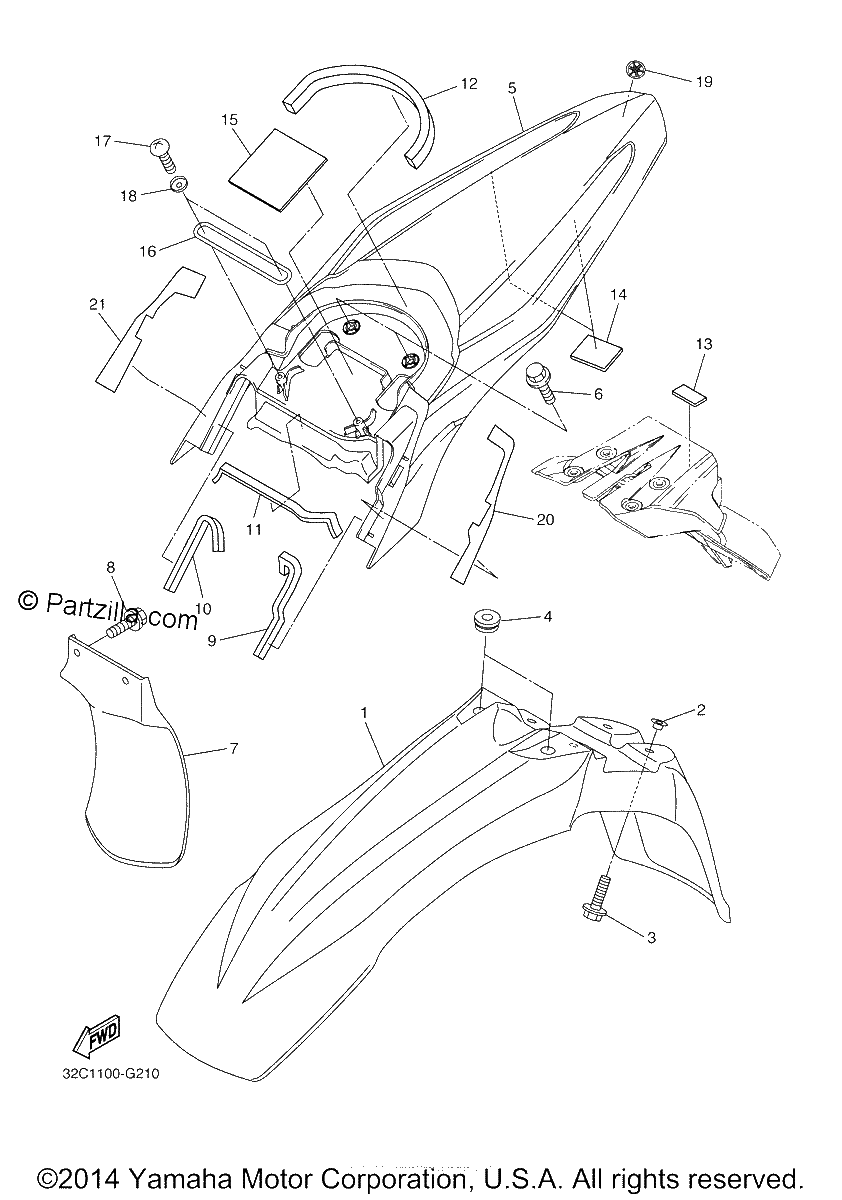

Diagrama de FENDER

Repuestos

#1
3D7-21511-00-00
FENDER, FRONT
$42.55¢21 275
1
#2
90387-06681-00
COLLAR
$7.88¢3 938
1
#3
90119-06147-00
BOLT, WITH WASHER
$0.85¢425
1
#4
90480-13014-00
GROMMET
$8.16¢4 081
1
#5
3D7-21611-00-00
FENDER, REAR
$49.16¢24 581
1
#6
90119-06114-00
BOLT, WITH WASHER
$7.95¢3 975
1
#7
3D7-21642-00-00
GUARD, FLAP
$29.15¢14 575
1
#8
90119-06137-00
BOLT, WITH WASHER
$7.43¢3 713
1
#9
3D7-21638-00-00
DAMPER 1
$5.66¢2 831
1
#10
3D7-21638-10-00
DAMPER 1
$5.66¢2 831
1
#11
3D7-21639-00-00
DAMPER 2
$5.96¢2 981
1
#12
3D7-21639-10-00
DAMPER 2
$4.26¢2 131
1
#13
3D7-21649-00-00
DAMPER
$8.19¢4 094
1
#14
3D7-21649-10-00
DAMPER
$5.66¢2 831
1
#15
3D7-2174T-00-00
INSULATOR, SIDE COVER 2
$6.67¢3 338
1
#16
93210-63003-00
O-RING
$7.56¢3 781
1
#17
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
1
#18
90209-05008-00
WASHER
$5.70¢2 850
1
#19
3C5-2411B-00-00
EMBLEM
$7.08¢3 538
1
#20
3D7-216A2-00-00
SEAL, 2
$14.51¢7 256
1
#21
3D7-216A3-00-00
SEAL, 3
$14.51¢7 256
1
