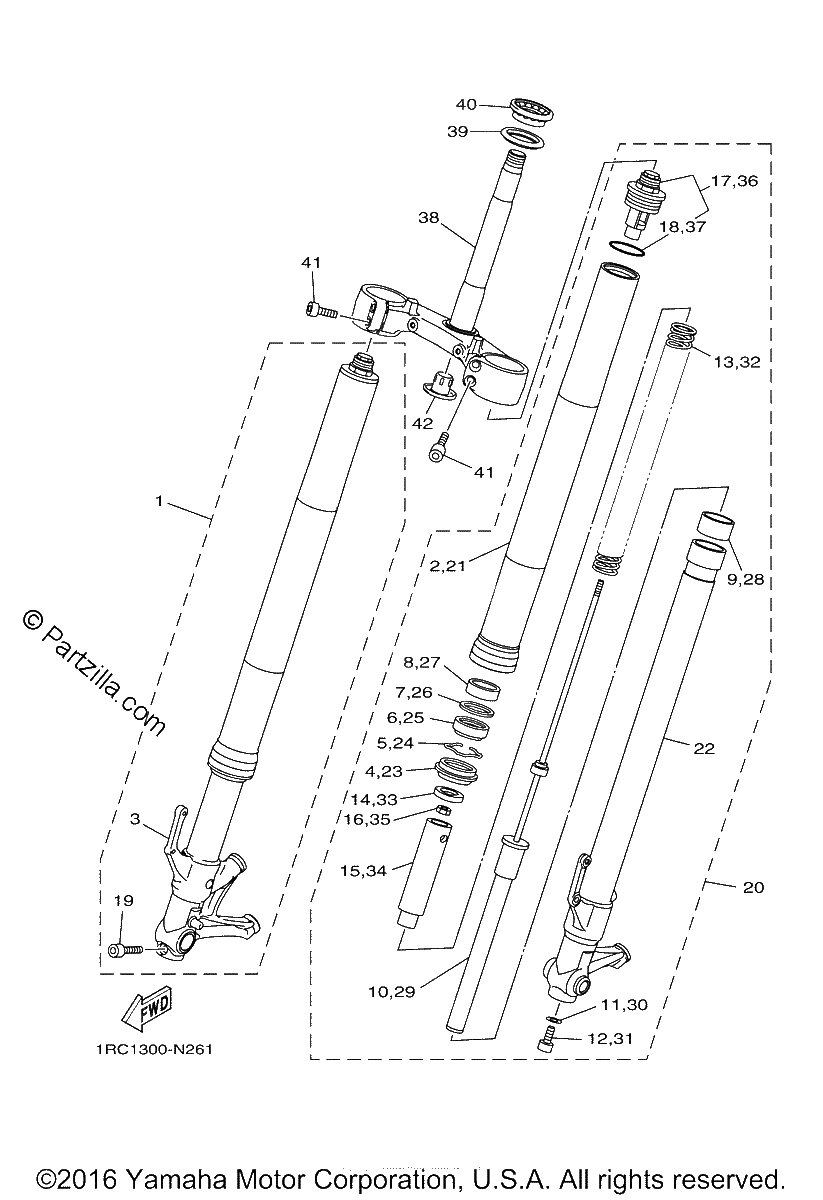

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (R.H)
$902.49¢451 244
#2
TUBE, OUTER (L.H)
No Disponible
#3
INNER TUBE COMP. 2
$385.85¢192 925
#4
SEAL, DUST
$23.21¢11 606
#5
RING, SNAP
$7.88¢3 938
#6
OIL SEAL
$28.90¢14 450
#7
WASHER, OIL SEAL
$26.29¢13 144
#8
METAL, SLIDE 1
$14.75¢7 375
#9
METAL, SLIDE
$24.28¢12 138
#10
CYLINDER COMP., FRONT FORK
$317.21¢158 606
#11
GASKET | (KYB)
$17.09¢8 544
#12
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#13
SPRING, FRONT FORK
$83.77¢41 887
#14
WASHER
$12.75¢6 375
#15
SPACER
$16.35¢8 175
#16
NUT
$7.91¢3 956
#17
BOLT, CAP
$290.51¢145 256
#18
O-RING
$8.03¢4 013
#19
BOLT, HEXAGON SOCKET HEAD
$2.94¢1 469
#20
FRONT FORK ASSY (L.H)
$760.54¢380 269
#21
TUBE, OUTER (L.H)
No Disponible
#22
INNER TUBE COMP. 1
$378.31¢189 156
#23
SEAL, DUST
$23.21¢11 606
#24
RING, SNAP
$7.88¢3 938
#25
OIL SEAL
$28.90¢14 450
#26
WASHER, OIL SEAL
$26.29¢13 144
#27
METAL, SLIDE 1
$14.75¢7 375
#28
METAL, SLIDE
$24.28¢12 138
#29
CYLINDER COMP., FRONT FORK
$361.73¢180 863
#30
GASKET | (KYB)
$17.09¢8 544
#31
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#32
SPRING, FRONT FORK
$83.77¢41 887
#33
WASHER
$12.75¢6 375
#34
SPACER
$16.35¢8 175
#35
NUT
$7.91¢3 956
#36
BOLT, CAP
$283.49¢141 744
#37
O-RING
$8.03¢4 013
#38
UNDER BRACKET COMP.
$520.11¢260 056
#39
SEAL, STEERING
$25.53¢12 763
#40
BEARING
$66.19¢33 094
#41
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
#42
COVER, UNDER 1
$14.65¢7 325
