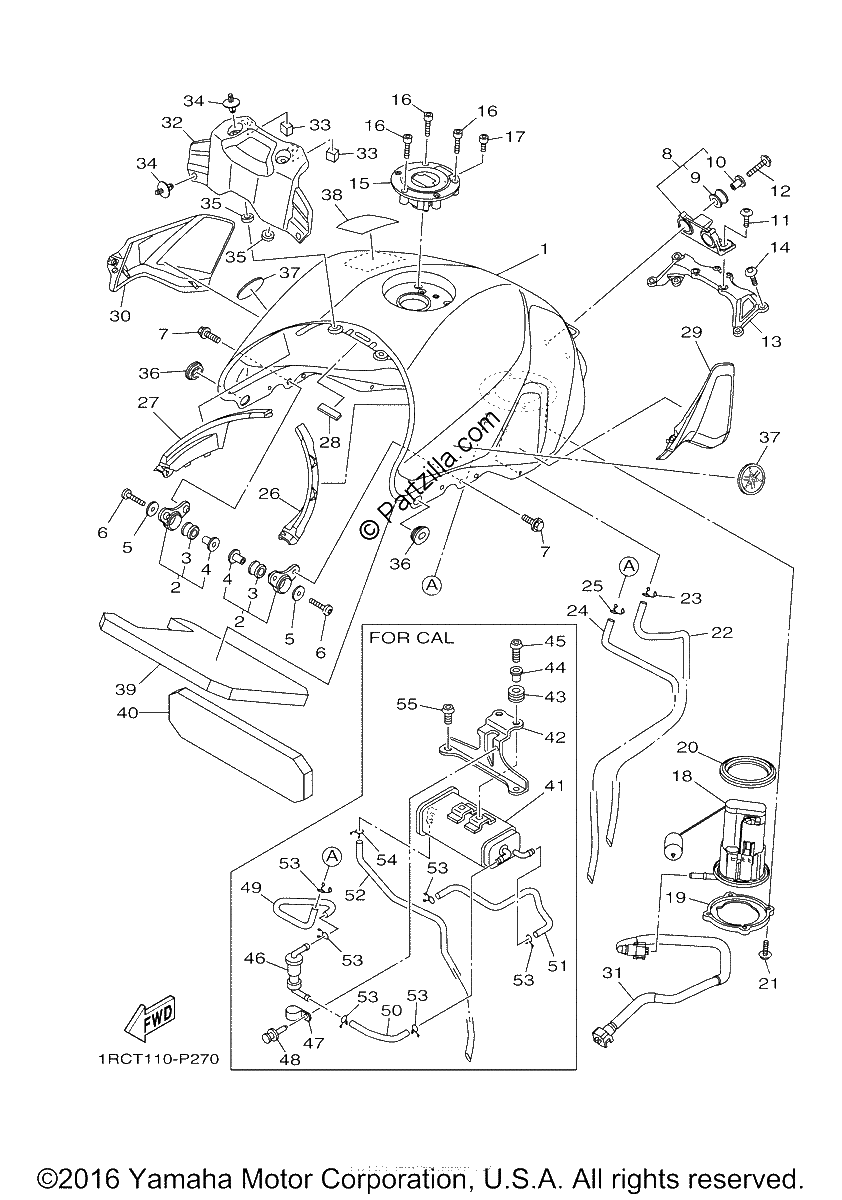

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
FUEL TANK COMP. | Use for Color REDDISH YELLOW COCKTAIL 1 ( RYC1 / 0251 )
$967.31¢483 655
#0
FUEL TANK COMP. | UR FOR MNM3
$915.39¢457 694
#1
FUEL TANK COMP.
$915.39¢457 694
#2
TANK BRACKET ASSY (replaces 23P-24104-01-00)
$55.90¢27 951
#3
GROMMET
$3.48¢1 742
#4
COLLAR
$4.30¢2 151
#5
WASHER, PLATE
$7.01¢3 507
#6
BOLT, BUTTON HEAD
$1.89¢943
#7
BOLT, WITH WASHER
$6.88¢3 439
#8
TANK BRACKET ASSY
$47.48¢23 742
#9
GROMMET
$3.61¢1 805
#10
COLLAR
$6.22¢3 111
#11
BOLT, HEX. SOCKET BUTTON
$5.16¢2 582
#12
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
#13
BRACKET, TANK FITTING
$45.23¢22 615
#14
BOLT, BUTTON HEAD
$2.79¢1 397
#15
CAP ASSY
$287.60¢143 802
#16
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#17
BOLT
$5.39¢2 697
#18
FUEL PUMP COMP.
$426.33¢213 164
#19
BRACKET, FUEL PUMP
$27.00¢13 501
#20
O-RING
$26.89¢13 443
#21
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#22
PIPE 5
$14.40¢7 199
#23
Clip
$2.74¢1 368
#24
PIPE 6 | FOR U49
$13.03¢6 515
#25
Clip
$2.74¢1 368
#26
MOLE, FUEL TANK 1
$33.92¢16 963
#27
MOLE, FUEL TANK 2
$33.92¢16 963
#28
MOLD, FUEL TANK
$37.97¢18 987
#29
TANK SIDE COVER ASSY 1
$40.78¢20 390
#30
TANK SIDE COVER ASSY 2
$43.13¢21 563
#31
PIPE, FUEL 1
$71.37¢35 685
#32
COVER, TANK
$27.98¢13 990
#33
DAMPER, PLATE
$1.02¢512
#34
RIVET
$7.59¢3 795
#35
DAMPER
$5.93¢2 967
#36
Grommet
$4.31¢2 156
#37
EMBLEM
$21.98¢10 988
#38
LABEL, WARNING GENERAL INFO.
$3.40¢1 702
#39
DAMPER, PLATE 1
$16.03¢8 015
#39
Clip
$2.74¢1 368
#40
DAMPER, PLATE 2
$10.86¢5 428
#41
CANISTER ASSY | FOR CAL
$271.87¢135 936
#42
BRACKET, CANISTOR | FOR CAL
$49.47¢24 737
#43
GROMMET
$6.83¢3 415
#44
COLLAR | FOR CALIFORNIA
$6.22¢3 111
#45
BOLT, BUTTON HEAD
$6.82¢3 410
#46
ROLL OVER VALVE ASSY | FOR CAL
$56.99¢28 497
#47
Clamp
$2.16¢1 081
#48
RIVET | FOR CAL
$2.27¢1 133
#49
PIPE 2 | FOR CAL
$34.19¢17 095
#50
PIPE 3 | FOR CAL
$16.33¢8 165
#51
PIPE 4 | FOR CAL
$38.49¢19 245
#52
PIPE 10 | FOR CAL
$23.87¢11 937
#54
CLIP | FOR CALIFORNIA
$6.99¢3 496
#55
BOLT, BUTTON HEAD
$2.74¢1 368
