FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

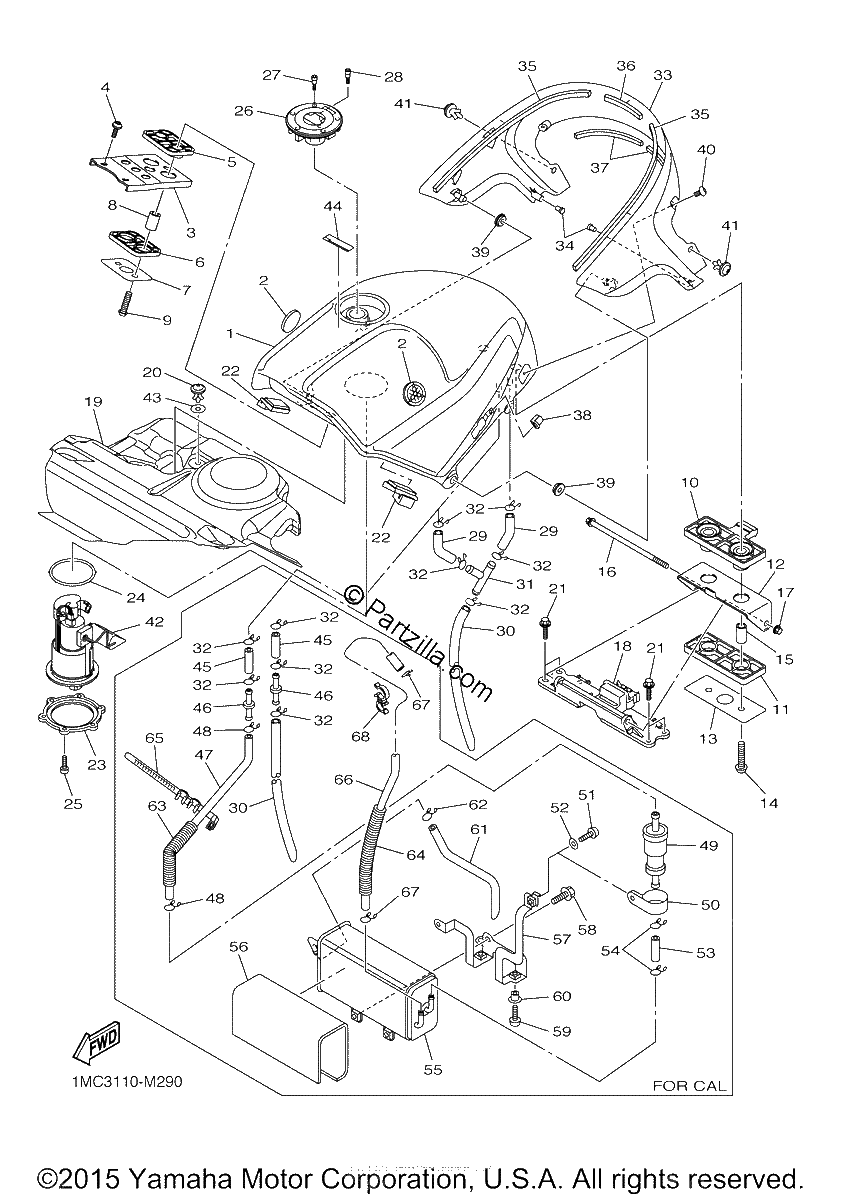

Diagrama de FUEL TANK

Repuestos

#1
3P6-YK241-00-PD
FUEL TANK COMP.
$1279.01¢639 504
1
#2
1MC-2414B-00-00
EMBLEM
$87.30¢43 648
1
#3
5JW-24191-00-00
BRACKET, FUEL TANK 1
$26.22¢13 110
1
#4
90149-06302-00
SCREW
$4.70¢2 352
1
#5
5JW-24181-00-00
DAMPER, LOCATING 1
$11.29¢5 647
1
#6
5JW-24182-00-00
DAMPER, LOCATING 2
$9.13¢4 566
1
#7
5JW-24187-00-00
WASHER, SPECIAL
$6.12¢3 059
1
#8
90387-0813V-00
COLLAR
$4.81¢2 403
1
#9
92012-08035-00
BOLT, BUTTON HEAD
$4.13¢2 064
1
#10
3P6-24183-00-00
DAMPER, LOCATING 3
$14.06¢7 032
1
#11
5JW-24184-00-00
DAMPER, LOCATING 4
$21.08¢10 540
1
#12
5JW-24192-01-00
BRACKET, FUEL TANK 2
$27.54¢13 771
1
#13
5JW-24186-00-00
WASHER, SPECIAL
$7.88¢3 939
1
#14
92012-08035-00
BOLT, BUTTON HEAD
$4.13¢2 064
1
#15
90387-0813V-00
COLLAR
$4.81¢2 403
1
#16
95817-08160-00
BOLT, FLANGE
$14.62¢7 308
1
#17
95702-08500-00
NUT, FLANGE
$0.91¢454
1
#18
3P6-21348-00-00
BRACKT, TANK FITTING
$38.80¢19 401
1
#19
1MC-2416F-00-00
INSULATOR, FUEL TANK 1
$121.81¢60 904
1
#20
90269-06081-00
RIVET
$6.23¢3 117
1
#21
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
1
#22
3P6-24184-00-00
DAMPER, LOCATING 4
$13.35¢6 676
1
#23
1MC-24491-00-00
BRACKET, FUEL PUMP
$28.61¢14 306
1
#24
19B-24486-01-00
O-RING
$40.92¢20 458
1
#25
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#26
39P-24602-10-00
CAP ASSY
$287.60¢143 802
1
#27
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#28
91312-05010-00
BOLT
$5.39¢2 697
1
#29
90445-113E8-00
HOSE (L120)
$4.19¢2 093
1
#30
90445-11036-00
HOSE
$18.75¢9 373
1
#31
90413-07007-00
WAY 3
$9.37¢4 686
1
#32
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#33
3P6-24129-10-P0
COVER, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$433.27¢216 637
1
#34
90338-07180-00
PLUG
$6.22¢3 111
1
#35
3P6-2414H-00-00
DAMPER, PLATE 1
$5.99¢2 996
1
#36
3P6-2414J-00-00
DAMPER, PLATE 2
$3.43¢1 713
1
#37
2D1-2414R-00-00
DAMPER, PLATE 6
$7.28¢3 640
1
#38
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.04¢3 519
1
#39
90480-01558-00
Grommet
$4.31¢2 156
1
#39
90445-11065-00
HOSE (L30) | FOR CALIFORNIA
$3.48¢1 742
1
#40
90111-05023-00
BOLT, HEX. SOCKET BUTTON
$7.07¢3 536
1
#41
90269-06081-00
RIVET
$6.23¢3 117
1
#42
5JW-13907-22-00
FUEL PUMP COMP.
$626.30¢313 151
1
#43
90202-06008-00
WASHER, PLATE
$4.28¢2 139
1
#44
1TP-2118K-A1-00
LABEL, CAUTION
$6.59¢3 295
1
#45
90445-11066-00
HOSE | FOR CALIFORNIA
$3.52¢1 759
1
#46
4XY-14568-00-00
JOINT
$6.51¢3 254
1
#47
1MC-24312-00-00
PIPE 2 | FOR CALIFORNIA
$71.14¢35 570
1
#48
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#49
5PX-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$57.60¢28 802
1
#50
90464-15014-00
Clamp
$2.16¢1 081
1
#51
98580-05012-00
SCREW, PAN HEAD
$6.14¢3 070
1
#52
92990-05600-00
WASHER, PLATE
$0.61¢305
1
#54
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#55
3P6-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$333.12¢166 560
1
#56
3P6-2414E-00-00
SEAL 2 | FOR CALIFORNIA
$14.03¢7 015
1
#57
3P6-2419F-01-00
BRACKET, CANISTOR | FOR CALIFORNIA
No Disponible
1
#58
95814-06012-00
BOLT, FLANGE | FOR CALIFORNIA
$2.50¢1 248
1
#59
92014-06012-00
BOLT,BUTTON HEAD
$2.71¢1 357
1
#60
90387-0603J-00
COLLAR | FOR CALIFORNIA
$8.97¢4 485
1
#61
3P6-24314-00-00
PIPE 4 | FOR CALIFORNIA
$54.26¢27 129
1
#62
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#63
3P6-24327-00-00
PROTECTOR, PIPE | FOR CALIFORNIA
$17.72¢8 861
1
#64
3P6-2432A-00-00
PROTECTOR, PIPE 2 | FOR CALIFORNIA
$22.29¢11 143
1
#65
90464-10009-00
CLAMP | FOR CALIFORNIA
$4.76¢2 380
1
#66
1MC-1443J-00-00
PIPE | FOR CALIFORNIA
$95.45¢47 725
1
#67
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#68
90464-28153-00
CLAMP | FOR CALIFORNIA
$2.64¢1 322
1
