FENDER

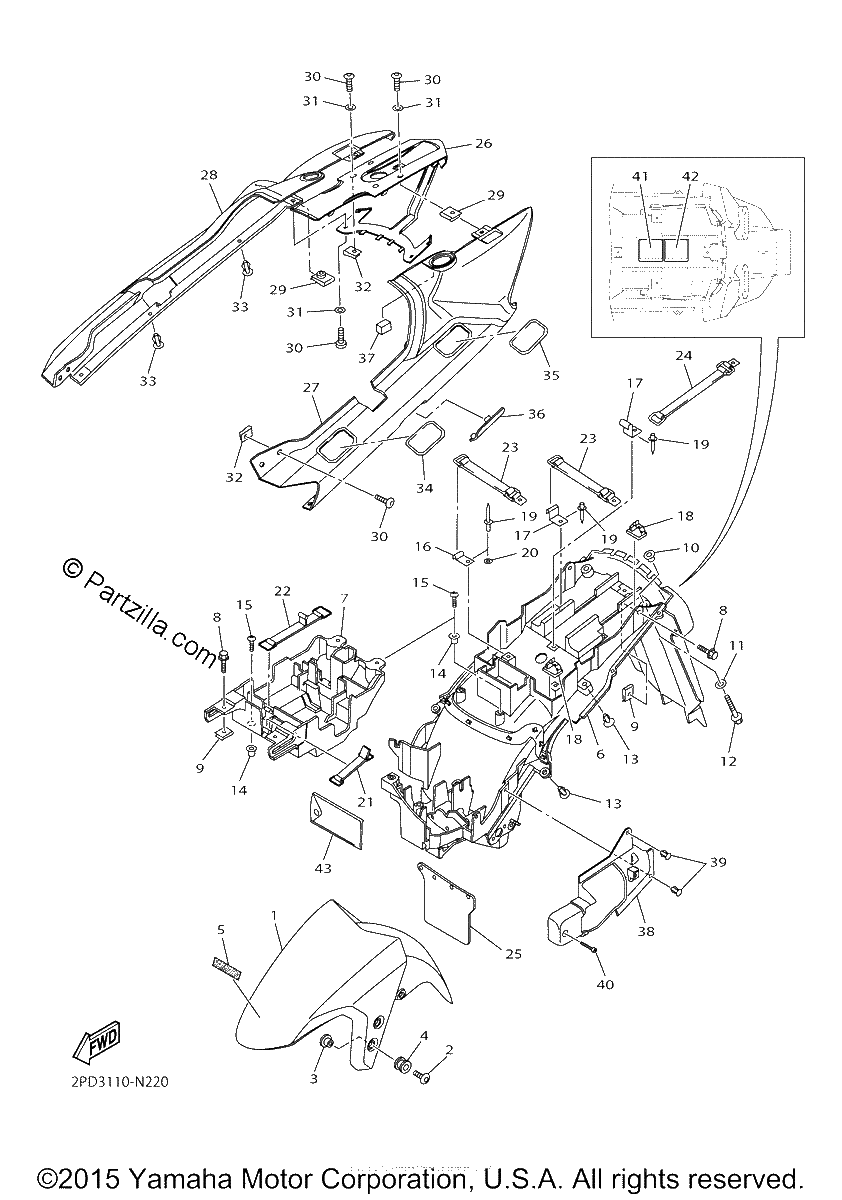

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FENDER, FRONT
$203.65¢101 827
#2
BOLT, HEX. SOCKET BUTTON
$3.65¢1 823
#3
Collar
$6.99¢3 496
#4
GROMMET
$7.30¢3 651
#5
EMBLEM, YAMAHA
$4.91¢2 455
#6
FENDER, REAR
$403.35¢201 676
#7
BOX
$144.84¢72 421
#8
BOLT, WITH WASHER
$6.88¢3 439
#9
NUT, SPRING
$7.11¢3 553
#10
COLLAR
$4.97¢2 484
#11
WASHER, PLATE
$7.77¢3 887
#12
BOLT,FLANGE (replaces 95812-06040-00)
$4.98¢2 490
#13
RIVET
$6.23¢3 117
#14
PLUG
$1.78¢891
#15
SCREW, TAPPING
$1.35¢673
#16
HOOK
$3.73¢1 863
#17
HOOK
$4.15¢2 076
#18
CLAMP
$4.22¢2 110
#19
RIVET, BLIND
$6.75¢3 375
#20
WASHER, PLAIN
$1.24¢621
#21
BAND
$5.51¢2 754
#22
BAND, BATTERY
$26.46¢13 231
#23
BAND
$11.40¢5 698
#24
BAND
$8.69¢4 347
#25
FLAP
$22.18¢11 092
#26
COVER, REAR FENDER | DNMN
$123.36¢61 680
#27
COVER, TAIL 1 | DNMN
$231.39¢115 696
#28
COVER, TAIL 2 | DNMN
$354.07¢177 037
#29
NUT, SPRING
$2.92¢1 461
#30
BOLT, HEX. SOCKET BUTTON
$7.11¢3 553
#31
WASHER, PLATE
$7.05¢3 525
#32
NUT, SPRING
$4.88¢2 438
#33
RIVET
$6.23¢3 117
#34
COVER, REAR FENDER
$36.12¢18 061
#35
COVER, REAR FENDER
$36.12¢18 061
#36
COVER, REAR FENDER
$35.89¢17 946
#37
DAMPER
$7.23¢3 617
#38
COVER, REAR FENDER 1
$14.55¢7 274
#39
RIVET
$6.23¢3 117
#40
SCREW, TAPPING
$2.23¢1 116
#41
PLATE, ROUTING | FOR CALIFORNIA
$9.37¢4 686
#42
PLATE, ROUTING 2 | FOR CALIFORNIA
$9.91¢4 956
#43
TOOL KIT
$84.97¢42 487
