FUEL TANK ADS AEF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

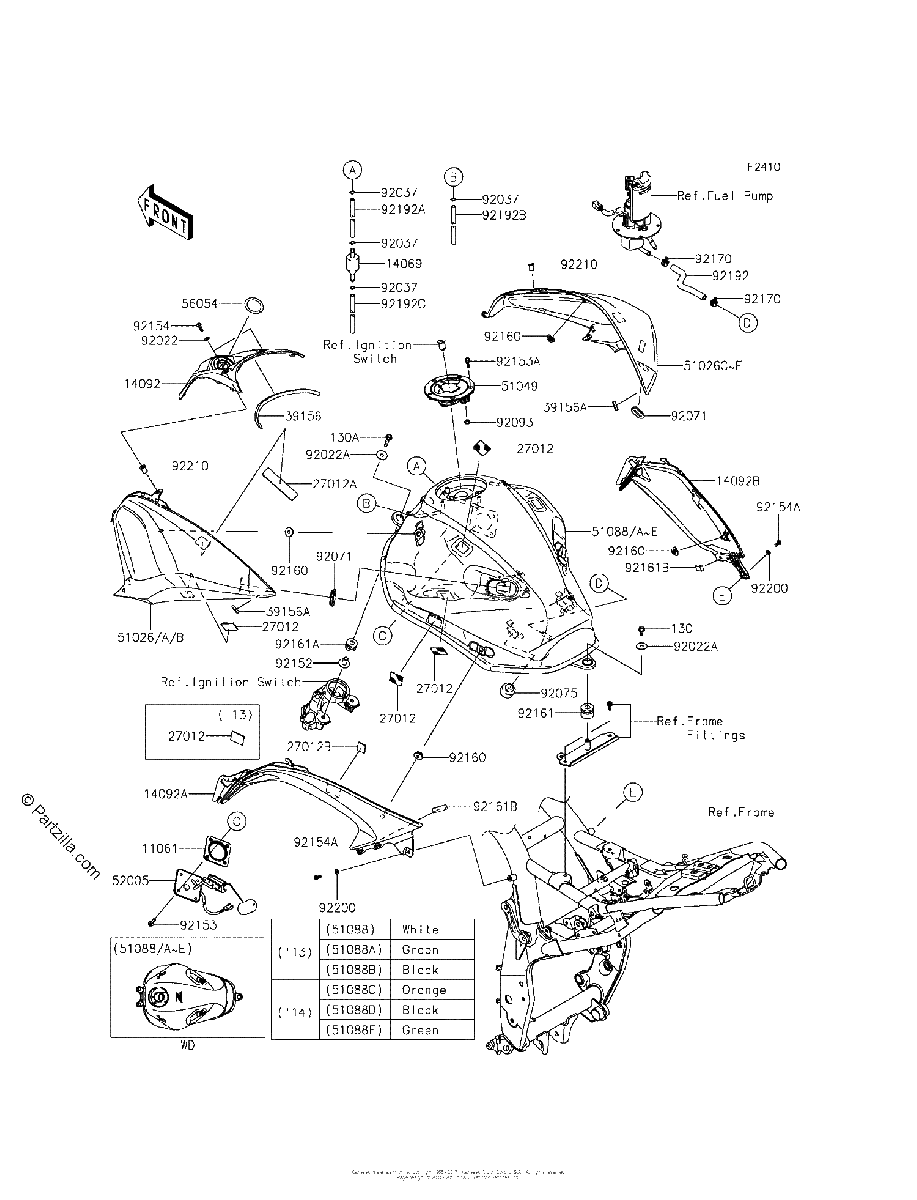

Diagrama de FUEL TANK ADS AEF

Repuestos

#130
130BA0614
BOLT FLANGED,6X14
$1.16¢581
1
#130A
130BA0630
BOLT-FLANGED,6X30
$1.36¢678
1
#11061
11061-0797
GASKET,FUEL GAUGE
$19.31¢9 654
1
#14069
14069-0008
BREATHER,TANK
$6.18¢3 088
1
#14092
14092-1090
COVER,IGNITION SWITCH
No Disponible
1
#14092B
14092-1092
COVER,KNEE GRIP,Right Hand
$50.53¢25 265
1
#14092A
14092-1091
COVER,KNEE GRIP,Left Hand
$53.30¢26 651
1
#27012
27012-0170
HOOK
$5.22¢2 610
1
#27012A
27012-0746
HOOK,DUAL LOCK,20X90
$12.22¢6 112
1
#27012B
27012-0772
HOOK,20X20X3.0
$3.42¢1 708
1
#39156
39156-0995
PAD,IGNITION SWITCH
No Disponible
1
#39156A
39156-0999
PAD,5X20X3
$1.46¢730
1
#51026
51026-0053-35L
COVER TANK,Left Hand,F EBONY
$231.05¢115 523
1
#51026
51026-0053-739
COVER TANK,Left Hand,M F S BLACK
$231.05¢115 523
1
#51026
51026-0053-660
COVER TANK,Left Hand,M S BLACK
$228.59¢114 293
1
#51026A
51026-0053-660
COVER TANK,Left Hand,M S BLACK
$228.59¢114 293
1
#51026C
51026-0054-35L
COVER TANK,Right Hand,F EBONY
$231.05¢115 523
1
#51026C
51026-0054-660
COVER TANK,Right Hand,M S BLACK
No Disponible
1
#51026D
51026-0054-660
COVER TANK,Right Hand,M S BLACK
No Disponible
1
#51026C
51026-0054-739
COVER TANK,Right Hand,M F S BLACK
$231.05¢115 523
1
#51049
51049-0714
CAP TANK,FUEL
$160.05¢80 023
1
#51088
51088-5256-660
TANK COMP FUEL,M S BLACK
$1238.73¢619 367
1
#51088
51088-5259-35K
TANK COMP FUEL,C F B GREEN
No Disponible
1
#51088
51088-5012-15Z
TANK COMP FUEL,M S BLACK
$1171.09¢585 546
1
#51088B
51088-5012-15Z
TANK COMP FUEL,M S BLACK
$1171.09¢585 546
1
#51088
51088-5254-15T
TANK COMP FUEL,C B ORANGE
$1171.09¢585 546
1
#51088A
51088-5005-35K
TANK COMP FUEL,C F B GREEN
$1171.09¢585 546
1
#51088
51088-5004-15S
TANK COMP FUEL,P S WHITE
$1171.09¢585 546
1
#51088
51088-5005-35K
TANK COMP FUEL,C F B GREEN
$1171.09¢585 546
1
#52005
52005-0721
GAUGE,FUEL
$233.96¢116 978
1
#56054
56054-1133
MARK,IGNITION
No Disponible
1
#92022A
92022-228
WASHER,7X24X1.6
$3.59¢1 794
1
#92022
92022-1521
WASHER,NYLON,5.3X11.5X1.5
$3.59¢1 794
1
#92037
92037-010
CLAMP,TUBE | [CA]
$3.59¢1 794
1
#92071
92071-1187
GROMMET
$4.53¢2 266
1
#92075
92075-015
DAMPER
$4.57¢2 283
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92152
92152-1655
COLLAR,6.5X10X17.6
$1.49¢747
1
#92153A
92153-1616
BOLT,SOCKET,5X16
$1.24¢621
1
#92153
92153-1421
BOLT,FLANGED,5X12
$1.59¢793
1
#92154A
92154-0215
BOLT,SOCKET,5X10
$1.85¢926
1
#92154
92154-0026
BOLT,SOCKET,5X16
$2.17¢1 087
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161A
92161-1482
DAMPER,10X24X15
$3.52¢1 759
1
#92161B
92161-1539
DAMPER,10X35X6
$2.10¢1 052
1
#92161
92161-1468
DAMPER,12X28X21
$4.23¢2 116
1
#92170
92170-1492
CLAMP
$4.57¢2 283
1
#92192A
92192-0798
TUBE,BREATHER
$5.19¢2 593
1
#92192B
92192-1311
TUBE,6X9X930
$13.37¢6 687
1
#92192C
92192-1312
TUBE,6X9X1095
$16.21¢8 108
1
#92192
92192-0593
TUBE,FUEL
$36.03¢18 015
1
#92200
92200-1480
WASHER,NYLON,5.3X11.5X0.5
$1.44¢719
1
#92210
92210-0498
NUT,WELL,5MM
$6.68¢3 341
1
