ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

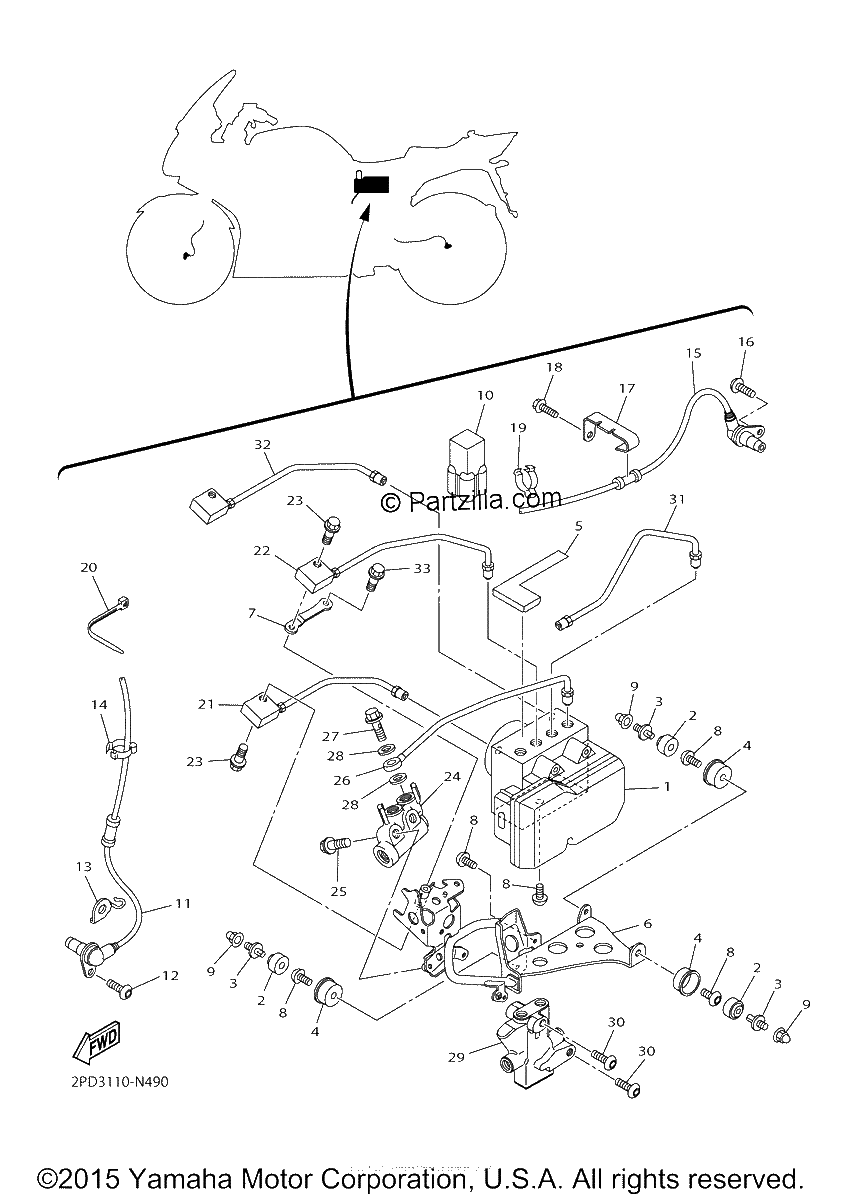

Diagrama de ELECTRICAL 3

Repuestos

#1
1MC-85930-09-00
HYDRAULIC UNIT ASSY
$1592.59¢796 294
1
#2
5CG-85113-00-00
DAMPER
$3.83¢1 915
1
#3
5CG-2535E-00-00
BOLT
$4.00¢2 001
1
#4
3P6-85916-00-00
CAP, DAMPER
$4.51¢2 254
1
#5
3P6-2117G-00-00
PROTECTOR
$17.55¢8 775
1
#6
1MD-2175T-00-00
BRACKET 1
$233.52¢116 759
1
#7
3P6-2172E-00-00
STAY, SIDE COVER 1
No Disponible
1
#8
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#9
90176-08005-00
NUT, CROWN
$2.24¢1 121
1
#10
3YA-82378-00-00
SLEEVE
$11.09¢5 543
1
#11
1MD-85970-00-00
WHEEL SENSOR ASSY, FRONT
$141.35¢70 673
1
#12
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#13
1MD-23317-00-00
HOLDER, CABLE
$30.11¢15 053
1
#14
90464-14003-00
CLAMP
$36.77¢18 383
1
#15
3P6-85980-10-00
WHEEL SENSOR ASSY, REAR
$183.39¢91 695
1
#16
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#17
3P6-86159-00-00
HOLDER, WIRE
$19.96¢9 982
1
#18
90105-05014-00
BOLT, FLANGE
$2.43¢1 213
1
#19
90464-12013-00
Clamp
$7.21¢3 605
1
#20
90465-10098-00
CLAMP
$2.55¢1 277
1
#21
3P6-25871-10-00
PIPE, BRAKE
$47.01¢23 506
1
#22
3P6-25882-20-00
PIPE, BRAKE 2
$53.24¢26 622
1
#23
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#24
3P6-25940-00-00
METERING VALVE ASSY
$281.12¢140 559
1
#25
95817-06030-00
BOLT,FLANGE (replaces 95807-06030-00)
$4.28¢2 139
1
#26
3P6-2588A-10-00
PIPE, BRAKE 4
$53.24¢26 622
1
#27
90401-10020-00
BOLT, UNION
$9.07¢4 537
1
#28
90430-10005-00
GASKET
$7.72¢3 858
1
#29
3P6-25884-00-00
VALVE, PROPORTIONING
$150.49¢75 245
1
#30
92012-06040-00
BOLT, BUTTON HEAD
$3.65¢1 823
1
#31
3P6-2588B-00-00
PIPE, BRAKE 5
$12.93¢6 463
1
#32
3P6-25883-20-00
PIPE, BRAKE 3
$53.24¢26 622
1
#33
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
