CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

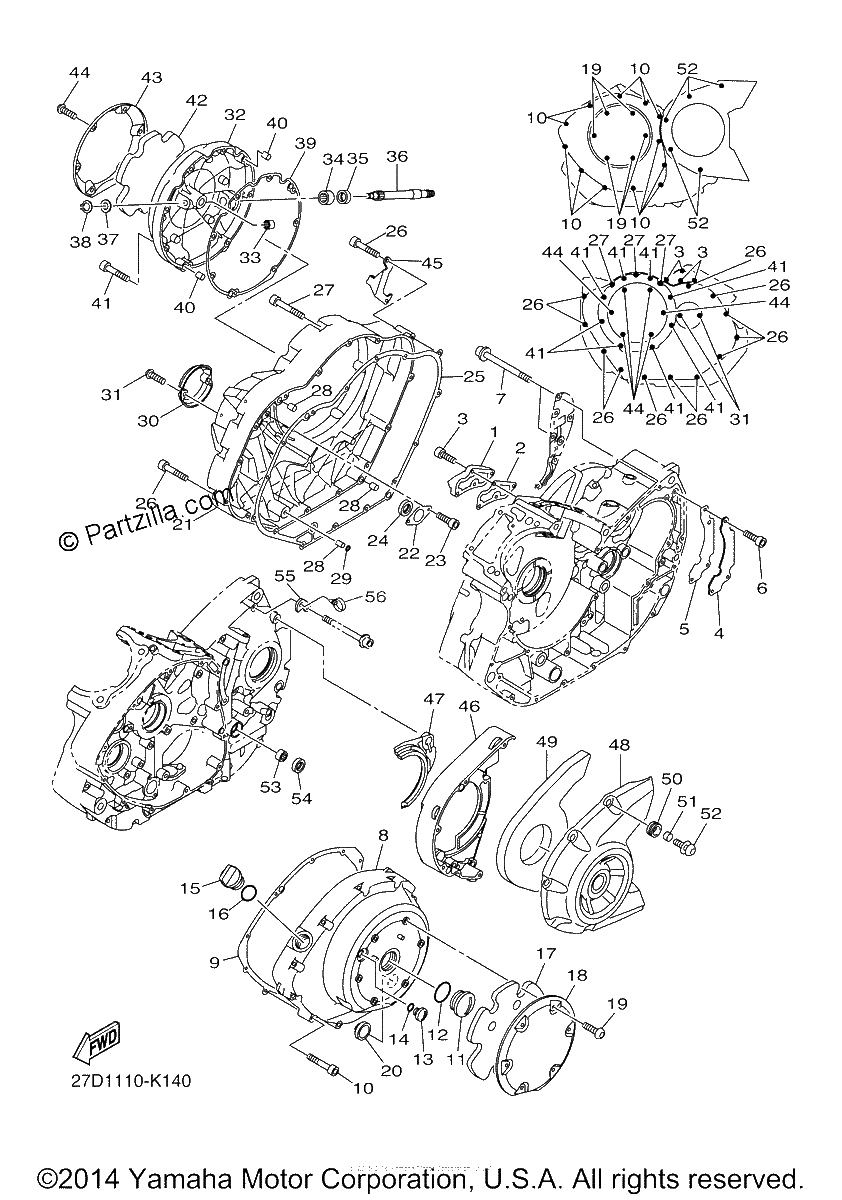

Diagrama de CRANKCASE COVER 1

Repuestos

#1
3D8-15416-00-00
COVER, OIL PUMP
$56.00¢28 000
1
#2
3D8-15454-00-00
GASKET 1
$9.41¢4 706
1
#3
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#4
3D8-15358-00-00
SEPARATOR, OIL
$4.81¢2 406
1
#5
3D8-15353-00-00
GASKET, DRAIN
$6.55¢3 275
1
#6
91317-06016-00
BOLT
$1.46¢731
1
#7
90110-06270-00
BOLT, HEXAGON SOCKET HEAD
$5.55¢2 775
1
#8
3D8-15411-00-00
COVER, CRANKCASE 1
$426.36¢213 181
1
#9
3D8-15451-00-00
GASKET, CRANKCASE COVER 1
$18.93¢9 463
1
#10
91314-06040-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#11
90340-36078-00
PLUG, STRAIGHT SCREW
$14.69¢7 344
1
#12
93210-357A3-00
O-RING
$0.59¢294
1
#13
90340-14117-00
PLUG, STRAIGHT SCREW
$13.83¢6 913
1
#14
93210-14369-00
O-Ring
$6.91¢3 456
1
#15
3F9-15362-10-00
PLUG, OIL LEVEL
$22.93¢11 463
1
#16
93210-27778-00
O-RING
$8.21¢4 106
1
#17
27D-1542A-00-00
DAMPER 1
$9.11¢4 556
1
#18
27D-15492-00-00
COVER
$131.45¢65 725
1
#19
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$7.34¢3 669
1
#20
2H7-15361-00-00
GAUGE, LEVEL
$102.81¢51 406
1
#21
3D8-15421-00-00
COVER, CRANKCASE 2
$350.38¢175 188
1
#22
3D8-15388-00-00
PLATE, BEARING COVER
$2.40¢1 200
1
#23
91317-06012-00
BOLT
$7.34¢3 669
1
#24
93101-14102-00
OIL SEAL
$13.11¢6 556
1
#25
3D8-15461-00-00
GASKET, CRANKCASE COVER 2
$36.46¢18 231
1
#26
91314-06040-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#27
91314-06065-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#28
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#29
93210-07135-00
O-RING
$5.60¢2 800
1
#30
3D8-15423-01-00
COVER 2
$54.31¢27 156
1
#31
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$7.34¢3 669
1
#32
3D8-15414-00-00
COVER, AIR CLEANER
$328.27¢164 138
1
#33
93317-11096-00
BEARING
$23.80¢11 900
1
#34
93315-31502-00
BEARING
$37.81¢18 906
1
#35
93102-15212-00
OIL SEAL
$8.73¢4 363
1
#36
3D8-16382-00-00
AXLE, PUSH LEVER
$90.36¢45 181
1
#37
92990-08600-00
WASHER, PLATE
$2.76¢1 381
1
#38
99080-07600-00
CIRCLIP
$3.60¢1 800
1
#39
93317-11287-00
BEARING
$24.40¢12 200
1
#39
3D8-15453-00-00
GASKET
$22.17¢11 087
1
#40
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#41
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#42
27D-1542B-00-00
DAMPER 2
$11.59¢5 794
1
#43
27D-15415-00-00
COVER, 1
$86.05¢43 025
1
#44
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$7.34¢3 669
1
#45
27D-15441-00-00
HOLDER, CLUTCH CABLE
$15.44¢7 719
1
#46
3D8-1541A-01-00
STAY, CRANKCASE COVER 1
$238.61¢119 306
1
#47
3D8-15337-02-00
DAMPER 4
$16.70¢8 350
1
#48
27D-15426-00-00
COVER, OIL PUMP 2
$109.24¢54 619
1
#49
27D-15316-00-00
DAMPER 1
$16.11¢8 056
1
#50
90480-13030-00
GROMMET
$3.57¢1 787
1
#51
90387-06207-00
COLLAR
$7.49¢3 744
1
#52
90111-06130-00
BOLT, HEX. SOCKET BUTTON
$4.49¢2 244
1
#54
93102-12321-00
OIL SEAL, SD-TYPE
$12.06¢6 031
1
#55
3D8-15544-00-00
STAY 1
$4.86¢2 431
1
#56
90464-16006-00
CLAMP
$9.91¢4 956
1
