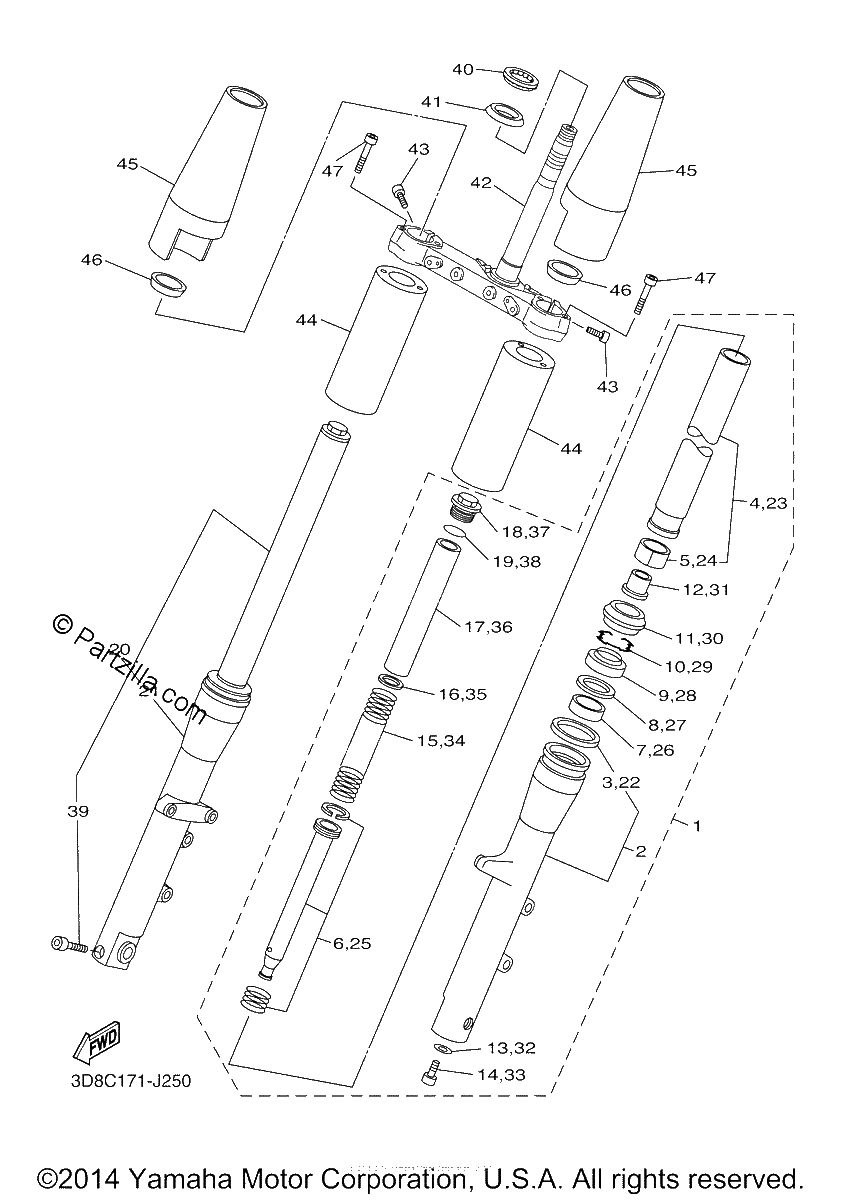

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$703.74¢351 869
#2
TUBE, OUTER (L.H)
$383.54¢191 769
#3
GUIDE, BOOT
$7.77¢3 887
#4
INNER TUBE COMP. 1
$302.82¢151 413
#5
PISTON,FRONT FORK
$23.21¢11 606
#6
CYLINDER COMP., FRONT FORK
$197.71¢98 856
#7
METAL,SLIDE 1
$34.88¢17 438
#8
WASHER, OIL SEAL
$26.29¢13 144
#9
OIL SEAL
$28.90¢14 450
#10
RING, SNAP
$7.88¢3 938
#11
SEAL, DUST
$23.21¢11 606
#12
SPINDLE, TAPER
$39.31¢19 656
#13
GASKET | (KYB)
$17.09¢8 544
#14
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#15
SPRING, FRONT FORK
$90.66¢45 331
#16
WASHER, SPRING UPPER
$7.91¢3 956
#17
SPACER
$20.96¢10 481
#18
BOLT, cap
$51.06¢25 531
#19
O-Ring
$7.65¢3 825
#20
FRONT FORK ASSY (R.H)
$703.74¢351 869
#21
TUBE, OUTER
$385.44¢192 719
#22
GUIDE, BOOT
$7.77¢3 887
#23
INNER TUBE COMP. 1
$302.82¢151 413
#24
PISTON,FRONT FORK
$23.21¢11 606
#25
CYLINDER COMP., FRONT FORK
$197.71¢98 856
#26
METAL,SLIDE 1
$34.88¢17 438
#27
WASHER, OIL SEAL
$26.29¢13 144
#28
OIL SEAL
$28.90¢14 450
#29
RING, SNAP
$7.88¢3 938
#30
SEAL, DUST
$23.21¢11 606
#31
SPINDLE, TAPER
$39.31¢19 656
#32
GASKET | (KYB)
$17.09¢8 544
#33
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#34
SPRING, FRONT FORK
$90.66¢45 331
#35
WASHER, SPRING UPPER
$7.91¢3 956
#36
SPACER
$20.96¢10 481
#37
BOLT, cap
$51.06¢25 531
#38
O-Ring
$7.65¢3 825
#39
BOLT (3JP)
$6.25¢3 125
#40
BEARING
$66.19¢33 094
#41
SEAL, STEERING
$25.53¢12 763
#42
UNDER BRACKET COMP.
$513.79¢256 894
#43
BOLT, HEXAGON SOCKET HEAD
$8.22¢4 113
#44
COVER, UNDER 1
$274.64¢137 319
#45
COVER, UPPER 1
$334.55¢167 275
#46
GASKET
$15.44¢7 719
#47
BOLT, SPECIAL
$5.76¢2 881
