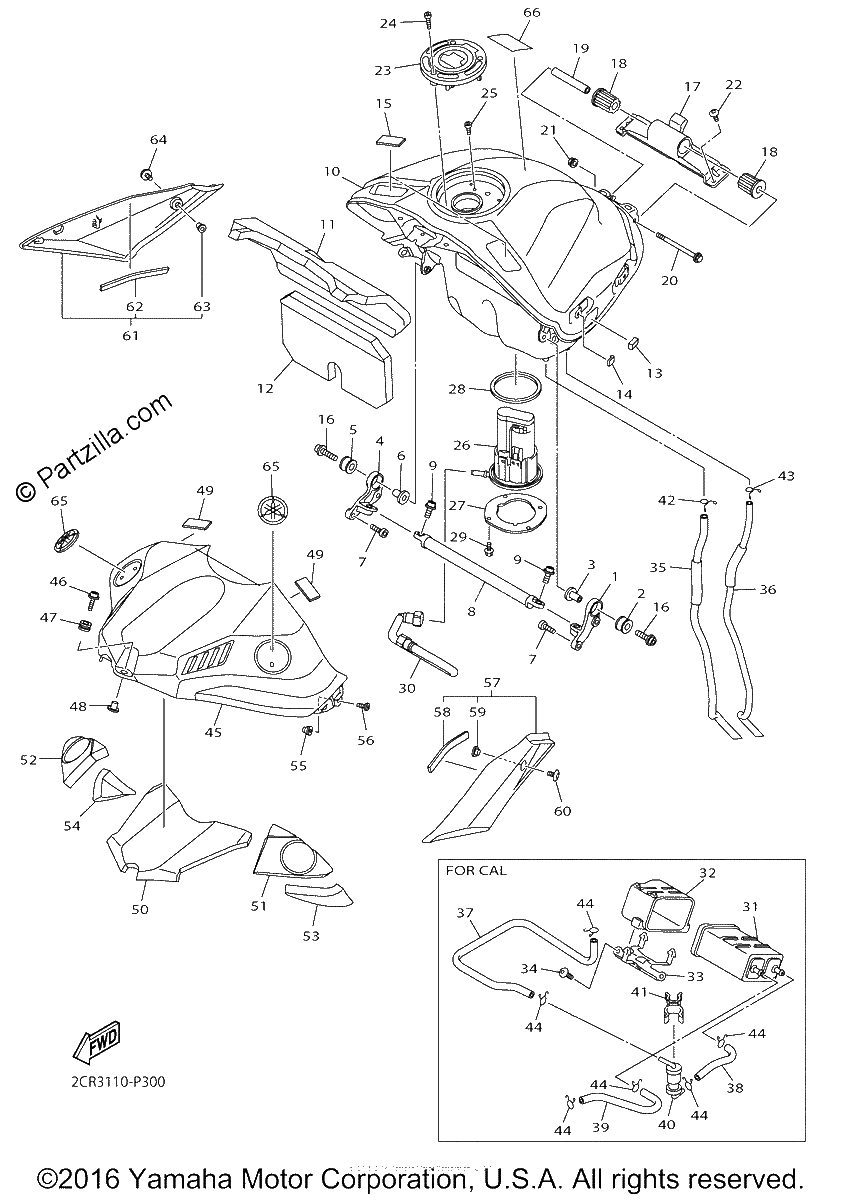

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
$2199.94¢1 099 969
#0
COVER, TOP | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$252.93¢126 465
#0
COVER, TOP
$252.93¢126 465
#0
FUEL TANK COMP.
$1718.09¢859 044
#1
BRACKET, FUEL TANK 1
$25.63¢12 817
#2
GROMMET
$3.48¢1 742
#3
COLLAR
$6.82¢3 410
#4
BRACKET, FUEL TANK 2
$22.56¢11 282
#5
GROMMET
$3.48¢1 742
#6
COLLAR
$6.82¢3 410
#7
BOLT
$2.24¢1 121
#8
CROSS BAR
$66.40¢33 201
#9
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#10
FUEL TANK COMP. | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$2199.94¢1 099 969
#11
DAMPER, PLATE 1
$8.66¢4 330
#12
DAMPER, PLATE 2
$5.01¢2 507
#13
DAMPER 2
$7.31¢3 657
#14
DAMPER, SIDE COVER
$7.04¢3 519
#15
HOOK, SIDE COVER 1
$10.70¢5 348
#16
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
#17
BRACKET, TANK FITTING
$39.04¢19 521
#18
DAMPER, LOCATING 3
$7.04¢3 519
#19
COLLAR
$4.77¢2 386
#20
BOLT, FLANGE
$3.13¢1 564
#21
NUT, FLANGE
$2.24¢1 121
#22
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#23
CAP ASSY
$254.97¢127 483
#24
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#25
BOLT
$5.39¢2 697
#26
FUEL PUMP COMP.
$453.93¢226 964
#27
BRACKET, FUEL PUMP
$22.59¢11 293
#28
O-RING
$26.89¢13 443
#29
BOLT, WITH WASHER (replaces 90119-05016-00)
$6.75¢3 375
#30
PIPE, FUEL 1
$75.42¢37 708
#31
CANISTER ASSY | FOR CALIFORNIA
$346.86¢173 432
#32
DAMPER, LOCATING 2 | FOR CALIFORNIA
$32.46¢16 232
#33
BRACKET, CANISTOR | FOR CALIFORNIA
$32.50¢16 250
#34
SCREW | FOR CALIFORNIA
$7.04¢3 519
#35
PIPE 2
$17.79¢8 895
#36
PIPE 3
$10.42¢5 210
#37
PIPE 4 | FOR CALIFORNIA
$40.85¢20 424
#38
PIPE 5 | FOR CALIFORNIA
$13.64¢6 819
#39
PIPE 6 | FOR CALIFORNIA
$16.33¢8 165
#39
DAMPER, PLATE 5
$2.44¢1 219
#40
ROLL OVER VALVE ASSY | FOR CAL
$56.99¢28 497
#41
CLAMP | FOR CALIFORNIA
$3.15¢1 576
#42
Clip
$2.99¢1 495
#43
Clip
$2.74¢1 368
#44
Clip
$2.74¢1 368
#45
COVER, TOP | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$247.15¢123 573
#46
BOLT, HEXAGON SOCKET HEAD
$6.83¢3 415
#47
GROMMET
$6.83¢3 415
#48
COLLAR
$7.64¢3 818
#49
HOOK, SIDE COVER 1
$10.70¢5 348
#50
DAMPER, LOCATING 1
$11.06¢5 531
#51
DAMPER, PLATE 3
$3.43¢1 713
#52
DAMPER, PLATE 4
$3.43¢1 713
#54
DAMPER, PLATE 6
$2.44¢1 219
#55
NUT
$6.23¢3 117
#56
SCREW, BIND
$1.32¢661
#57
TANK SIDE COVER ASSY 1
$26.35¢13 173
#58
DAMPER, PLATE
$1.20¢598
#59
COLLAR
$5.51¢2 754
#60
BOLT, HEX. SOCKET BUTTON
$6.92¢3 461
#61
TANK SIDE COVER ASSY 2
$25.48¢12 742
#62
DAMPER, PLATE
$1.20¢598
#63
COLLAR
$5.51¢2 754
#64
BOLT, HEX. SOCKET BUTTON
$6.92¢3 461
#65
EMBLEM
$21.98¢10 988
#66
LABEL, WARNING GENERAL INFO.
$3.40¢1 702
