CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

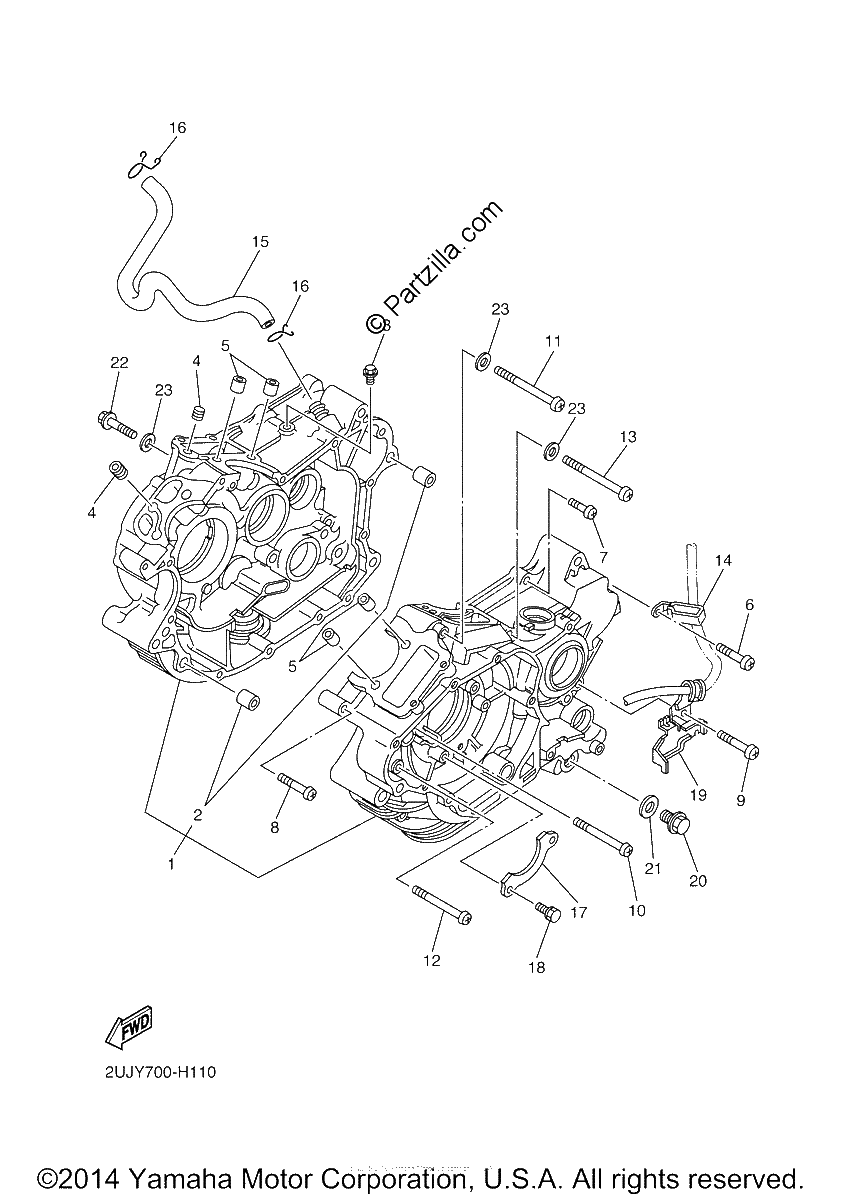

Diagrama de CRANKCASE

Repuestos

#1
2UJ-15100-03-00
CRANKCASE ASSY
$1094.55¢547 275
1
#2
99530-12016-00
PIN, DOWEL
$4.91¢2 456
1
#3
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#4
2UJ-15138-00-00
NOZZLE 1
$4.81¢2 406
1
#5
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#6
97885-06030-00
SCREW, PAN HEAD
$5.53¢2 763
1
#7
97885-06030-00
SCREW, PAN HEAD
$5.53¢2 763
1
#8
98580-06040-00
SCREW, PAN HEAD (90501-06040-00
$7.34¢3 669
1
#9
98507-06060-00
SCREW, PAN HEAD
$6.67¢3 338
1
#10
98507-06070-00
SCREW, PAN HEAD
$8.24¢4 119
1
#11
98580-06570-00
SCREW, PAN HEAD
$20.65¢10 325
1
#12
98507-06080-00
SCREW, PAN HEAD
$6.44¢3 219
1
#13
98504-06080-00
SCREW, PAN HEAD
$2.05¢1 025
1
#14
90465-08277-00
CLAMP
$11.61¢5 806
1
#15
2UJ-11166-00-00
PIPE, BREATHER 1
$41.28¢20 638
1
#16
90467-14015-00
CLIP
$8.97¢4 488
1
#17
2UJ-12279-00-00
PLATE
$9.74¢4 869
1
#18
97512-06512-00
BOLT, WITH WASHER
$1.95¢975
1
#19
90465-08060-00
CLAMP
$13.13¢6 563
1
#20
90340-14132-00
PLUG, STRAIGHT SCREW
$3.15¢1 575
1
#21
214-11198-01-00
GASKET
$3.23¢1 613
1
#22
90163-06002-00
SCREW, TAPPING
$6.06¢3 031
1
#23
90430-06014-00
GASKET
$8.25¢4 125
1
