EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

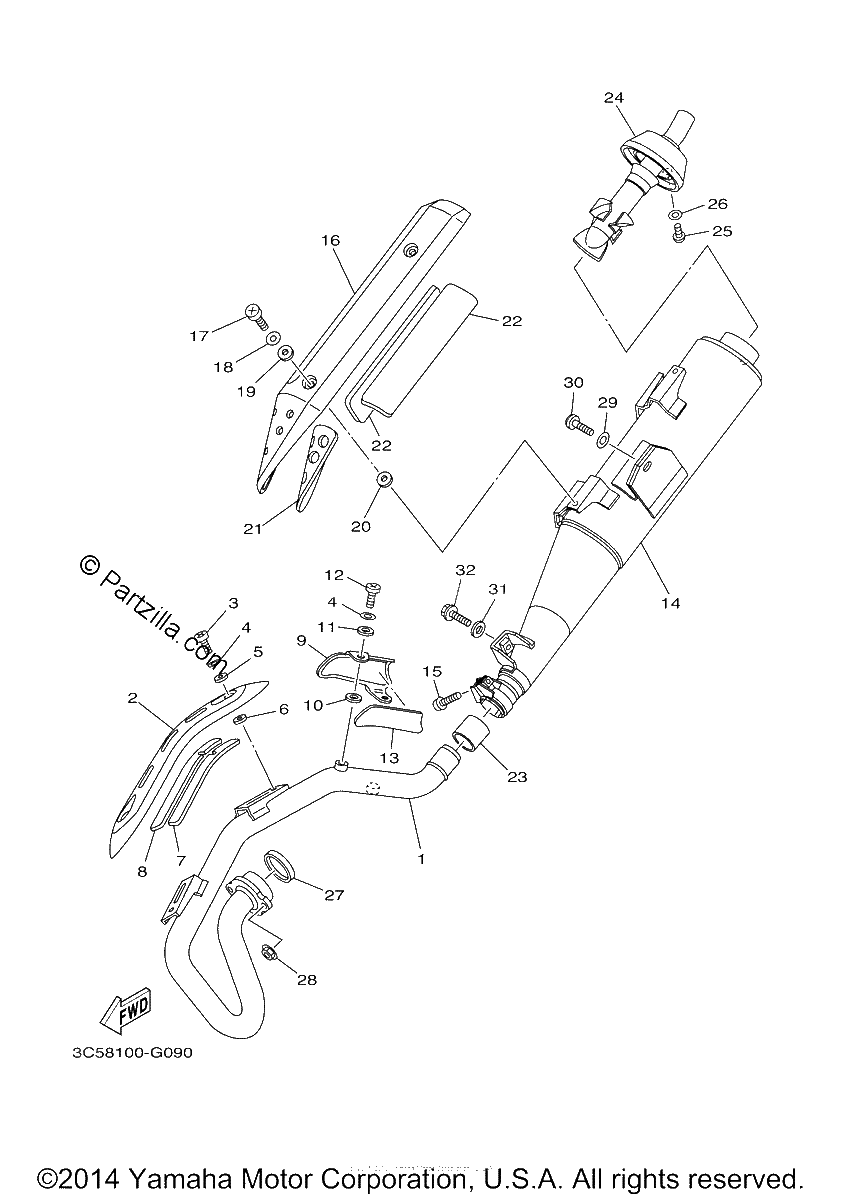

Diagrama de EXHAUST

Repuestos

#1
5XT-14611-10-00
PIPE, EXHAUST 1
$306.16¢153 082
1
#2
3C5-14628-00-00
PROTECTOR, EXHAUST PIPE
$176.05¢88 027
1
#3
98980-06012-00
SCREW, BIND
$6.75¢3 375
1
#4
90206-06090-00
WASHER, WAVE
$5.75¢2 875
1
#5
90201-05015-00
WASHER, PLATE
$6.88¢3 439
1
#6
90201-05016-00
WASHER, PLATE
$3.78¢1 892
1
#7
5XT-1465R-00-00
PLATE, PROTECTOR 1
$4.83¢2 415
1
#8
5XT-1465T-00-00
PLATE, PROTECTOR 2
$5.51¢2 754
1
#9
5XT-1479K-00-00
COVER, 3
$31.43¢15 715
1
#10
90201-05017-00
WASHER, PLATE
$6.88¢3 439
1
#11
90201-05015-00
WASHER, PLATE
$6.88¢3 439
1
#12
90154-06020-00
SCREW, BINDING
$5.91¢2 956
1
#13
5XT-1465U-00-00
PLATE, PROTECTOR 3
$5.89¢2 944
1
#14
3C5-14711-10-00
MUFFLER 1
$482.94¢241 471
1
#15
90109-085G6-00
BOLT
$2.08¢1 041
1
#16
3C5-14728-00-00
PROTECTOR, MUFFLER 2
$262.51¢131 255
1
#17
98980-06012-00
SCREW, BIND
$6.75¢3 375
1
#18
90206-06090-00
WASHER, WAVE
$5.75¢2 875
1
#19
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#20
90202-05188-00
WASHER, PLATE
$6.76¢3 381
1
#21
5XT-14738-00-00
PROTECTOR, MUFFLER 3
$16.62¢8 309
1
#22
5XT-14748-00-00
PROTECTOR, MUFFLER 4
$25.71¢12 857
1
#23
3YF-14714-00-00
GASKET, MUFFLER
$32.61¢16 307
1
#24
1RH-14752-01-00
PIPE, OUTLET
$137.41¢68 707
1
#25
98507-06010-00
SCREW, PAN HEAD
$2.96¢1 478
1
#26
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#27
3GD-14613-00-00
GASKET, EXHAUST PIPE
$13.57¢6 785
1
#28
95704-08500-00
NUT, FLANGE
$6.76¢3 381
1
#29
90201-08326-00
WASHER, PLATE
$6.75¢3 375
1
#30
90111-08020-00
BOLT
$4.06¢2 030
1
#31
90201-087A9-00
WASHER, PLATE
$4.09¢2 047
1
#32
90105-08074-00
BOLT, FLANGE
$6.96¢3 479
1
