CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

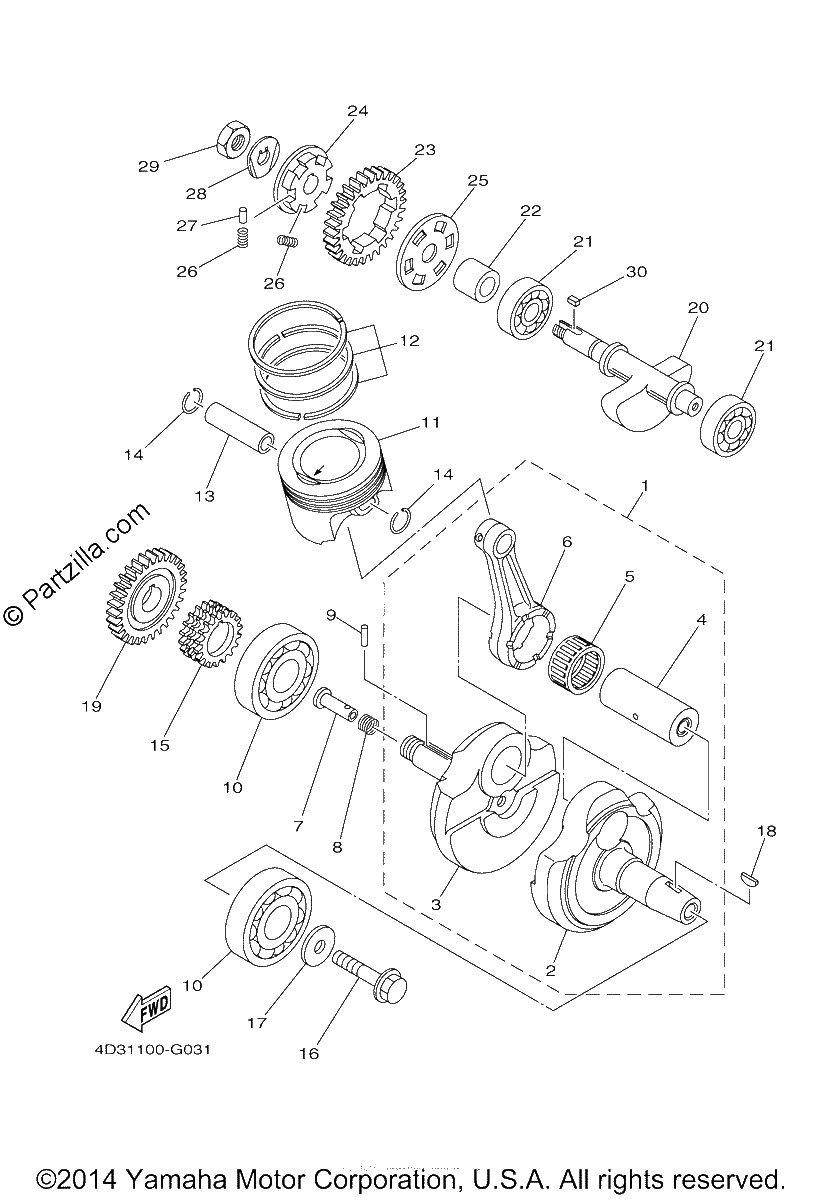

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
4D3-11400-00-00
Crankshaft Assy
$631.46¢315 731
1
#2
4D3-11412-00-00
CRANK 1
$209.63¢104 813
1
#3
4D3-11422-00-00
CRANK 2
$220.03¢110 013
1
#4
1S4-11681-00-00
PIN, CRANK 1
$81.84¢40 919
1
#5
93310-63239-00
BEARING
$105.41¢52 706
1
#6
1S4-11651-00-00
ROD, CONNECTING
$87.39¢43 694
1
#7
90240-07105-00
PIN,CLEVIS
$17.00¢8 500
1
#8
90501-07629-00
SPRING,COMPRESSION
$8.45¢4 225
1
#9
93602-13177-00
PIN,DOWEL
$2.61¢1 306
1
#10
93306-37814-00
BEARING
$103.10¢51 550
1
#11
1S4-11631-10-A0
PISTON (Std)
$96.24¢48 119
1
#12
4XV-11603-00-00
PISTON RING SET (S
$44.44¢22 219
1
#13
4XV-11633-00-00
Pin, Piston
$30.25¢15 125
1
#14
90468-12069-00
Clip
$7.94¢3 969
1
#15
5BP-11549-00-00
SPROCKET, CAM CHAIN
$86.05¢43 025
1
#16
90105-10430-00
BOLT,WASHER BASED
$10.41¢5 206
1
#17
90201-105A2-00
WASHER,PLATE (replaces 90201-102R1-00)
$8.22¢4 113
1
#18
90280-05001-00
KEY, WOODRUFF (replaces 90280-05048-00)
$14.04¢7 019
1
#19
1S4-11536-10-00
GEAR, DRIVE
$114.92¢57 463
1
#20
5XT-11454-00-00
WEIGHT 1
$82.61¢41 306
1
#21
93306-30214-00
BEARING
$49.60¢24 800
1
#22
5XT-11478-00-00
Collar
$12.65¢6 325
1
#23
1S4-11531-10-00
GEAR, BALANCE WEIGHT
$114.15¢57 075
1
#24
5XT-11496-00-00
BOSS, BUFFER
$73.34¢36 669
1
#25
5XT-11533-00-00
PLATE, ABSORBER
$15.40¢7 700
1
#26
90501-22721-00
SPRING,COMPRESSION
$9.55¢4 775
1
#27
93605-10090-00
PIN,DOWEL
$6.63¢3 313
1
#28
90215-12272-00
WASHER,LOCK
$12.38¢6 188
1
#29
90170-12370-00
NUT,HEXAGON
$21.10¢10 550
1
#30
90282-05065-00
KEY,STRAIGHT (replaces 90282-05013-00)
$8.91¢4 456
1
