FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

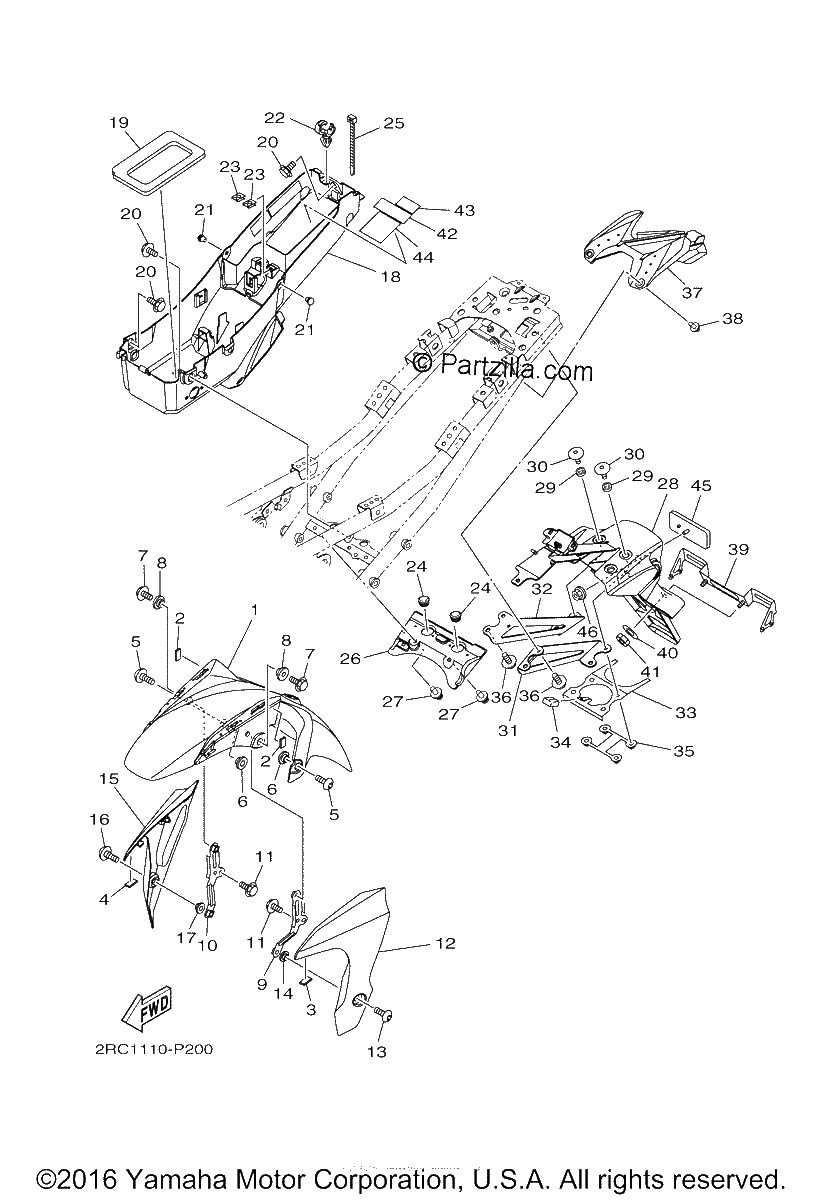

Diagrama de FENDER

Repuestos

#0
1WS-21513-00-P2
STAY, FENDER 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$56.29¢28 146
1
#0
1WS-21513-00-P4
STAY, FENDER 1 | UR FOR DNMN
$71.53¢35 765
1
#0
1WS-21514-00-P1
STAY, FENDER 2 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$67.50¢33 753
1
#0
1WS-21514-00-P2
STAY, FENDER 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$55.40¢27 698
1
#1
1WS-21511-00-00
FENDER, FRONT
$86.12¢43 062
1
#2
90520-01002-00
DAMPER, PLATE
$6.87¢3 433
1
#3
90520-01002-00
DAMPER, PLATE
$6.87¢3 433
1
#4
90520-01002-00
DAMPER, PLATE
$6.87¢3 433
1
#5
90111-06151-00
BOLT, HEX. SOCKET BUTTON
$2.92¢1 461
1
#6
90387-08079-00
COLLAR
$8.21¢4 105
1
#7
90119-06242-00
BOLT, WITH WASHER
$6.43¢3 214
1
#8
90387-06066-00
Collar
$5.86¢2 932
1
#9
1WS-21512-00-00
BRACKET, FENDER
$16.53¢8 263
1
#10
1WS-21612-00-00
BRACKET, FENDER
$12.49¢6 244
1
#11
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#12
1WS-21513-00-P1
STAY, FENDER 1 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$90.38¢45 189
1
#13
90149-06105-00
SCREW
$4.84¢2 421
1
#14
90387-06107-00
COLLAR
$7.72¢3 858
1
#15
1WS-21514-00-P4
STAY, FENDER 2 | UR FOR DNMN
$73.07¢36 536
1
#16
90149-06105-00
SCREW
$4.84¢2 421
1
#17
90387-06107-00
COLLAR
$7.72¢3 858
1
#18
1WS-8212B-00-00
BOX, BATTERY 1
$30.44¢15 220
1
#19
1WS-21639-00-00
DAMPER 2
$6.11¢3 053
1
#20
90109-06202-00
BOLT
$2.98¢1 489
1
#21
90338-07180-00
PLUG
$6.22¢3 111
1
#22
90464-18002-00
CLAMP
$7.59¢3 795
1
#23
90183-04039-00
NUT, SPRING
$6.46¢3 231
1
#24
90480-14100-00
GROMMET
$7.07¢3 536
1
#25
90464-15152-00
CLAMP
$4.77¢2 386
1
#26
1WS-21642-00-00
GUARD, FLAP
$6.22¢3 111
1
#27
90269-06002-00
RIVET
$6.75¢3 375
1
#28
1WS-21629-00-00
GUARD, MUD
$73.60¢36 800
1
#29
90387-06106-00
COLLAR
$5.93¢2 967
1
#30
90111-06061-00
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
1
#31
1WS-2164F-00-00
STAY 1
$21.82¢10 908
1
#32
1WS-2164G-00-00
STAY 2
$20.00¢9 999
1
#33
1WS-21682-00-00
STAY, PLATE
$14.69¢7 343
1
#34
1WS-21746-00-00
DAMPER
$3.10¢1 553
1
#35
1WS-2161G-00-00
BRACKET 6
$12.78¢6 388
1
#36
90105-06206-00
BOLT,WASHER BASED
$1.54¢771
1
#37
1WS-2163A-00-00
COVER, REAR FENDER 1
$9.17¢4 583
1
#38
90269-07008-00
RIVET
$2.78¢1 392
1
#39
2RC-84751-00-00
BRACKET, LICENSE
$32.60¢16 301
1
#40
92990-06600-00
WASHER, PLATE
$3.13¢1 564
1
#41
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#42
3JJ-28446-A1-00
LABEL, CAUTION
$4.54¢2 271
1
#43
3SA-24877-A0-00
LABEL, CAUTION
No Disponible
1
#44
4B5-21686-00-00
PLATE, ROUTING 2 | FOR CAL
$6.12¢3 059
1
#45
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#46
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
