FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

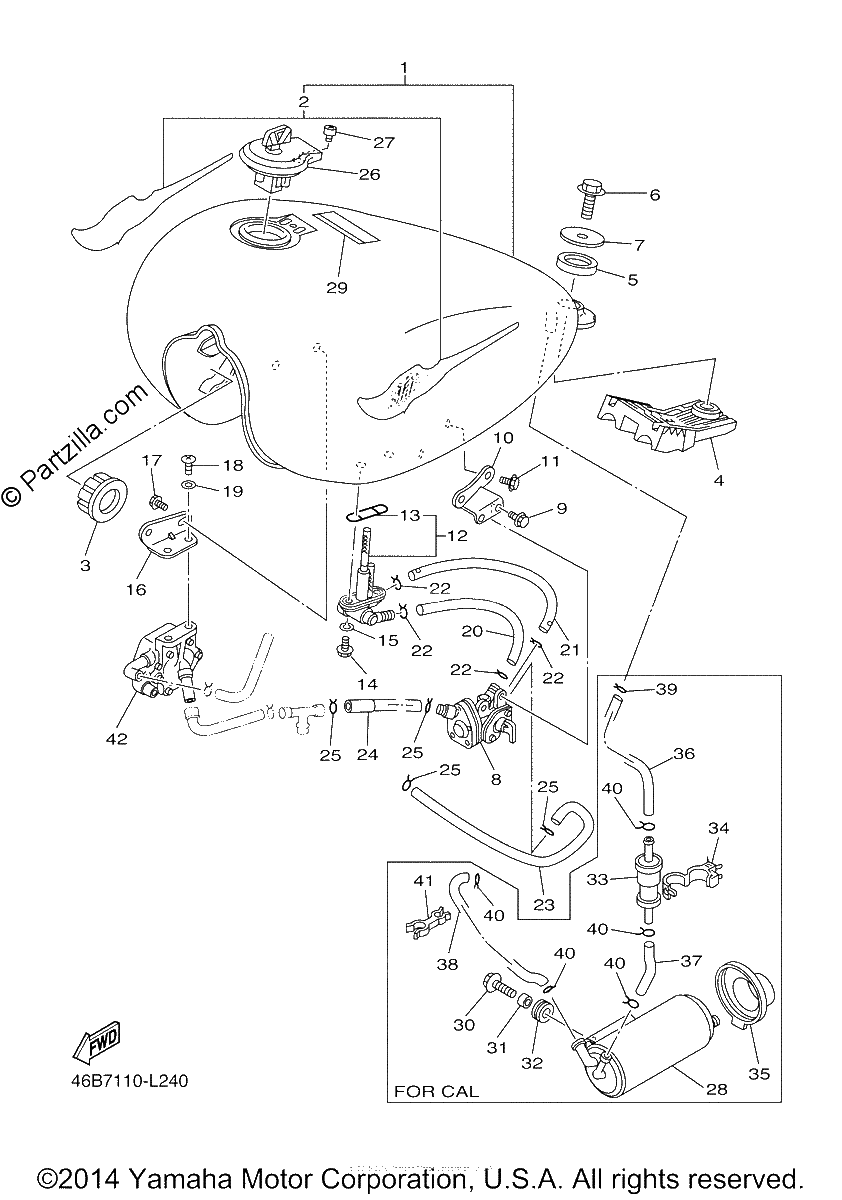

Diagrama de FUEL TANK

Repuestos

#0
4X7-24602-10-00
CAP ASSY | U49
$137.98¢68 989
1
#0
3BG-Y2410-02-X4
FUEL TANK COMP. | UR FOR CAL VPBC5
$915.39¢457 694
1
#0
46B-24240-40-00
GRAPHIC SET | UR FOR VPBC5
$117.16¢58 581
1
#0
3LS-Y2410-T3-W1
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
$913.09¢456 544
1
#0
3BG-Y2410-02-X5
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
$817.64¢408 819
1
#1
3LS-Y2410-T3-X9
FUEL TANK COMP. | UR FOR VPBC5
$813.04¢406 519
1
#2
46B-24240-50-00
GRAPHIC SET | Use for Color Black Metallic X ( SMX / 0903 )
$127.81¢63 906
1
#3
4H7-24181-00-00
DAMPER, LOCATING 1
$6.00¢3 001
1
#4
2UJ-24182-00-00
DAMPER, LOCATING 2
$18.00¢8 999
1
#5
42X-24183-00-00
DAMPER, LOCATING 3
$7.38¢3 691
1
#6
95817-08030-00
BOLT, FLANGE
$6.75¢3 375
1
#7
90201-08569-00
WASHER, PLATE
$4.83¢2 415
1
#8
2UJ-24500-10-00
FUEL COCK ASSY 1
$134.75¢67 373
1
#9
95024-06010-00
BOLT, FLANGE (SMALL HEAD)
$4.62¢2 311
1
#10
2UJ-24544-01-00
BRACKET, FUEL COCK
$21.54¢10 770
1
#11
95024-06010-00
BOLT, FLANGE (SMALL HEAD)
$4.62¢2 311
1
#12
2UJ-24560-10-00
FILTER ASSY
$45.16¢22 580
1
#13
4X8-24512-10-00
GASKET
$12.02¢6 009
1
#14
90149-06011-00
SCREW,SPEC'L SHAPE
$1.79¢897
1
#15
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#16
2UJ-24491-01-00
BRACKET, FUEL PUMP
$15.29¢7 648
1
#17
95024-06010-00
BOLT, FLANGE (SMALL HEAD)
$4.62¢2 311
1
#18
98517-06012-00
SCREW,PAN (replaces 98502-06012-00)
$3.44¢1 719
1
#19
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#20
90445-11057-00
HOSE
$16.26¢8 131
1
#21
90445-11058-00
HOSE
$23.80¢11 902
1
#22
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#23
2UJ-24312-10-00
PIPE 2
$33.73¢16 865
1
#24
2UJ-24313-00-00
PIPE 3
$26.82¢13 409
1
#25
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#26
20K-24602-10-00
CAP ASSY | FOR CALIFORNIA
$94.04¢47 018
1
#27
91317-05010-00
BOLT,HEX.SOCKET HEAD
$1.84¢920
1
#28
3BG-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$330.63¢165 313
1
#29
1TP-2118K-A1-00
LABEL, CAUTION
$6.59¢3 295
1
#30
90119-06118-00
BOLT, WITH WASHER
$6.75¢3 375
1
#31
90387-0600V-00
COLLAR
$8.39¢4 198
1
#32
90480-14329-00
GROMMET
$7.30¢3 651
1
#33
5PX-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$57.60¢28 802
1
#34
90464-15192-00
CLAMP
$6.75¢3 375
1
#35
2JU-2419E-00-00
COVER, CANISTER | FOR CALIFORNIA
$49.65¢24 823
1
#36
3BG-24321-10-00
PIPE 10 | FOR CALIFORNIA
$66.03¢33 017
1
#37
3BG-24322-10-00
PIPE 11 | FOR CALIFORNIA
$38.96¢19 481
1
#38
3BG-24323-10-00
PIPE 12 | FOR CALIFORNIA
$63.53¢31 763
1
#39
90467-090A2-00
Clip
$2.74¢1 368
1
#40
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#41
90464-16119-00
CLAMP | FOR CALIFORNIA
$3.07¢1 535
1
#42
3DM-13910-01-00
FUEL PUMP ASSY
$318.86¢159 430
1
