STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

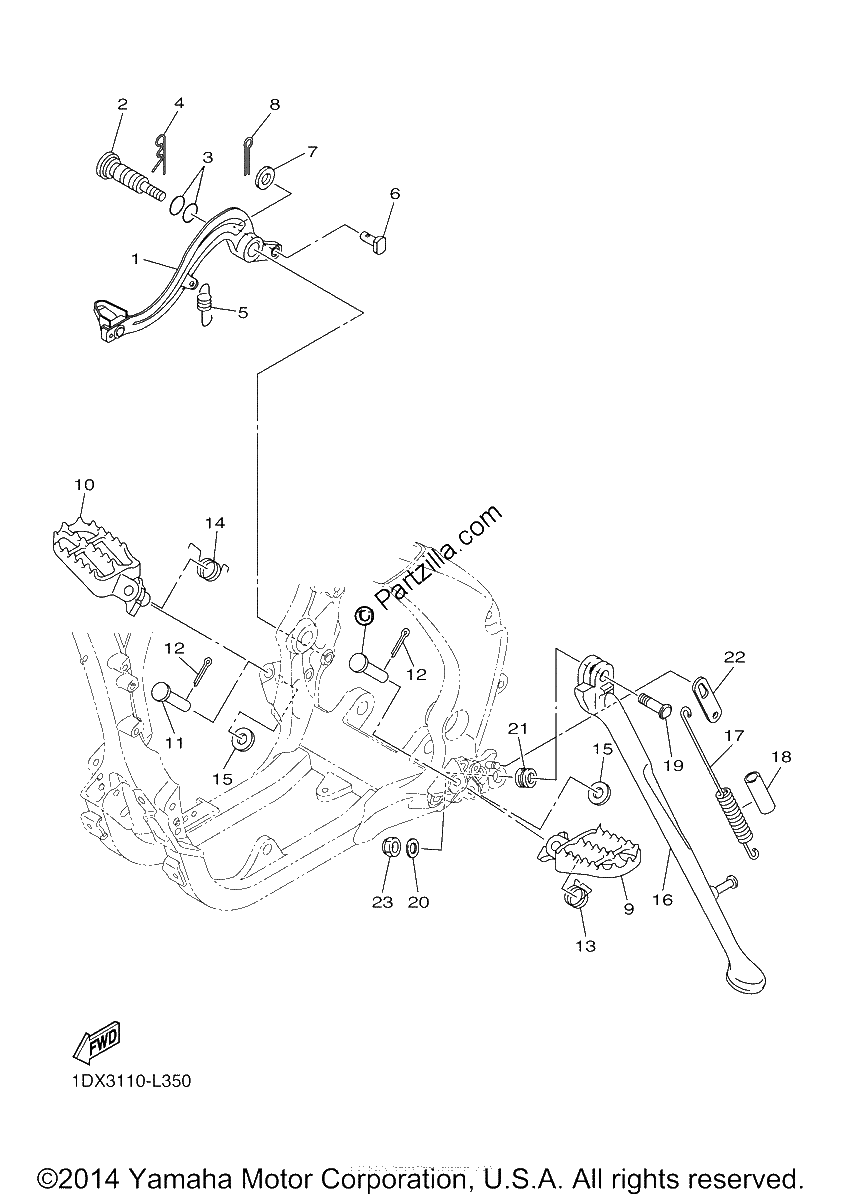

Diagrama de STAND FOOTREST

Repuestos

#1
33D-27200-01-00
PEDAL, BRAKE
$131.39¢65 694
1
#2
17D-27217-00-00
BOLT
$31.20¢15 600
1
#3
93210-11073-00
O-RING
$6.88¢3 438
1
#4
90468-16001-00
Clip
$5.38¢2 688
1
#5
90506-16007-00
SPRING, TENSION
$8.95¢4 475
1
#6
90240-08120-00
PIN, CLEVIS
$12.79¢6 394
1
#7
90201-08044-00
WASHER, PLATE
$7.34¢3 669
1
#8
91490-20015-00
PIN. COTTER
$2.20¢1 100
1
#9
17D-27411-00-00
FOOTREST 1
$74.70¢37 350
1
#10
17D-27421-00-00
FOOTREST 2
$74.70¢37 350
1
#11
90240-10005-00
PIN, CLEVIS
$6.95¢3 475
1
#12
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#13
90508-28015-00
SPRING, TORSION
$9.39¢4 694
1
#14
90508-28018-00
SPRING, TORSION
$7.13¢3 563
1
#15
90201-10032-00
WASHER, PLATE
$1.30¢650
1
#16
5UM-27311-E1-00
STAND, SIDE
$147.43¢73 713
1
#17
90506-30005-00
Spring, Tension
$21.59¢10 794
1
#18
90445-217G3-00
HOSE (L70)
$8.24¢4 119
1
#19
90109-10026-00
bolt
$7.36¢3 681
1
#20
90201-10045-00
WASHER, PLATE
$7.34¢3 669
1
#21
90387-1003G-00
COLLAR
$21.92¢10 962
1
#22
5UM-27315-E0-00
LINK, SIDE STAND
$3.57¢1 787
1
#23
90185-10018-00
NUT, SELF-LOCKING
$7.41¢3 706
1
