REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

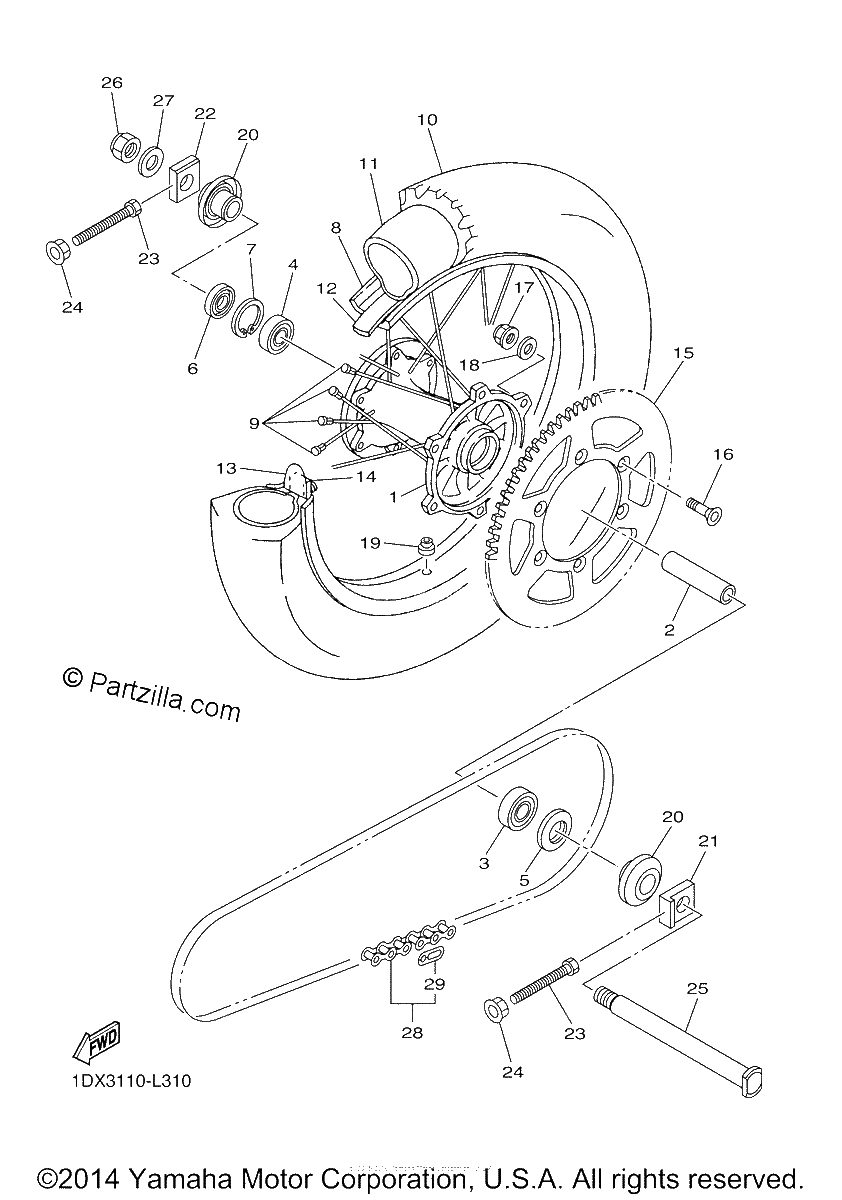

Diagrama de REAR WHEEL

Repuestos

#0
5TJ-25450-80-00
SPROCKET, DRIVEN (50T) | STD
$71.35¢35 675
1
#0
5GS-25448-50-00
SPROCKET, DRIVEN (48T) | AP
$53.46¢26 731
1
#1
5ET-25311-00-00
HUB, REAR
$318.70¢159 350
1
#2
5ET-25317-00-00
SPACER, BEARING
$51.06¢25 531
1
#3
93306-27212-00
BEARING
$78.49¢39 244
1
#4
93306-07202-00
BEARING
$40.19¢20 094
1
#5
93106-30001-00
OIL SEAL
$11.92¢5 962
1
#6
93106-30045-00
OIL SEAL
$9.45¢4 725
1
#7
99009-45500-00
CIRCLIP
$2.97¢1 487
1
#8
94421-18008-00
RIM (2.15-18)
$397.14¢198 569
1
#9
5GS-25304-00-00
SPOKE SET, REAR
$210.21¢105 106
1
#10
94112-18034-00
TIRE (120/90-18 65M MX51) | DUNLOP
No Disponible
1
#11
94212-18188-00
TUBE (110-140/80-100-18 M/C) | BRIDGESTONE
$39.67¢19 838
1
#12
94340-18086-00
BAND, RIM (2.50-18) | BRIDGESTONE
$19.06¢9 531
1
#13
3JE-25394-00-00
SPACER,BEAD
$39.71¢19 856
1
#14
4XM-25364-00-00
Damper
$7.91¢3 956
1
#15
5TJ-25452-80-00
SPROCKET, DRIVEN (52T) | AP
$98.20¢49 100
1
#16
90109-08078-00
bolt
$6.14¢3 069
1
#17
90185-08008-00
NUT, SELF-LOCKING
$7.16¢3 581
1
#18
90201-08048-00
WASHER, PLATE
$6.85¢3 425
1
#19
90480-10068-00
GROMMET (replaces 90480-08608-00)
$8.06¢4 031
1
#20
1DX-2530S-00-00
COLLAR ASSY
$27.56¢13 781
1
#21
1C3-25388-H0-00
PULLER, CHAIN 1
$24.16¢12 081
1
#22
1C3-25389-H0-00
PULLER, CHAIN 2
$29.69¢14 844
1
#23
90101-08006-00
bolt
$8.01¢4 006
1
#24
90179-08019-00
Nut
$6.23¢3 113
1
#25
1C3-25381-90-00
AXLE, WHEEL
$97.96¢48 981
1
#26
90185-20002-00
NUT, SELF-LOCKING
$27.00¢13 500
1
#27
90201-20020-00
WASHER, PLATE
$9.14¢4 569
1
#28
9Y582-39113-00
CHAIN (DID520VM2-114LL)
$217.31¢108 656
1
#29
94682-39021-00
JOINT, CHAIN (DID520VM2-ZJ)
$12.86¢6 431
1
