METER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

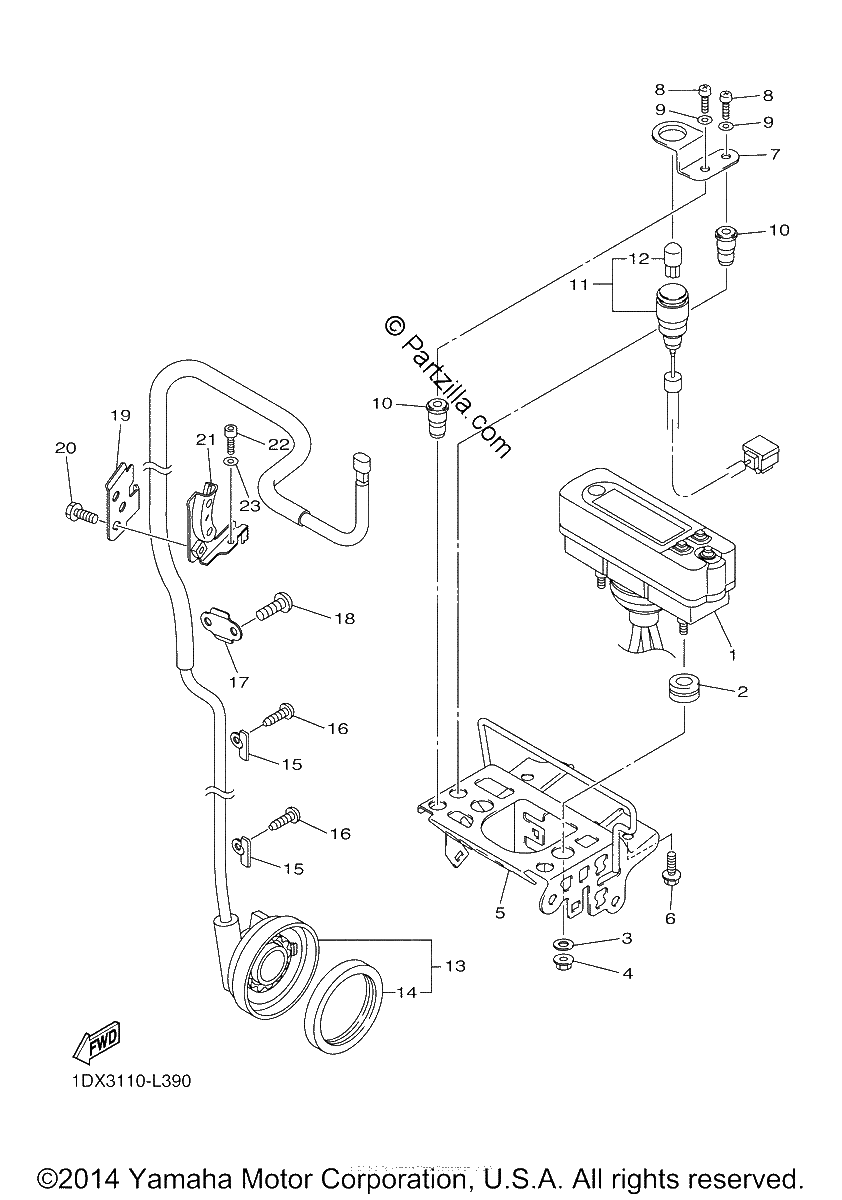

Diagrama de METER

Repuestos

#1
1DX-83500-20-00
METER ASSY (MPH)
$525.34¢262 669
1
#2
90480-14012-00
Grommet
$12.56¢6 281
1
#3
90201-05021-00
WASHER, plate
$1.96¢981
1
#4
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#5
1DX-83519-00-00
BRACKET, METER
$67.02¢33 512
1
#6
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#7
1DX-83575-00-00
BRACKET, INDICATOR LIGHT 2
$8.26¢4 131
1
#8
98507-05016-00
SCREW, PAN HEAD
$1.68¢838
1
#9
92990-05600-00
WASHER, PLATE
$0.66¢331
1
#10
90179-05013-00
NUT
$6.95¢3 475
1
#11
1DX-83530-00-00
PILOT LIGHT ASSY
$24.59¢12 294
1
#12
3FV-83517-00-00
BULB (12V-1.7W)
$7.71¢3 856
1
#13
5TJ-83755-C3-00
SENSOR, SPEED
$421.90¢210 950
1
#14
93105-47007-00
OIL SEAL,SDD-TYPE
$16.25¢8 125
1
#15
5TJ-8375F-C0-00
PLATE 2
$10.85¢5 425
1
#16
97702-40010-00
SCREW, TAPPING
$2.94¢1 469
1
#17
5TJ-8375E-C0-00
PLATE 1
$8.28¢4 138
1
#18
92012-05008-00
BOLT, BUTTON HEAD
$2.79¢1 394
1
#19
5UM-83595-E0-00
CLAMP
$14.13¢7 063
1
#20
90105-06105-00
Bolt, Flange
$7.52¢3 762
1
#21
5UM-23591-E0-00
BRACKET 1
$30.40¢15 200
1
#22
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#23
92990-06600-00
WASHER, PLATE
$3.40¢1 700
1
