AIR INDUCTION SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

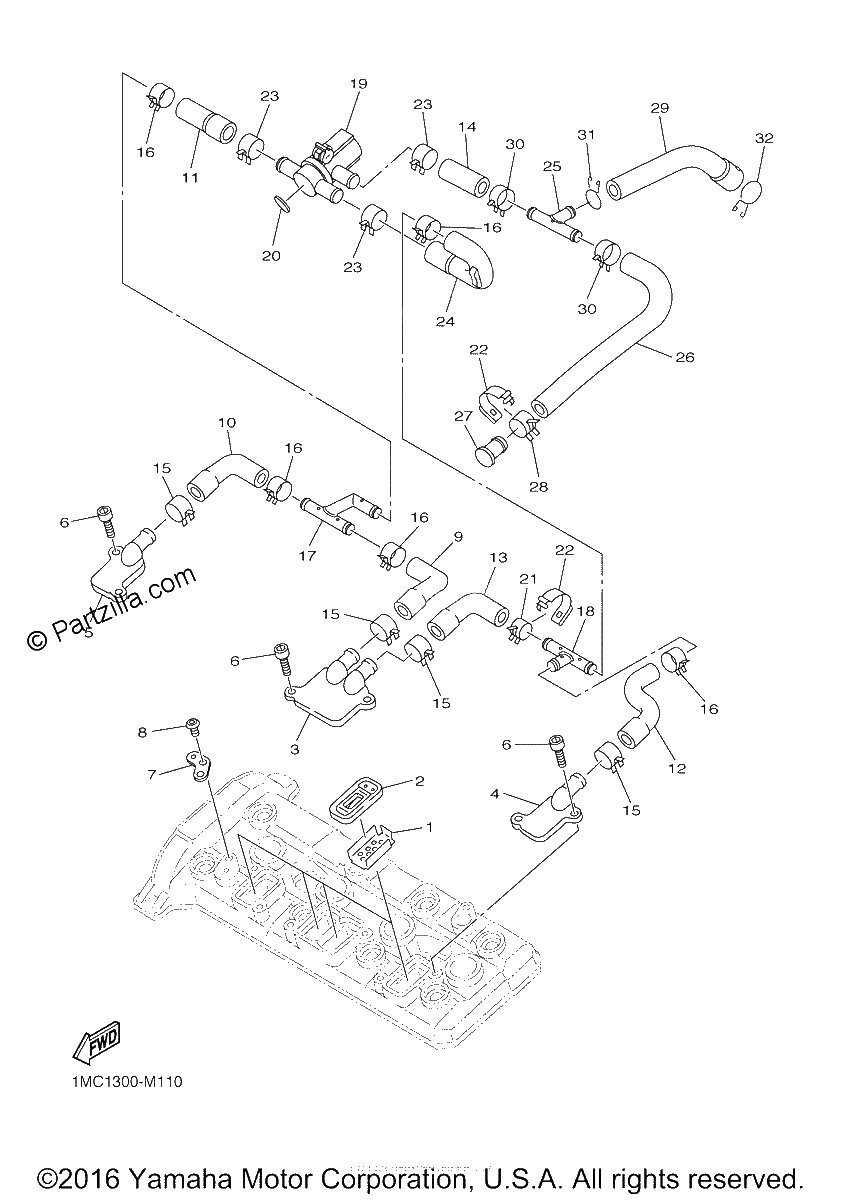

Diagrama de AIR INDUCTION SYSTEM

Repuestos

#1
5JW-1482K-01-00
PLATE
$4.60¢2 300
1
#2
5JW-14890-00-00
REED VALVE ASSY
$70.70¢35 350
1
#3
5JW-14899-10-00
CAP, CASE
$34.52¢17 263
1
#4
5JW-14858-00-00
CAP, CASE
$53.35¢26 675
1
#5
5JW-14889-00-00
CAP, CASE
$77.54¢38 769
1
#6
90110-06163-00
BOLT, HEXAGON SOCKET
$9.13¢4 563
1
#7
1MC-1111F-00-00
PLATE
$5.02¢2 512
1
#8
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#9
1MC-14881-00-00
HOSE, BEND 1
$17.79¢8 894
1
#10
1MC-14882-00-00
HOSE, BEND 2
$18.94¢9 469
1
#11
1MC-14883-00-00
HOSE, BEND 3
$8.64¢4 319
1
#12
1MC-14874-00-00
PIPE 4
$18.20¢9 100
1
#13
1MC-14875-00-00
PIPE 5
$19.26¢9 631
1
#14
1MC-14876-00-00
PIPE 6
$4.35¢2 175
1
#15
90467-17003-00
CLIP
$6.47¢3 238
1
#16
90467-160A1-00
CLIP
$7.71¢3 856
1
#17
3P6-14871-00-00
PIPE 1
$36.40¢18 200
1
#18
3P6-14872-00-00
PIPE 2
No Disponible
1
#19
2S3-14840-00-00
AIR CUT VALVE ASSY
$218.38¢109 188
1
#20
3P6-13593-00-00
DAMPER
$4.19¢2 094
1
#21
90468-08104-00
CLIP
$3.25¢1 625
1
#22
5JW-14723-00-00
COVER 1
$19.38¢9 688
1
#23
90467-17128-00
CLIP (replaces 90467-17089-00)
$7.94¢3 969
1
#24
1MC-14884-00-00
HOSE, BEND 4
$12.35¢6 175
1
#25
3P6-14833-00-00
JOINT
$28.60¢14 300
1
#26
1MC-14886-00-00
HOSE, BEND 6
$14.81¢7 406
1
#27
5JW-14862-00-00
PLUG
$13.39¢6 694
1
#28
90467-17128-00
CLIP (replaces 90467-17089-00)
$7.94¢3 969
1
#29
1MC-14885-00-00
HOSE, BEND 5
$14.31¢7 156
1
#30
90467-17128-00
CLIP (replaces 90467-17089-00)
$7.94¢3 969
1
#31
90467-170A2-00
CLIP
$2.40¢1 200
1
#32
90467-20M15-00
CLIP (replaces 90467-20030-00)
$7.95¢3 975
1
