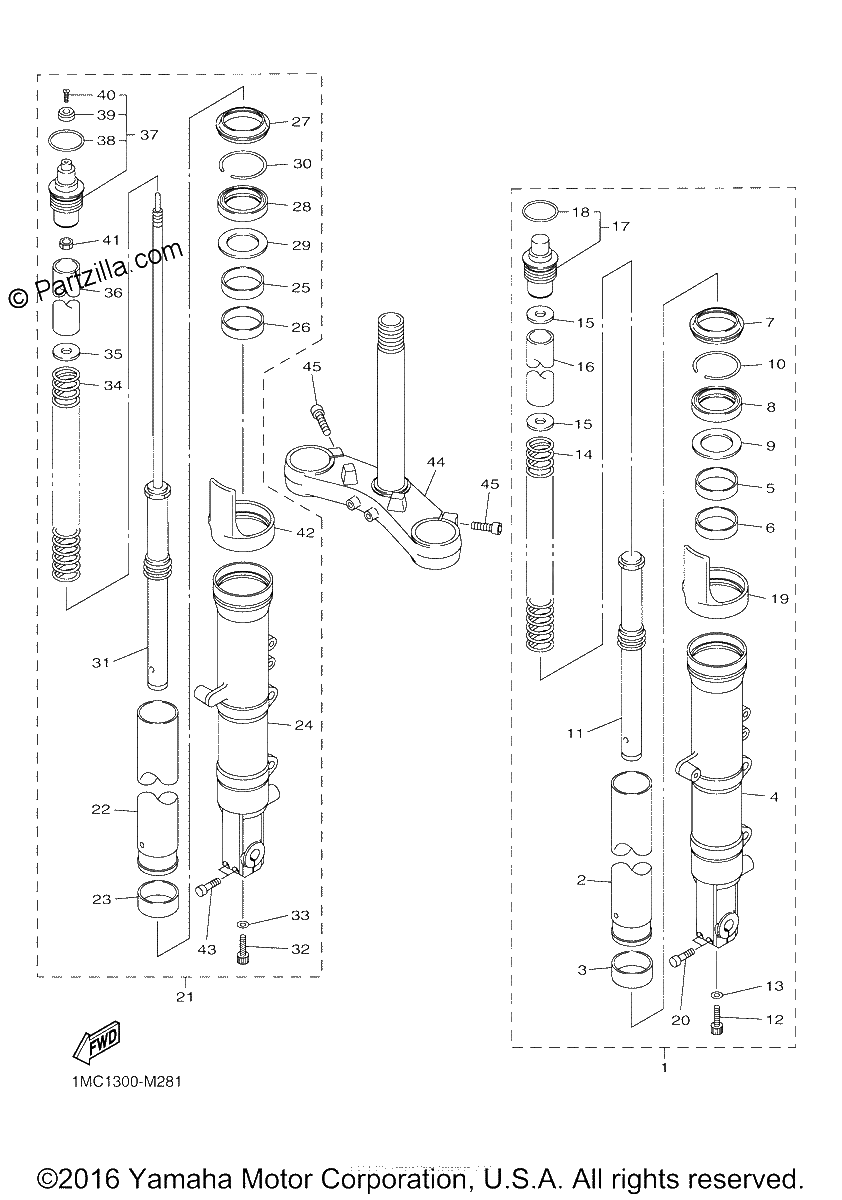

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$792.49¢396 244
#2
INNER TUBE COMP. 1
No Disponible
#3
METAL, SLIDE 2
$20.94¢10 469
#4
TUBE, OUTER (L.H)
$472.01¢236 006
#5
METAL, SLIDE 1
$20.74¢10 369
#6
METAL, SLIDE 2
$21.44¢10 719
#7
SEAL, DUST
$17.01¢8 506
#8
OIL SEAL
$19.95¢9 975
#9
SEAT 1
$8.03¢4 013
#10
RING, SNAP
$7.70¢3 850
#11
CYLINDER COMP., 2
$322.33¢161 163
#12
BOLT, HEXAGON SOCKET HEAD
$6.91¢3 456
#13
GASKET
$3.90¢1 950
#14
SPRING, FRONT FORK
$90.44¢45 219
#15
WASHER, PLATE
$3.49¢1 744
#16
SPACER
$11.57¢5 788
#17
BOLT, CAP
$92.31¢46 156
#18
O-RING
$7.34¢3 669
#19
COVER
$18.13¢9 063
#20
BOLT, HEXAGON SOCKET HEAD
$8.10¢4 050
#21
FRONT FORK ASSY (R.H)
No Disponible
#22
INNER TUBE COMP. 1
No Disponible
#23
METAL, SLIDE 2
$20.94¢10 469
#24
OUTER TUBE COMP. (R.H)
$817.83¢408 913
#25
METAL, SLIDE 1
$20.74¢10 369
#26
METAL, SLIDE 2
$21.44¢10 719
#27
SEAL, DUST
$17.01¢8 506
#28
OIL SEAL
$19.95¢9 975
#29
SEAT 1
$8.03¢4 013
#30
RING, SNAP
$7.70¢3 850
#31
CYLINDER COMP., 3
No Disponible
#32
BOLT, HEXAGON SOCKET HEAD
$6.91¢3 456
#33
GASKET
$3.90¢1 950
#34
SPRING, FRONT FORK
$90.44¢45 219
#35
WASHER, PLATE
$6.45¢3 225
#36
SPACER
$3.73¢1 863
#37
BOLT, CAP 2
$165.65¢82 825
#38
O-RING
$7.34¢3 669
#39
CAP
$11.46¢5 731
#40
SCREW, OVAL HEAD
$0.36¢181
#41
NUT (3BM) (replaces 95302-10600-00)
$2.05¢1 025
#42
COVER
$18.13¢9 063
#43
BOLT, HEXAGON SOCKET HEAD
$8.10¢4 050
#44
UNDER BRACKET COMP.
$549.75¢274 875
#45
BOLT
$7.43¢3 713
