WINDSHIELD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

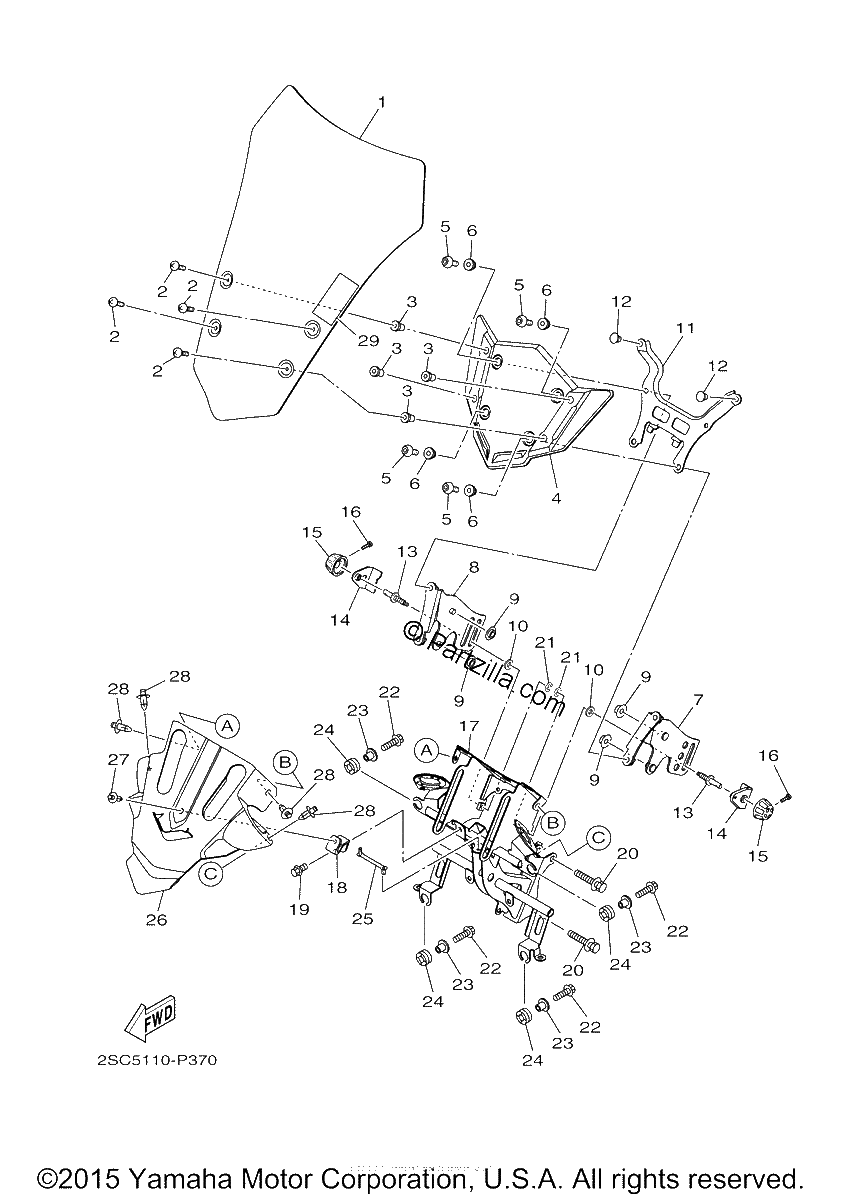

Diagrama de WINDSHIELD

Repuestos

#1
2PP-28381-00-00
WINDSHIELD
$307.36¢153 681
1
#2
90150-05024-00
SCREW, ROUND HEAD
$3.40¢1 700
1
#3
90179-05003-00
NUT
$5.84¢2 919
1
#4
2PP-84369-00-P0
COVER 1 | MBL2 FOR SMX, MS1
$164.20¢82 100
1
#5
90111-06029-00
BOLT, HEX. SOCKET BUTTON
$5.61¢2 806
1
#6
90387-06048-00
Collar
$7.23¢3 613
1
#7
2PP-2831U-00-00
STAY, SIDE 1
$35.65¢17 825
1
#8
2PP-2832U-00-00
STAY, SIDE 1
$35.65¢17 825
1
#9
90386-07MA2-00
BUSH
$3.57¢1 787
1
#10
90202-07015-00
WASHER, PLATE
$7.95¢3 975
1
#11
2PP-2831T-00-00
STAY, SUPPORT 1
$30.11¢15 056
1
#12
90338-07043-00
PLUG
$6.55¢3 275
1
#13
2PP-28331-00-00
BOLT, LEG SHIELD
$38.46¢19 231
1
#14
2PP-2831E-00-00
STAY, GUIDE 1
$5.22¢2 613
1
#15
3P6-8432N-00-00
KNOB
$10.39¢5 194
1
#16
90157-03007-00
SCREW, PAN HEAD
$3.21¢1 606
1
#17
2PP-28356-00-00
STAY 1
$208.82¢104 413
1
#18
2PP-2836A-00-00
BRACKET 1
$18.73¢9 363
1
#19
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
#20
90119-08062-00
BOLT, WITH WASHER
$6.94¢3 469
1
#21
99080-03600-00
CIRCLIP
$3.89¢1 944
1
#22
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
1
#23
90387-07391-00
COLLAR
$9.22¢4 613
1
#24
3C3-83513-00-00
Damper
$7.65¢3 825
1
#25
90464-09026-00
CLAMP
$4.81¢2 406
1
#26
2PP-2836M-00-00
PANEL, INNER 3
$25.74¢12 869
1
#27
90269-05006-00
RIVET
$2.23¢1 113
1
#28
90269-07007-00
RIVET
$4.00¢2 000
1
#29
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
1
