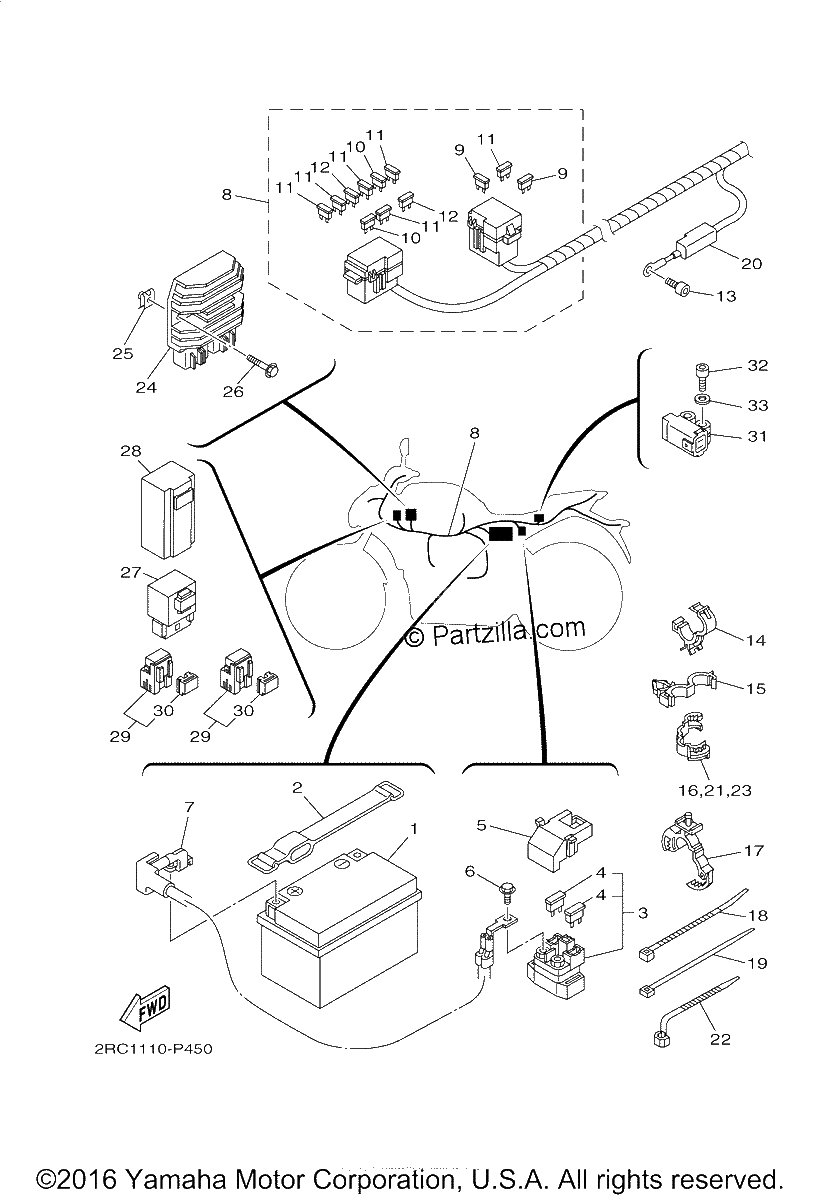

Diagrama de ELECTRICAL 1

Repuestos

#1
YTZ-10S00-00-00
YTZ10S YUASA BATTER
$235.21¢117 606
1
#2
1WS-82131-00-00
BAND, BATTERY
$8.81¢4 406
1
#3
1XC-81940-00-00
STARTER RELAY ASSY (RC19-089B)
$68.09¢34 044
1
#4
1AE-82151-00-00
FUSE (30A-BL)
$7.41¢3 706
1
#5
5SL-82119-10-00
COVER, LEAD WIRE
$4.84¢2 419
1
#6
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#7
1WS-82115-01-00
WIRE, PLUS LEAD
$21.94¢10 969
1
#8
2RC-82590-01-00
WIRE HARNESS ASSY
$790.63¢395 313
1
#9
5JJ-82151-80-00
FUSE (2A-BL)
$8.43¢4 213
1
#10
5JJ-82151-00-00
FUSE (7.5A-BL)
$7.08¢3 538
1
#11
67F-82151-40-00
FUSE (10A)
$7.75¢3 875
1
#12
67F-82151-50-00
FUSE (15A)
$4.44¢2 219
1
#13
91380-06012-00
BOLT
$2.23¢1 113
1
#14
90464-20191-00
Clamp
$8.76¢4 381
1
#15
90464-18007-00
CLAMP
$3.57¢1 787
1
#16
90464-14010-00
CLAMP
$3.83¢1 913
1
#17
90464-18011-00
CLAMP
$3.90¢1 950
1
#18
1UA-82591-00-00
BAND
$4.91¢2 456
1
#19
90464-65001-00
CLAMP
$5.99¢2 994
1
#20
1WS-81916-00-00
COVER, TERMINAL
$5.21¢2 606
1
#21
90464-14010-00
CLAMP
$3.83¢1 913
1
#22
90464-15195-00
CLAMP
$3.30¢1 650
1
#23
90464-14010-00
CLAMP
$3.83¢1 913
1
#24
27D-81960-00-00
RECTIFIER REGULATOR ASSY
$324.38¢162 188
1
#25
90183-060A6-00
NUT, SPRING
$4.97¢2 488
1
#26
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#27
5VK-81950-50-00
RELAY ASSY (G8R-30Y-V5)
$60.88¢30 438
1
#28
1WS-8246B-00-00
COVER 1
$9.74¢4 869
1
#29
1TP-81950-00-00
RELAY ASSY (1TP-00)
$15.59¢7 794
1
#30
5EA-81952-00-00
HOLDER, RELAY
$8.03¢4 013
1
#31
5PS-82576-01-00
SENSOR, LEAN ANGLE
$95.25¢47 625
1
#32
91312-04025-00
BOLT
$1.84¢919
1
#33
90201-04030-00
WASHER, PLATE
$1.80¢900
1
