CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

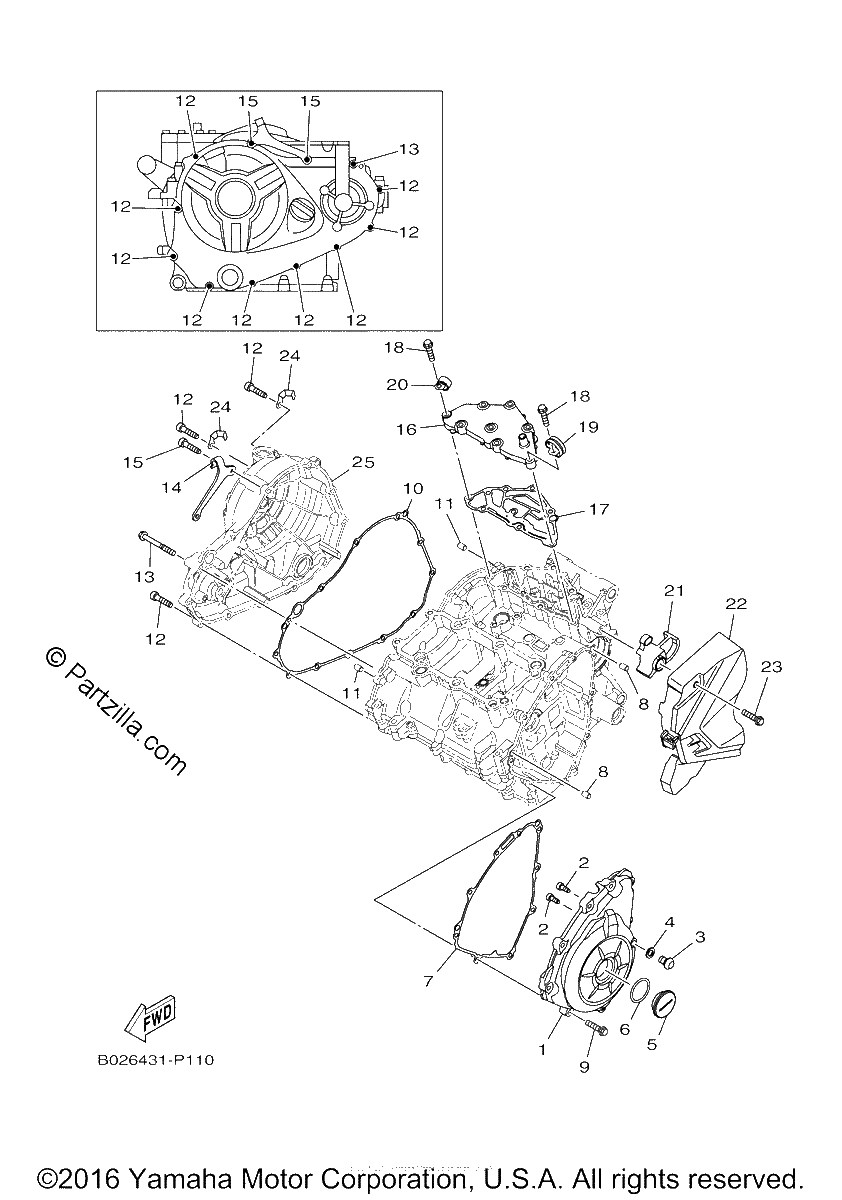

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1WD-E5411-00-00
COVER, CRANKCASE 1
$106.86¢53 431
1
#2
91317-05012-00
BOLT
$2.07¢1 037
1
#3
92014-08012-00
BOLT, BUTTON HEAD
$8.64¢4 319
1
#4
90430-08143-00
GASKET
$3.67¢1 838
1
#5
90340-32819-00
PLUG, STRAIGHT SCREW
$12.75¢6 375
1
#6
93210-32816-00
O-RING
$2.99¢1 494
1
#7
1WD-E5451-00-00
GASKET, CRANKCASE COVER 1
$6.14¢3 069
1
#8
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#9
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#10
1WD-E5461-00-00
GASKET, CRANKCASE COVER 2
$57.67¢28 838
1
#11
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#12
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#13
95022-06050-00
BOLT, FLANGE
$1.70¢850
1
#14
2MS-E5441-00-00
HOLDER, CLUTCH CABLE
$2.64¢1 319
1
#15
91317-06025-00
BOLT
$2.44¢1 219
1
#16
1WD-E5413-10-00
COVER
No Disponible
1
#17
1WD-E5462-00-00
GASKET, CRANKCASE COVER 3
$4.55¢2 275
1
#18
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#19
90462-08812-00
CLAMP
$0.76¢381
1
#20
90462-08806-00
CLAMP
$9.30¢4 650
1
#21
1WD-E5377-00-00
GUIDE, INLET
$10.77¢5 387
1
#22
1WD-E5418-00-00
COVER, CHAIN CASE
$34.51¢17 256
1
#23
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#24
90462-08225-00
CLAMP
$9.19¢4 594
1
#25
1WD-E5421-00-00
COVER, CRANKCASE 2
$132.49¢66 244
1
