SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

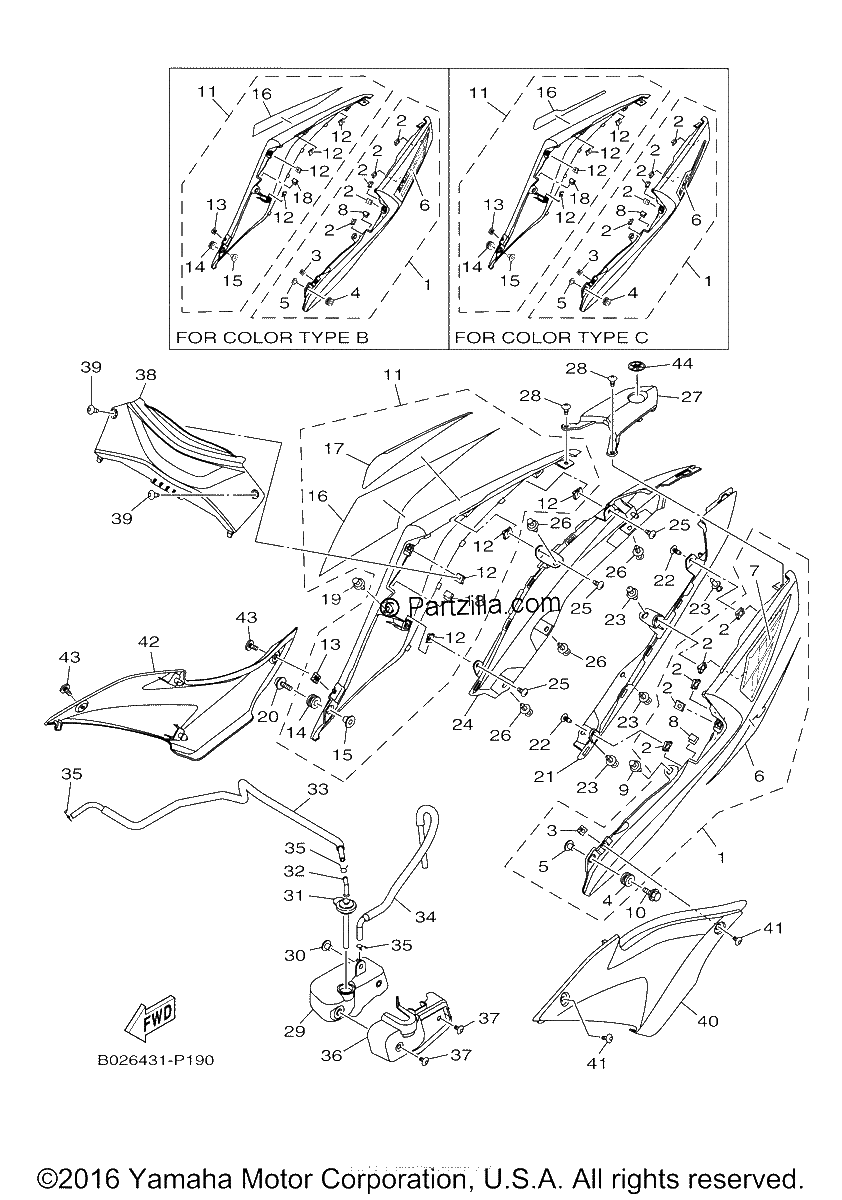

Diagrama de SIDE COVER

Repuestos

#0
2MS-F17F2-00-00
GRAPHIC, 2 | Use for Color Black Metallic X ( SMX / 0903 )
$1.93¢966
1
#0
2MS-F17F2-10-00
GRAPHIC, 2 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$0.83¢414
1
#0
2MS-F17F1-10-00
GRAPHIC, 1 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$0.60¢299
1
#0
2MS-F17F1-00-00
GRAPHIC, 1 | Use for Color Black Metallic X ( SMX / 0903 )
$1.16¢581
1
#0
1WD-XF172-30-P2
COVER, SIDE 2 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$48.94¢24 472
1
#0
1WD-XF172-30-P0
COVER, SIDE 2 | Use for Color Black Metallic X ( SMX / 0903 )
$35.75¢17 877
1
#0
1WD-F1731-00-P0
COVER, SIDE 3 | Use for Color Black Metallic X ( SMX / 0903 )
$40.01¢20 004
1
#0
1WD-F1731-00-P2
COVER, SIDE 3 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$43.02¢21 511
1
#0
1WD-XF171-30-P1
COVER, SIDE 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$52.08¢26 042
1
#0
1WD-XF171-30-P0
COVER, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$36.10¢18 049
1
#1
1WD-XF171-30-P2
COVER, SIDE 1 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$48.94¢24 472
1
#2
90183-05042-00
NUT, SPRING
$1.15¢575
1
#3
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#4
90480-12808-00
GROMMET
$2.71¢1 357
1
#5
90387-06899-00
COLLAR
$2.70¢1 351
1
#6
1WD-F17F1-00-00
GRAPHIC, 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$4.12¢2 059
1
#7
1WD-F17F3-00-00
GRAPHIC, 3 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$2.02¢1 012
1
#8
31B-F8307-00-00
SEAL
$2.44¢1 219
1
#9
90269-06081-00
RIVET
$6.23¢3 117
1
#10
90119-06096-00
BOLT,WITH WASHER
$3.38¢1 691
1
#11
1WD-XF172-30-P1
COVER, SIDE 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$44.25¢22 126
1
#12
90183-05042-00
NUT, SPRING
$1.15¢575
1
#13
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#14
90480-12808-00
GROMMET
$2.71¢1 357
1
#15
90387-06899-00
COLLAR
$2.70¢1 351
1
#16
1WD-F17F2-00-00
GRAPHIC, 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$5.72¢2 858
1
#17
1WD-F17F4-00-00
GRAPHIC, 4 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$2.02¢1 012
1
#18
31B-F8307-00-00
SEAL
$2.44¢1 219
1
#19
90269-06081-00
RIVET
$6.23¢3 117
1
#20
90119-06096-00
BOLT,WITH WASHER
$3.38¢1 691
1
#21
1WD-F171L-00-00
MOLE, SIDE COVER 1
$4.30¢2 151
1
#22
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#23
90269-06081-00
RIVET
$6.23¢3 117
1
#24
1WD-F171M-00-00
MOLE, SIDE COVER 2
$16.09¢8 044
1
#25
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#26
90269-06081-00
RIVET
$6.23¢3 117
1
#27
1WD-F171N-00-00
MOLE, SIDE COVER 3
$11.73¢5 865
1
#28
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#29
1WD-F1871-00-00
TANK, RECOVERY
$23.01¢11 506
1
#30
90387-06857-00
COLLAR
$1.18¢592
1
#31
1WD-F1875-00-00
CAP
$3.30¢1 650
1
#32
26H-21828-00-00
ELBOW
$24.05¢12 023
1
#33
1WD-F1816-00-00
PIPE 1
$11.49¢5 744
1
#34
1WD-F1817-00-00
PIPE 2
$7.28¢3 640
1
#35
90467-08003-00
CLIP
$6.90¢3 450
1
#36
1WD-F172W-00-00
COVER
$15.84¢7 918
1
#37
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#38
1WD-F1731-00-P1
COVER, SIDE 3 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$40.01¢20 004
1
#39
90160-05810-00
SCREW, ROUND TAPPING
$1.74¢868
1
#40
1WD-F171E-00-00
COVER, SIDE 5
$15.21¢7 607
1
#41
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#42
1WD-F171X-00-00
COVER, SIDE 6
$7.28¢3 640
1
#43
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#44
1PA-F836B-00-00
TUNING FORK MARK
$31.65¢15 824
1
